Hydraulic Hole Puncher  For metal ware cook ware hydraulic punching machine
Features Gallery Product Description Request A Quote
Features
Specifications
Function: Hole Punch For Metal Ware
Size Of Workpiece: ≤φ(140~300)mm×200mm (Dia.×H)
Thickness: ≤1.2mm
Hole Size: Dia.: φ2~φ8.2mm
Mouth Depth: 0~60mm
Motor (for The) Power: Hydraulic Pump Motor: 3kw×1, 16Mpa
Machine Size (Not Including The Conveyor Belt): 1200mm×720mm×1275mm (L×W×H)
Machine Weight: About 0.53T
High Light:

1.2mm Thickness Hydraulic Hole Puncher

,

Metal Ware Hydraulic Hole Puncher

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU, ISO
Model Number: YC8
Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 30-50 working days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Month
Product Description

Hydraulic Hole Puncher For metal ware cook ware hydraulic punching machine

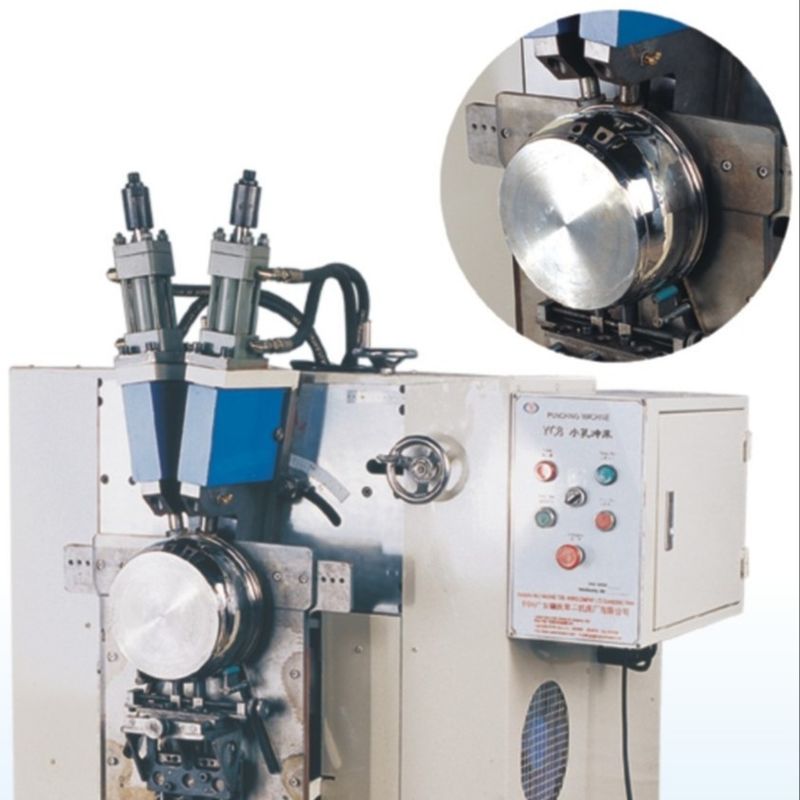

YC8 Hydraulic Hole Puncher



Product Description:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.



Quick Details:



1. For punching φ2~φ8mm hole on metal ware for later handle welding.

2. Can punch two holes at one time with certain distance and angle.

3. For difference size of hole just change the moulds, which is easier than normal puncher.

Specifications:



Main Technical Parameters∶
Model YC8
Function Hole punch for metal ware
Size of Workpiece

≤φ(140~300)mm×200mm (Dia.×H)

Thickness ≤0.8mm
Hole Size

Dia.: φ2~φ8.2mm

Holes distance: 32~150mm

Angle of hole: 0~35°

Hole center line and surface angle: -10°~+20°

Mouth depth 0~60mm
Motor (for the) Power

Hydraulic Pump Motor: 3kw×1, 16Mpa

Cooling blower: 35kw×2

Cooling Pump: 375w×1

Puch Hydraulic Cylinder

Dia.: φ40mm, Travel limit: 40mm, Pressure: 16Mpa

Max Blanking Pressure 20KN
Dimention

1200mm×720mm×1275mm (L×W×H)

Machine Weight About 0.53T
