Edge Trimming Machine 4-station Edge Cutting Trimming Beading Pressing Machine for cookware

1 set
MOQ
Negotiable
Price
Edge Trimming Machine 4-station Edge Cutting Trimming Beading Pressing Machine for cookware
Features Gallery Product Description Request A Quote
Features
Specifications
Function: Edge Cutting Trimming Beading & Pressing For Metal Ware
Size Of Workpiece: ≤φ325mm×300mm (Dia.×H)
Thickness: ≤0.8mm
Motor (for The) Power: Workpiece Motor: 4kw×2
Speed: Workpiece Speed: 28-140r/min (Adjustable)
Workpiece Holding: Vacuum Adsorption
Machine Size (Not Including The Conveyor Belt): 2500mm×1200mm×2300mm (L×W×H)
Machine Weight: About 2T
High Light:

140r/min Cookware Polishing Machine

,

Edge Cutting Cookware Polishing Machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU, ISO
Model Number: QXJY325-300
Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 30-50 working days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Year
Product Description

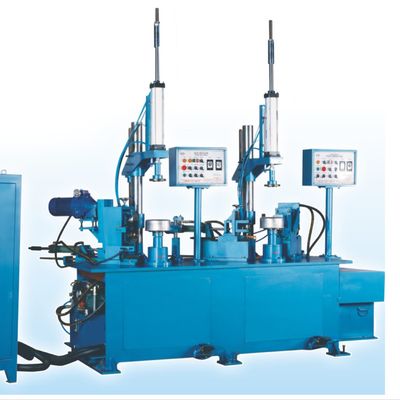

Edge Trimming Machine 4-station Edge Cutting Trimming Beading Pressing Machine for cookware

QXJY325-300 4-Stations Edge Cutting Trimming Beading & Pressing Machine



Product Description:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.



Quick Details:



1. Very user friendly, safe and high performance, suitable for cutting, trimming, beading & pressing edge of the metal wares.

2. It is semi-auto, which needs manually to load the work piece and auto form.

3. An ideal equipment for metal ware industry.



Specifications:



Main Technical Parameters∶
Model QXJY325-300
Function Edge Cutting Trimming Beading & Pressing for metal ware
Size of Workpiece ≤φ325mm×300mm (Dia.×H)
Thickness ≤0.8mm
Motor (for the) Power

Workpiece Motor: 4kw×2

Cutting Motor: 0.37kw×2

Hydraulic Station: 4kw×2

Speed

Workpiece Speed: 28-140r/min (Adjustable)

Cut: 21604/min (Adjustable)

Workpiece Holding Vacuum Adsorption
Dimention

2500mm×1200mm×2300mm (L×W×H)

Machine Weight About 2T





More details regarding the company:

Edge Trimming Machine 4-station Edge Cutting Trimming Beading Pressing Machine for cookware 0

Edge Trimming Machine 4-station Edge Cutting Trimming Beading Pressing Machine for cookware 1
Edge Trimming Machine 4-station Edge Cutting Trimming Beading Pressing Machine for cookware 2



Production Line:

Edge Trimming Machine 4-station Edge Cutting Trimming Beading Pressing Machine for cookware 3



Products that manufactured by our machines:

Edge Trimming Machine 4-station Edge Cutting Trimming Beading Pressing Machine for cookware 4Edge Trimming Machine 4-station Edge Cutting Trimming Beading Pressing Machine for cookware 5

Certifications:

Edge Trimming Machine 4-station Edge Cutting Trimming Beading Pressing Machine for cookware 6



Packing & Delivery:

Edge Trimming Machine 4-station Edge Cutting Trimming Beading Pressing Machine for cookware 7

Edge Trimming Machine 4-station Edge Cutting Trimming Beading Pressing Machine for cookware 8
