Auto Kitchen Ware Inner Beading Machine Pressing Machine stainless steel for pot

Detail Information

Place of Origin:

Guangdong, China

Certification:

CU, ISO

Function:

Edge Cutting Beading & Pressing For Metal Ware

Size Of Workpiece:

≤φ325mm×300mm (Dia.×H)

Thickness:

0.5~1.2mm

Motor (for The) Power:

Workpiece Motor: 4kw×1

Speed:

150~1200r/min (Adjustable)

Workpiece Holding:

Vacuum Adsorption

Dimention:

1400mm×1250mm×2800mm (L×W×H)

Weight:

About 0.8T

Packaging Details:

Seaworthy packing

Highlight:

Product Description

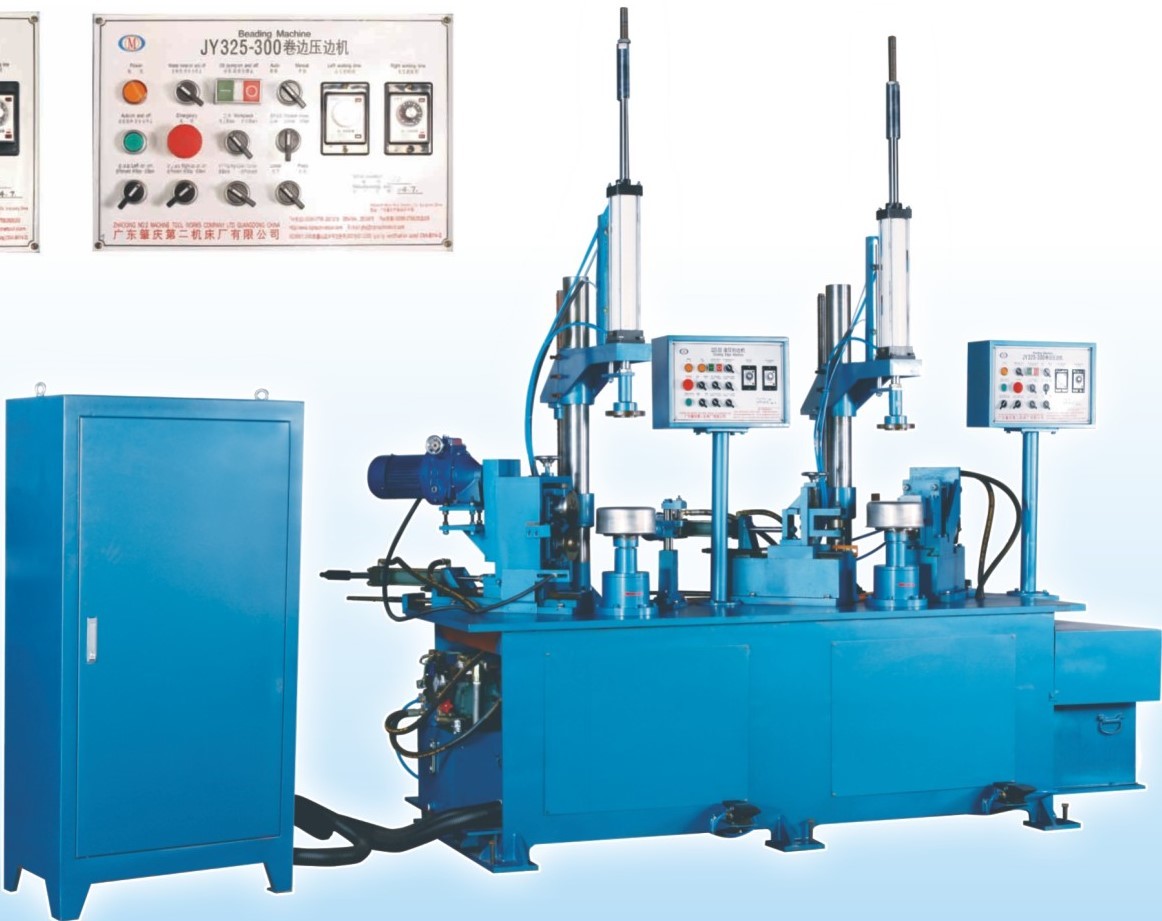

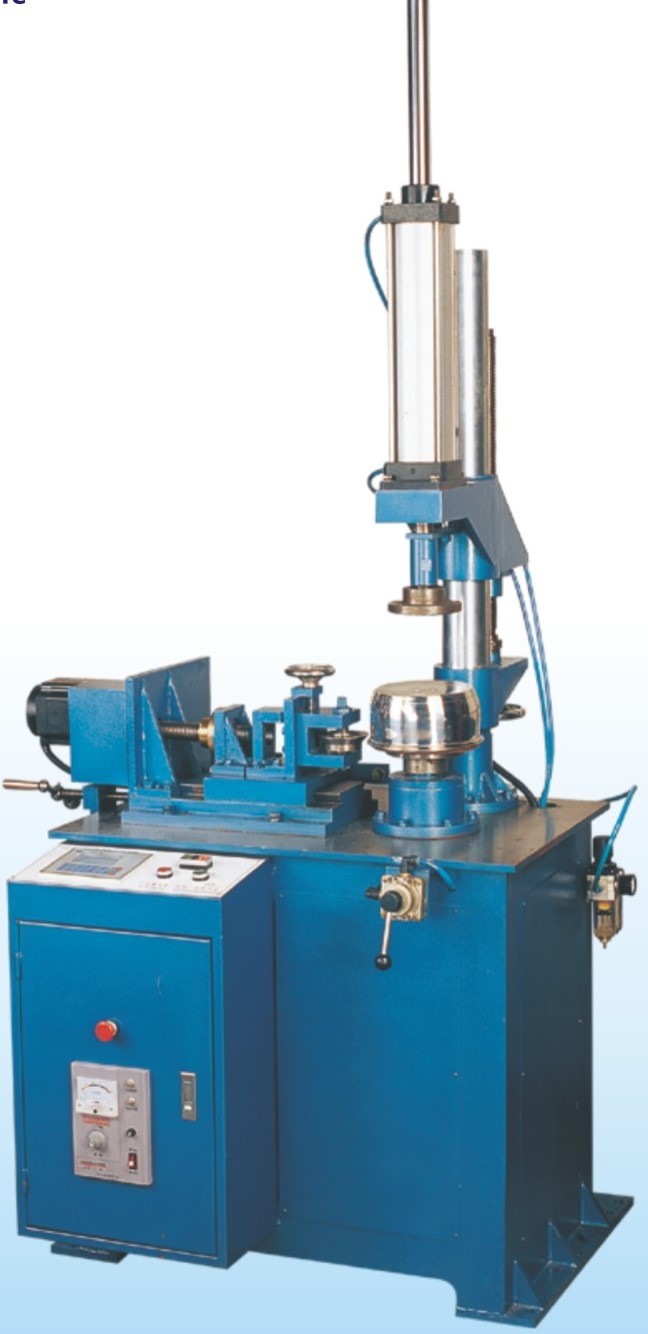

auto Kitchen Ware Inner Beading Machine Pressing Machine stainless steel for pot

Product Description:

Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.

Auto Kitchen Ware Inner Beading Machine Pressing Machine stainless steel for pot 0

Quick Details:

1. Semi-auto, which needs manually loading the workpiece and auto forming.

2. User friendly, safe and high performance, suitable for stainless steel, copper round shape ware, thickness of the ware is 0.5~1.2mm.

3. The machine can also apply to edge cutting.

Specifications:

Main Technical Parameters∶
Model	JYK325×300
Function	Edge cutting Beading & Pressing for metal ware
Size of Workpiece	≤φ325mm×300mm (Dia.×H)
Thickness	0.5~1.2mm
Motor (for the) Power	Workpiece Motor: 4kw×1
Speed	150~1200r/min (Adjustable)
Workpiece Holding	Vacuum Adsorption
Dimention	1400mm×1250mm×2800mm (L×W×H)
Machine Weight	About 0.8T
