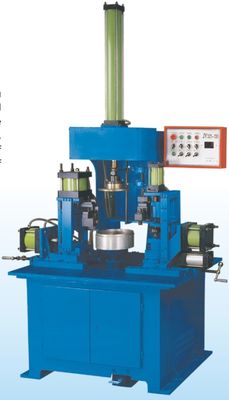

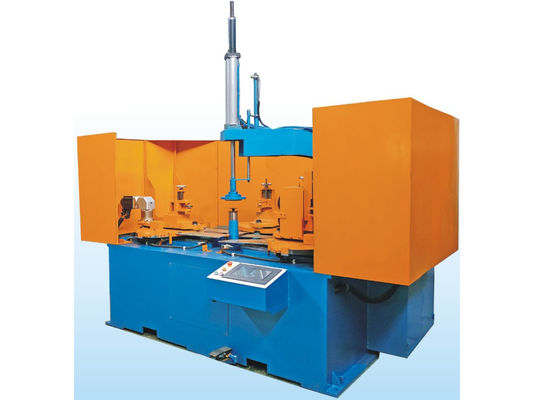

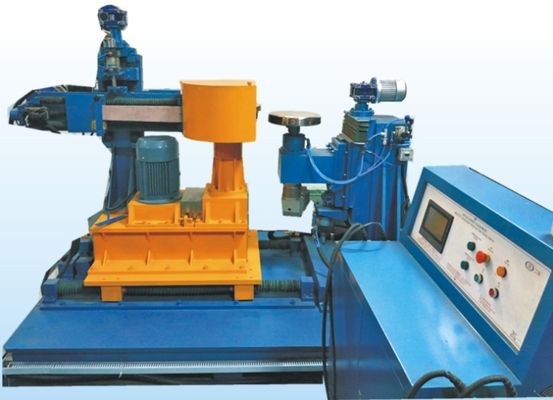

Polishing machine Outer round wire drawing rust removal mirror machine Automatic metal stainless steel
Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:
1. Used for the edge cutting, beading and pressing of the round workpieces.
2. Mainly for the edge cutting, edge beading and pressing of the metallic products with the oval, triangular, rectangular and gourd shapes, etc.
3. Controlled by the servo numerical control system for simple operation.
4. It can stored the product parameters for more than 200 types of the workpieces for purpose of being used in subsequent productions.
5. When the products of different sizes are replaced, it is only required to recall the stored product parameters on the touchscreen, so that the machine can be automatically adjusted to the ready status to start the production.
6. It significantly reduces the cost and improves the work efficiency by comparison with the conventional cutting, winding and flanging machine.
Specifications:
| Main Technical Parameters∶ | |
| Model | YX600 |
| Function | Oval, triangle, rectangle, gourd and other shaped metal products of the edge - cutting ,beading and pressing |
| Max. Size of Workpiece | Longest edge 600mm × H 300mm |
| Control System | NC Control System |
| Machine Power |
Total Power: About 10kw |
| Power Supply |
Three-phase Five Line, 380V±10% 50Hz (According to customer requirements) |
| Machine Size | 2280mm×2250mm×3200mm (L×W×H) |
| Machine Weight | About 3.5T |
More details regarding the company:
Production Line:

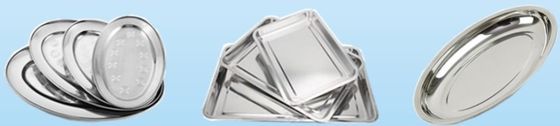

Products that manufactured by our machines:
