0.37kw Disk Type Multi-Stations Auto Polisher for Metal Ware Sanding Machine for Metal Ware/Cookware

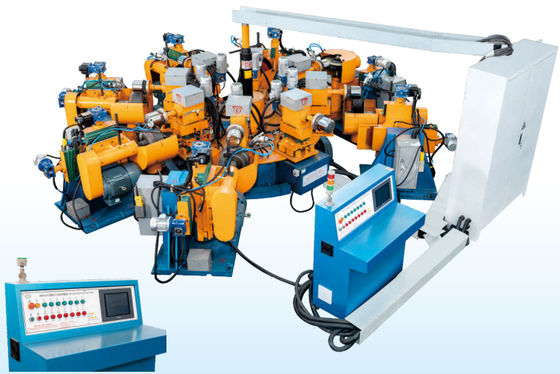

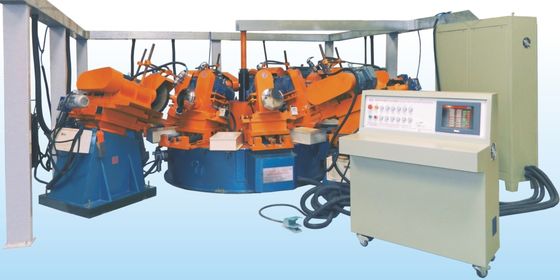

GMB4140-ZD Disk Type Multi-Stations Auto Cover Polisher
Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:
1. Developed from 4140 series cover polisher
2. Suitable for rough, mirror effect polishing, adapted PLC control module, inverter motor and auto compensation device for easy operation and stable performance
3. Be able to finish rough, fine and mirror polishing processes in one time.
4. A high effiency and ideal machine for the industry
Specifications:
| Main Technical Parameters∶ | |
| Model | GMB4140-ZD |
| Function | Outer polish for metal cover |
| Stations | ≤12 |
| Size of Workpiece | ≤φ300mm×100mm (Dia. ×H) |
| Size of Abrasive Wheel | ≤φ400mm (Dia.) |
| Motor (for the) Power | Abrasive Wheel Motor∶ 11kw/4kw Workpiece Motor∶ 0.75kw Compensate pressure motor∶0.37kw |
| Speed | Abrasive Wheel∶2160r/min Workpiece∶60~140r/min (Adjustable) |
| Waxed way | Automatic spray |
| Workpiece Holding | Vacuum Adsorption |
More details regarding the company:
Production Line:
Certifications:
Packing & Delivery:
