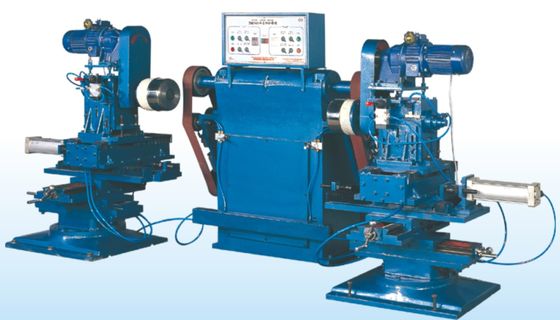

Outer Polishing Machine for Metal Cover/Cookware Cover Disk Type Multi-Stations Auto Cover Polisher

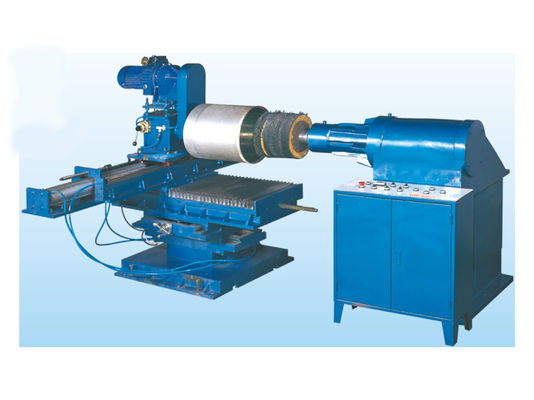

Φ600×600 Inner and Outer Polisher
Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:

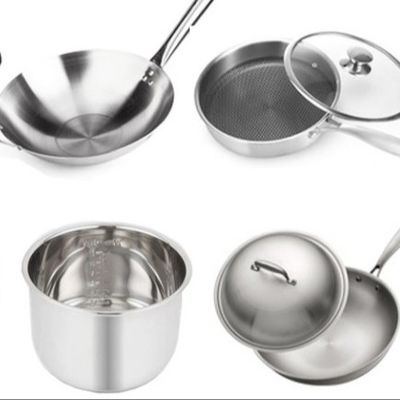

1. A new developed machine for processing round shape metal ware with dia. more than φ400mm.
2. It has high rigidity, easy operation, stable performance compared with old machines.
2. It uses linen, cloth or PVA material, which fix to the polishing shaft, then after shaping to fit the workpiece, can be used to process round shape metal ware.
3. The polishing result can be rough, fine polished or mirror polished.
Specifications:
| Main Technical Parameters∶ | |
| Model | Φ600×600 |
| Function | Inner and outer polish for metal ware |
| Size of Workpiece | ≤φ600mm×600mm (Dia. ×H) |
| Size of Abrasive Wheel | ≤φ400mm (Dia.) |
| Motor (for the) Power | Abrasive Wheel Motor∶ 11kw×1 Workpiece Motor∶ 1.5kw×1 |
| Speed | Abrasive Wheel∶2150r/min Workpiece∶28~140r/min (Adjustable) |
| Workpiece Holding | Vacuum Adsorption |
| Dimention | 3150mm×2100mm×1500mm (L×W×H) |
| Weight | About 2T |
