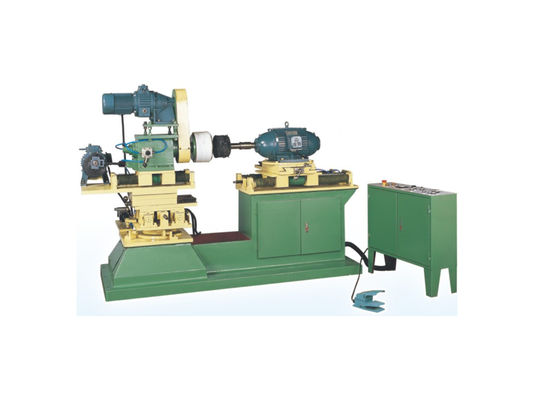

Inner and Outer Polisher for rick cooker/metal ware/pan/pot Inner Polishing Machine Outer Polishing Machine

1 set
MOQ
Negotiable
Price
Inner and Outer Polisher for rick cooker/metal ware/pan/pot Inner Polishing Machine Outer Polishing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Function: Inner Polish For Pan
Size Of Workpiece: ≤φ4000mm×(50-250)mm (Dia.×H)
Size Of Abrasive Wheel: ≤φ220mm (Dia.)
Motor (for The) Power: Workpiece Reciprocating Motor: 0.37kw×1
Speed: Workpiece: 28-140r/min (Adjustable)
Workpiece Holding: Vacuum Adsorption
Dimention: 2170mm×1880mm×1500mm (L×W×H)
Weight: About 1.2T
High Light:

Reciprocate Interior Cookware Polishing Machine

,

Inner Pot Cookware Polishing Machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU, ISO
Model Number: MB4220-A
Payment & Shipping Terms
Packaging Details: Seaworthy packing
Delivery Time: 30-50 working days
Payment Terms: L/C, T/T
Supply Ability: 50 Set/Sets per Year
Product Description

Inner and Outer Polisher for rick cooker/metal ware/pan/pot Inner Polishing Machine Outer Polishing Machine

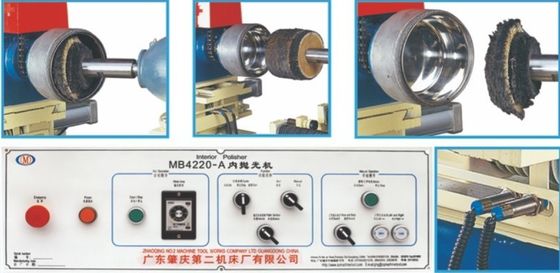

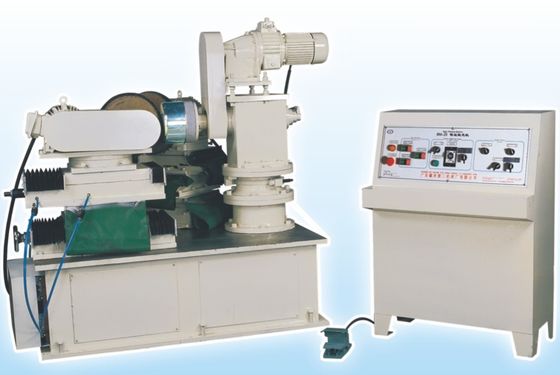

MB4220-ZD Disk Type Multi-Stations Auto Interior Polisher

Product Description:

Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.

Quick Details:

1. A kind of semi-automatic interior polisher

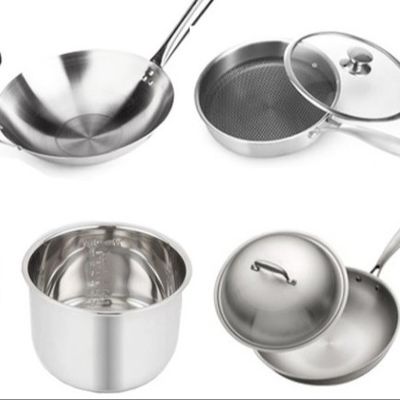

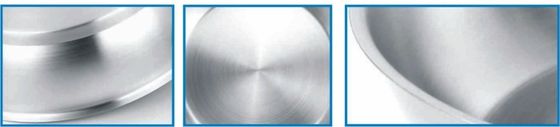

2. Mainly used to polish the interior side and t he interior bottom of round shape wares
3. 2 or 2 more interior polishers of this kind are assembled on one line to polish the interior side and the interior bottom of metal wares respectively.
4. A high effiency and ideal machine for the industry
5. The machine has been China Patent No.: 2007100269380

Specifications:


Main Technical Parameters∶
ModelMB4220-A
FunctionInner polish for pan
Size of Workpiece≤φ4000mm×(50-250)mm (Dia.×H)
Size of Abrasive Wheel≤φ220mm (Dia.)
Motor (for the) PowerAbrasive Wheel Motor∶ 7.5kw×1
Workpiece Motor∶ 0.75kw
×1


SpeedAbrasive Wheel∶2900r/min
Workpiece∶28~140r/min (Adjustable)
Workpiece HoldingVacuum Adsorption
Dimention2170mm×1880mm×1500mm (L×W×H)
WeightAbout 1.2T
