Industrialized Semi-Auto Stainless Steel Pot glazing Machine Utensil Surface Buffing Machine For Pan Side

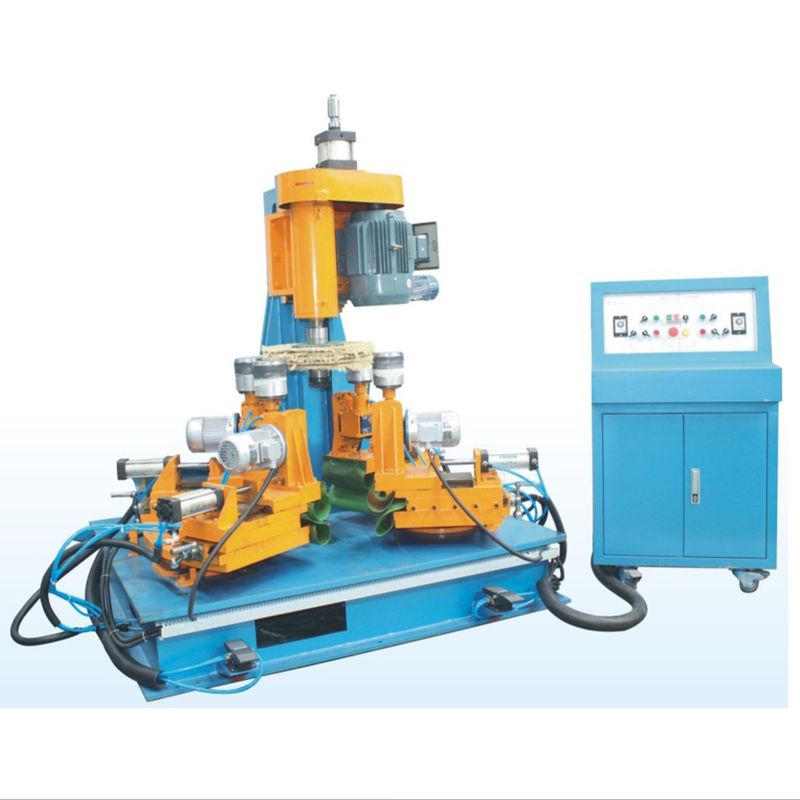

4SMB460/ Φ50*120 Four-station Semi-Auto Outer Polishing Machine (Side)
Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:
1. On the basis of the original series products, upgrading of independent innovation and development of replacement products.
2. Greatly upgraded working effiency compared to similar products at home and abroad and is in the leading position.
3. Designed with the integrated working table that allows the installation of four workpieces for external polishing.
4. Applicable for the polishing of external surface of various type of round metallic utensils.
5. Improves working effiency and saves manpower simultaneously.
Specifications:
| Main Technical Parameters∶ | |
| Model | 4SMB460/ Φ50*120 |
| Function | Outer polish for pan (Bottom) |
| Size of Workpiece |
≤φ120mm×120mm (Dia.×H) |
| Size of Abrasive Wheel | ≤φ400mm (Dia.) |
| Motor Power |
Abrasive Wheel Motor: 7.5kw ×1 |
| Speed |
Abrasive Wheel Speed: 2160r/min Workpiece Speed: 28-140r/min (Adjustable) |
| Workpiece Holding | Vacuum Adsorption |
| Dimention | 2100mm×2250mm×2000mm (L×W×H) |
| Weight | About 3T |
