High speed Outer Polishing Machine Vacuum Adsorption Cookware Polishing Machine for cooking pot

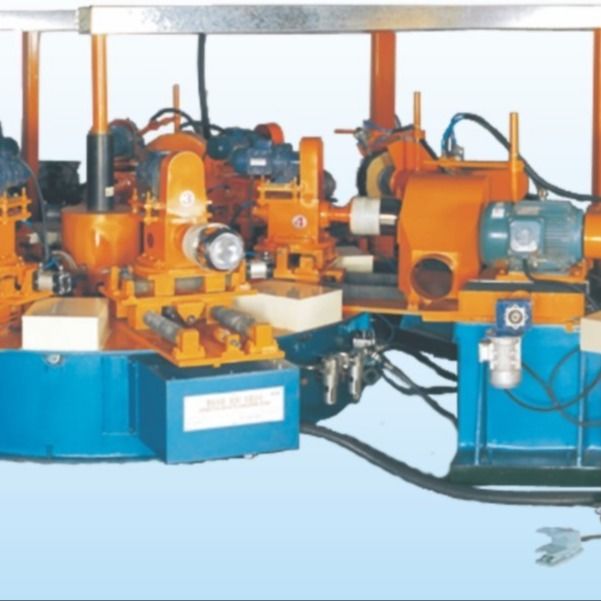

Disk Type Multi-Stations Auto Outer Polisher
Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:
1. Developed from 4140 series polisher
2. Suitable for rough, mirror effect polishing, adapted PLC control module, inverter motor and auto compensation device for easy operation and stable performance
3. Be able to finish rough, fine and mirror polishing processes in one time.
4. Energy saving from less polishing time
Specifications:
| Main Technical Parameters∶ | |
| Model | MB4140-ZD |
| Function | Outer polish for pan |
| Stations | ≤12 |
| Size of Workpiece | ≤φ320mm×260mm (Dia. ×H) |
| Size of Abrasive Wheel | ≤φ450mm×330mm (Dia.*Thickness) |
| Motor (for the) Power | Abrasive Wheel Motor∶ 11kw/7.5kw Workpiece Motor∶ 0.75kw Compensate pressure motor∶0.37kw |
| Speed | Abrasive Wheel∶2160r/min Workpiece∶60~140r/min (Adjustable) |
| Waxed way | Automatic spray |
| Workpiece Holding | Vacuum Adsorption |
More details regarding the company:

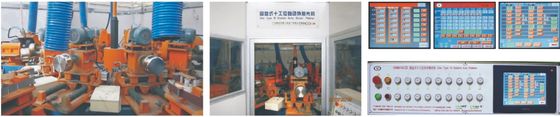

Production Line:
