Multi Station Automatic Die Casting Machine For Heating Element

1 set
MOQ
Negotiable
Price
Multi Station Automatic Die Casting Machine For Heating Element
Features Gallery Product Description Request A Quote
Features
Specifications
Slide Stroke (mm): 400
Return Force (kN): 2000 KN
Machine Type: Hydraulic Press Machine
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2200*2400*4200mm
Weight (T): 3.5 T
Motor Power (kw): 30 Kw
High Light:

Automatic Die Casting Machine Multi Station

,

Heating Element Automatic Die Casting Machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: QXJY325-300
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

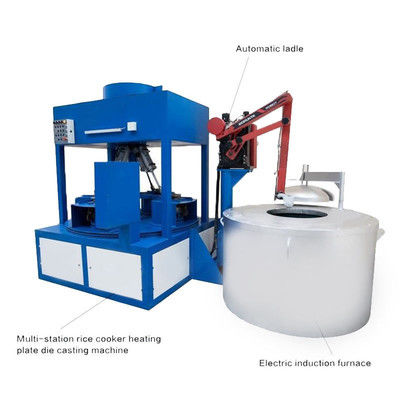

Aluminum Die Casting Machine Automatic Multi-station Rice Cooker Heating Plate Casting Machine



Product Description:



Multi-station rice cooker heating plate casting machine is used to cast heating element,especially for rice cooker heating plate.

Quick Details:



The fuselage adopts thesteel plate integral welded structure,with high rigidity
Royal pneumatic friction clutch-brake,large torgue transfer,small moment of inertia, easy installation and maintenance
Pneumatic componentsair source treatment twoconnectors,pressureregulating valve) adoptSMC product.
The transmission part is enclosedinside the fuselage,and the gears arelubricatedwith oil



Specifications:














Product
Advantages
With the design of turntable and manipulator, four sets of hollow heating plates with different sizes, powers and weights can be
produced at the same time.
High efficiency,it won’t take too much time to switch the mould. Four sets of heating plates of different sizes are produced at
the same time, and the production can reach 2500 PCs per shift
If the customer required single mold and huge productivity, we can customize it according to the customer's requirements, and
produce four sets of products of the same size, and one shift output can reach 2500 PCs. (You can either decided to use four same
molds or four different molds)
According to the customer's existing mold design, only minor mold changes can be made, without too much investment in the mold
According to the customer's mold design, the design of associated ejector pin can be customized, which can reduce the time for
operators to knock the thimble and improve the production efficiency.
One energy-saving electric melting and holding furnace produced by us can be work with two automatic centrifugal aluminum casting
machines at the same time. The output of this combination can be reach about 5000 PCs/shift, which can save energy maximally.



Advantages:



Multi Station Automatic Die Casting Machine For Heating Element 0Multi Station Automatic Die Casting Machine For Heating Element 1Multi Station Automatic Die Casting Machine For Heating Element 2Multi Station Automatic Die Casting Machine For Heating Element 3
