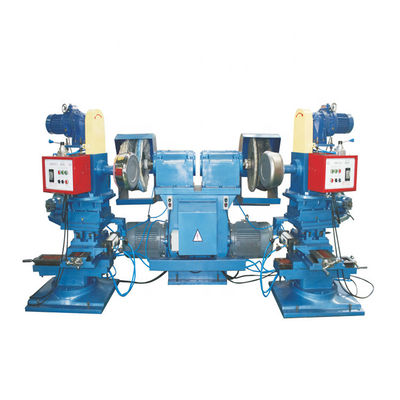

Custom Double Ended Polishing Machine Horizontal For Surface Polishing

1 set
MOQ
Negotiable
Price
Custom Double Ended Polishing Machine Horizontal For Surface Polishing
Features Gallery Product Description Request A Quote
Features
Specifications
Slide Stroke (mm): 400
Return Force (kN): 2000 KN
Machine Type: Hydraulic Press Machine
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2200*2400*4200mm
Weight (T): 3.5 T
Motor Power (kw): 30 Kw
High Light:

Custom Double Ended Polishing Machine

,

Double Ended Polishing Machine Horizontal

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: MB4140-ZD
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

Custom Double Ended Polishing Machine Horizontal For Surface Polishing



Product Description:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.



Quick Details:

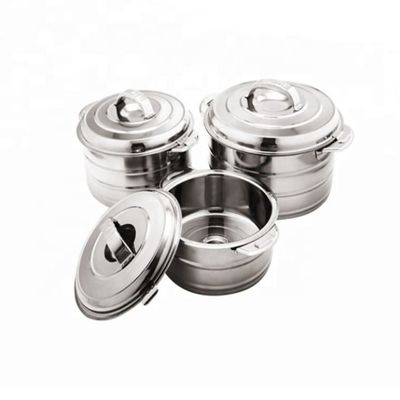

1. Suitable for any round metal items

2. Capacity: 2000-2500 polishes/ 8 hours (200 x 100mm, Dia. x H)

3. 30% more capacity from faster polishing speed

4. Save about 30% consumable polishing wheels & compounds

5. Energy saving from less polishing time

6. Main electric components: ,Elco, Delixi (all brands with CE certificate)

7. Have customers are using this model more than 15 years



1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

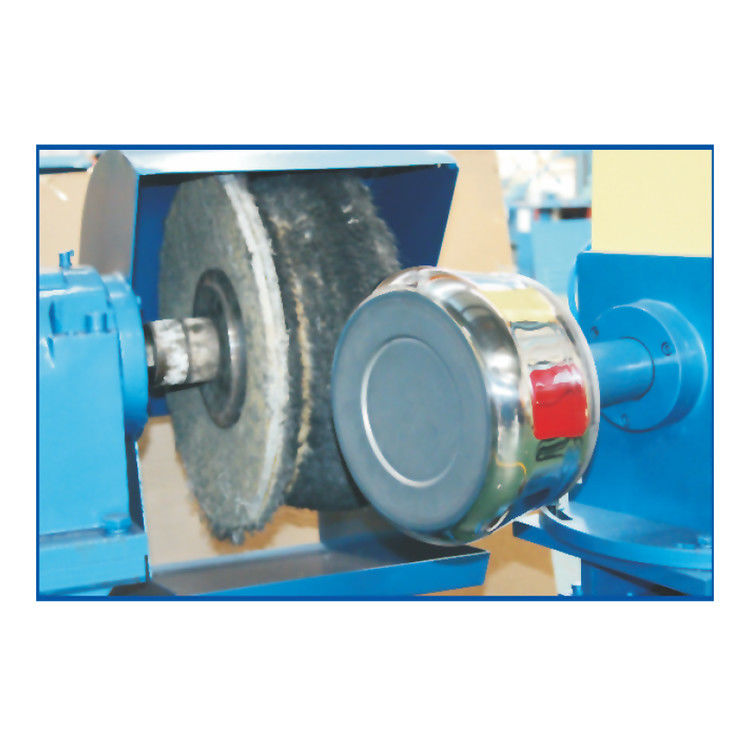

3) Continue pressure on goods surface to achieve smooth finish.
4) Running in a high automatization and intellectualization.
5) Apply a linker to connect with the dust collector, no pollution.



Specifications:



Main Technical Parameters
1. Function Polish outside wall
2. Size of workpiece ≤Φ400×300mm (Dia.×H)
3. Size of abrasive wheel ≤Φ400mm (Dia.)
4. Polishing wheel motor 11kw×2
5. Workpiece motor 0.75kw×2
6. Polishing wheel speed 2160RPM
7. Workpiece speed 28-140RPM (adjustable)
8. Weight about 2.3T
Place of Origin Guangdong;China (Mainland)
Brand Name STAR POWER
Condition New
Warranty 1 YEAR
Power (kW) 11
Applicable Industries Manufacturing Plant
Key Selling Points High-accuracy
Weight (KG) 2300
After Warranty Service Online support
Local Service Location none



Advantages:



Custom Double Ended Polishing Machine Horizontal For Surface Polishing 0Custom Double Ended Polishing Machine Horizontal For Surface Polishing 1Custom Double Ended Polishing Machine Horizontal For Surface Polishing 2
