Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:
1. Reduce (N-1) labours, save labour cost & easier management
2. Accurate positioning from index rotary table, servo motor drive & less vibration from strong casting body
3. 30% more capacity from faster polishing speed
4. Save about 30% consumable polishing wheels & compounds
5. Energy saving from less polishing time 6. Main electric components: Schneider, Elco, Delixi (all brands with CE certificate)
Specifications:

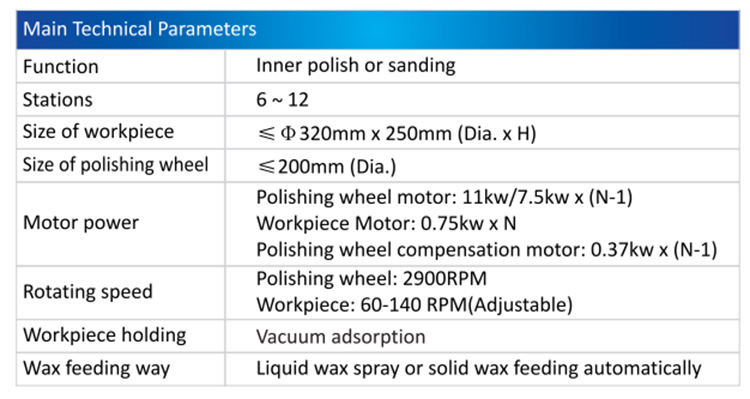

| Main Technical Parameters | |
| Function | Inner polish or sanding |
| Size of workpiece | ≤ Φ 320mm x 250mm(Dia. x H) |
| Size of abrasive wheel | ≤ Φ 200mm |
| Motor power | Abrasive wheel motor: 11kw/7.5kw |
| Workpiece Motor: 0.75kw | |
| Compensate pressure motor:0.37kw | |
| Speed | Abrasive wheel: 2900r/min |
| Workpiece:60-140r/min(Adjustable) | |
| Workpiece holding | Vacuum adsorption |
