Name: Bending machine For bowl’s bases
Brand: Foshan Star Power Technology Co.Ltd
SKU: WN100/3200
Price: 22,500.00 USD
Availability: InStock

Bending machine For bowl’s bases

1 set

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Type: CNC Bending Machine

Electric Assembly Power: ≈40KW

Average Energy Consumption: At 4KW / Hour

Nominal Pressure: 1000kN

Slide Stroke: 80mm

Power: 30kw

HS Code: 8462221000

Highlight:

bowl base bending machine

sheet metal bending machine

metal bowl base former

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Star Power

Certification: CU,ISO

Model Number: WN100/3200

Payment & Shipping Terms

Packaging Details: metal frame with film

Delivery Time: 1 month

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 100 Set/Sets per Month

Gallery

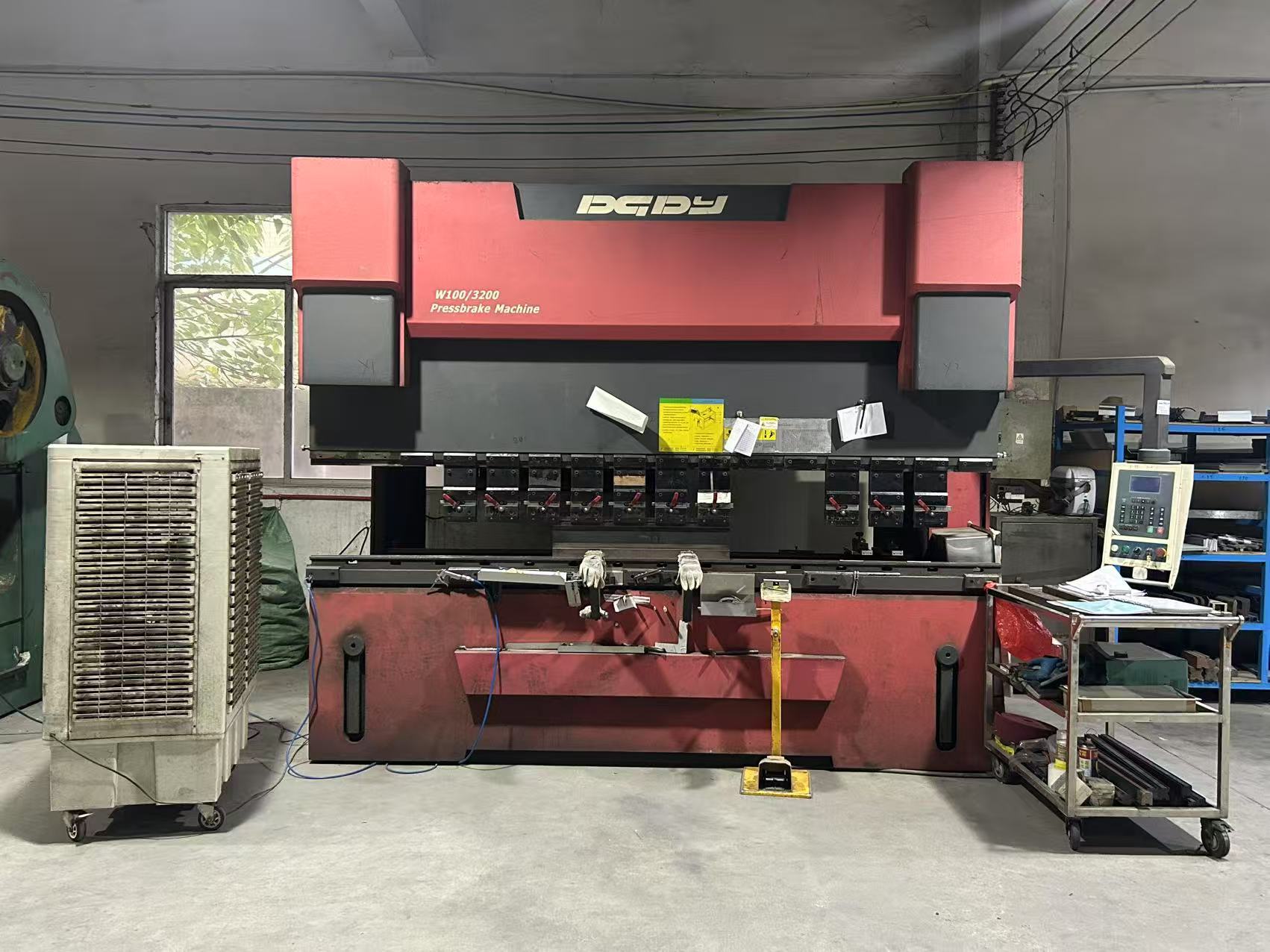

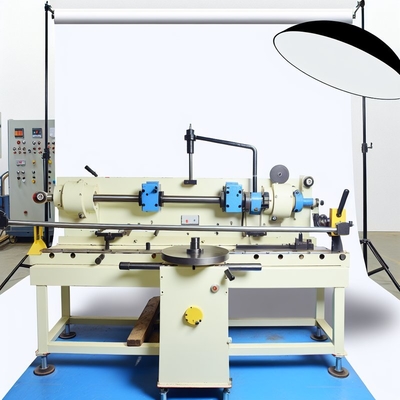

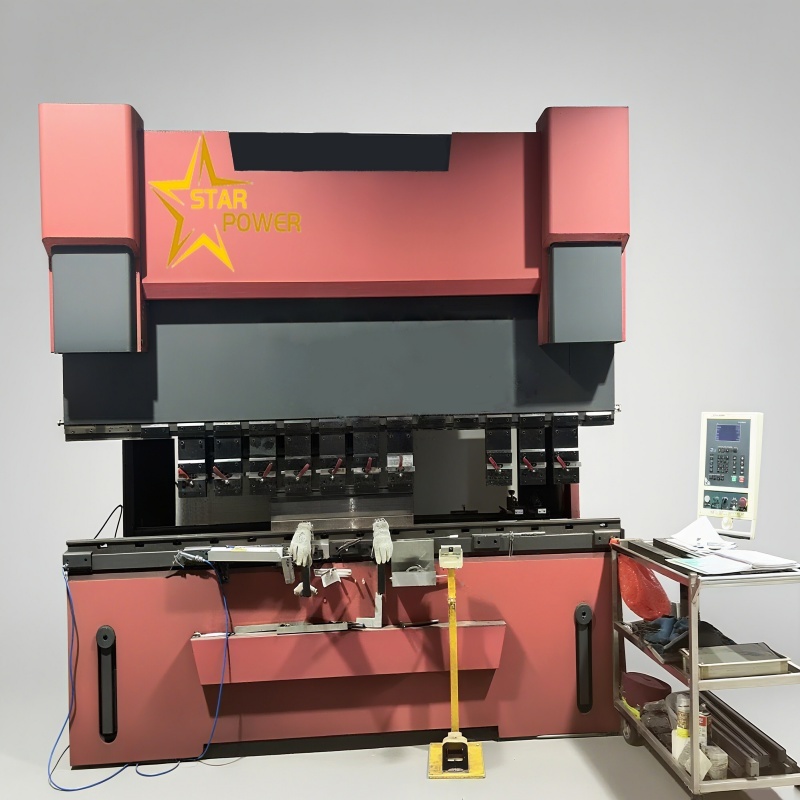

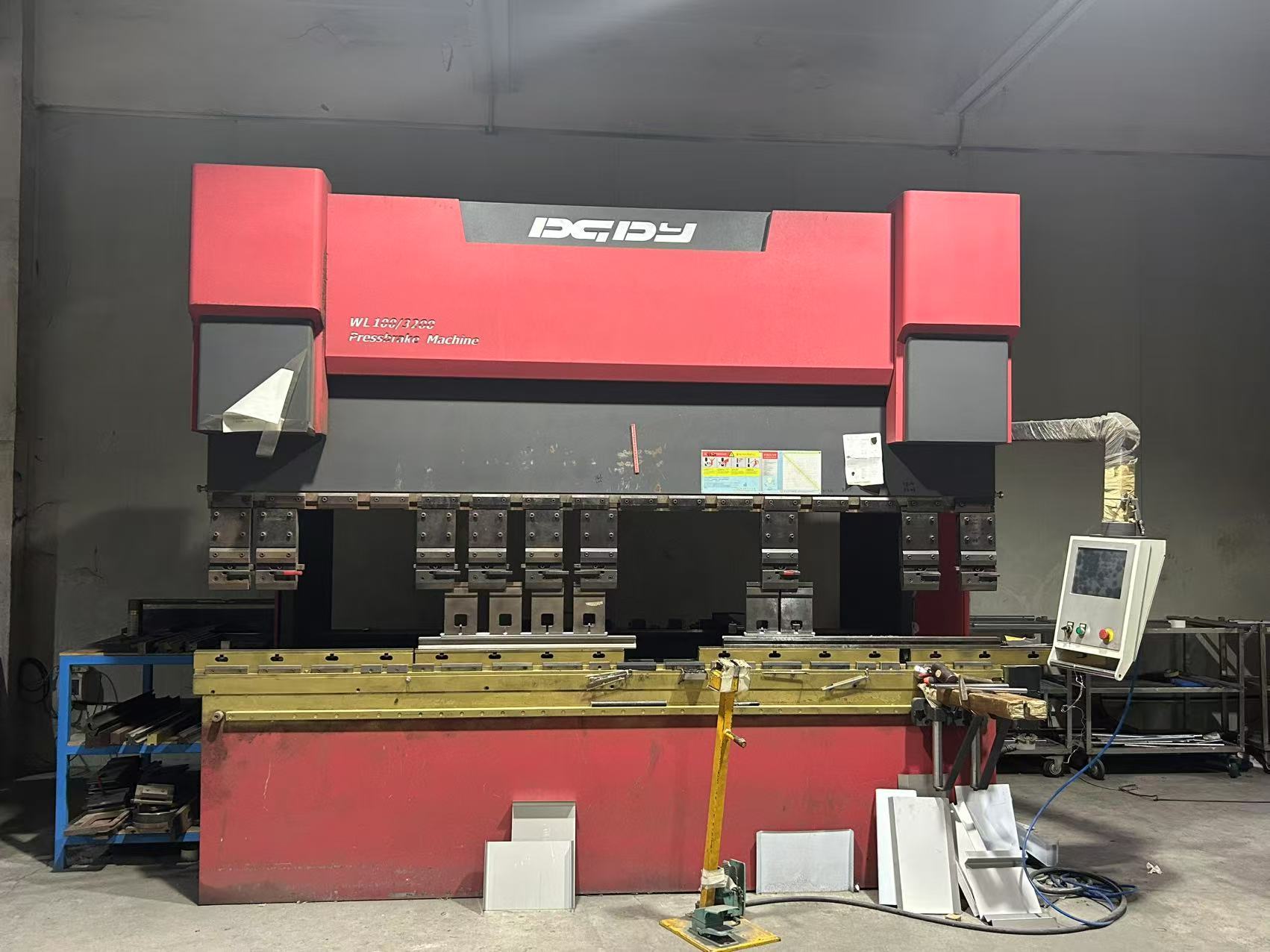

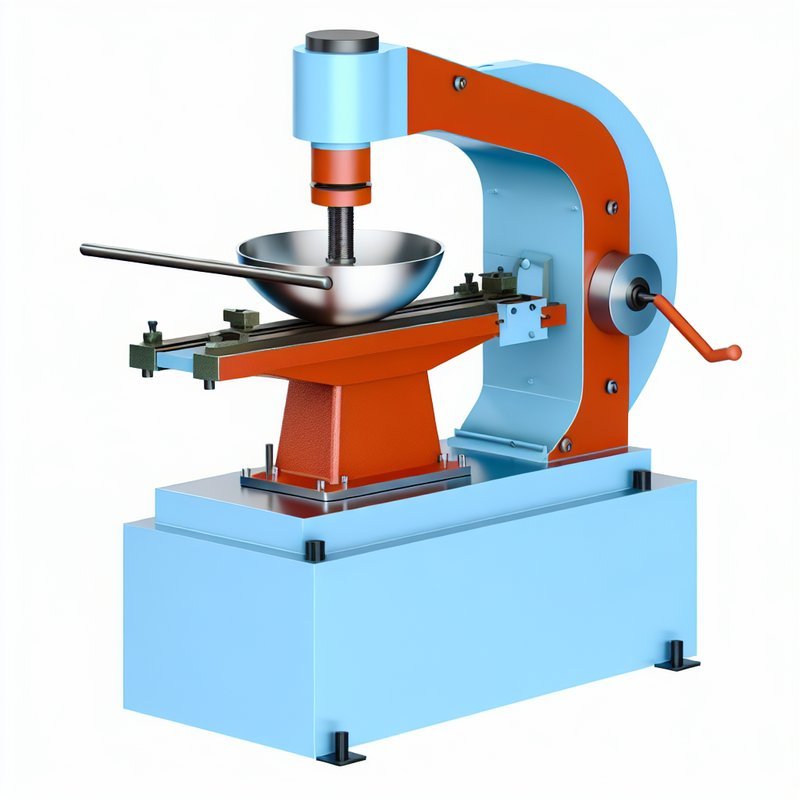

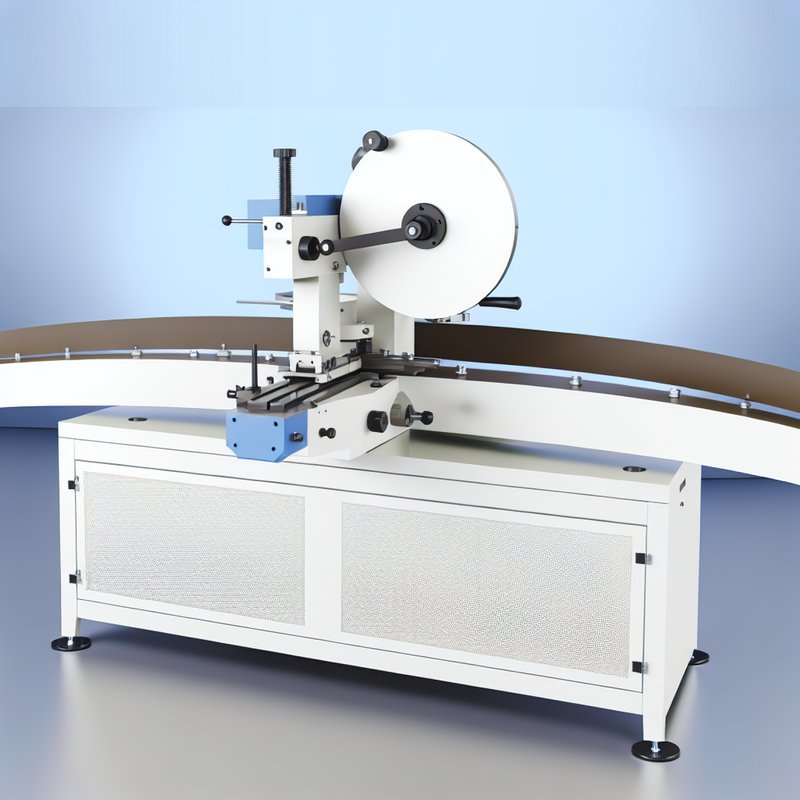

Bending machine For bowl’s bases

Product Description

CNC Bending Machine for Bowl Bases

Technical Specifications

Type	CNC Bending Machine
Electric Assembly Power	≈40KW
Average Energy Consumption	4KW/hour
Nominal Pressure	1000kN
Slide Stroke	80mm
Power	30KW
HS Code	8462221000

Key Performance Features

Pressure: 1000kN capacity handles thick, sturdy sheet metal with precision, preventing cracks or wrinkles
Workbench: Large dimensions (2800×1700mm) support stable bending of oversized materials
Opening Height: Accommodates thick materials and specialized molds for complex shapes
Slide Stroke: 80mm range enables deep bending angles and consistent results
Control System: High-precision CNC achieves micron-level accuracy for aerospace-grade requirements
Speed Optimization: Balanced processing rates maintain quality while maximizing efficiency

Production Process Specifications

Process	Equipment	Machine Dimensions	Floor Space	Power
Steel Coil Laser Cutting	Laser Cutter Line	12000×2600×1950mm	17×2.6m	45KW
Sheet Welding	Straight Seam Welding Machine	1400×1100×2000mm	1.4×1.1m	0.4KW
Sheet Grinding	Sheet Grinding Machine	2250×1550×1800mm	2.3×1.6m	3.2KW
Water Hole Punching	Deep Throat Press Machine (40T)	1500×1200×2000mm	1.5×1.2m	4KW
Prebending Punching	Deep Throat Press Machine (63T)	1700×1400×2200mm	1.7×1.4m	4KW
Water Line Pressing	Bending Machine (30T-1600MM)	2600×1400×2000mm	2.6×1.4m	3KW
Sink Base Bending	Bending Machine (63T-2500MM)	2800×1700×2350mm	2.8×1.7m	5.5KW

Total floor space including operational clearance: >65m (Length) × 10m (Width)

Equipment Process Flow

Process	Equipment Type	Specific Machines
Cutting	Laser Cutting	Customizable systems
Forming	Seam/Corner Pressing	Integrated seam and corner pressing machines
Stamping	Press Machines	Water hole punching, Prebending punches
Bending	CNC Bending	Bowl shape forming, Water line pressing
Finishing	Grinding/Polishing	Automatic rough/fine polishing, Edge rounding
