Frying Pan Hydraulic Forming Cookware Production Line 220 Ton High Precision Press Machine

Brand Name:	Star Power
Model Number:	YZ28G0220T
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	80 Set/Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, ISO 9001

Machine Type:

Four-column Three-beam Hydraulic Press

Rim Forming:

Rolled In A Single Pass

Capacity:

18-22 Pcs/min

System:

Servo With Bottom Dead Centre Cushioning

Voltage:

380V/220V Optional

Dimension (L*W*H):

2200*2200*4000mm

Die Inserts:

POM And Nylon Protection Faces

Warranty:

1 Year

Packaging Details:

metal frame with film, dies in foam lined case

Highlight:

Frying Pan Forming Line

Pan Hydraulic Press

Precision Forming Machine

Product Description

Frying Pan Hydraulic Forming Cookware Production Line 220 Ton High Precision Press Machine

Key Specifications

Attribute	Value
Working Force	2200 kN
Pan Diameter Range	200-320 mm
Pan Depth	40-80 mm
Slide Stroke (mm)	450
Motor Power (kw)	22 kw
Weight (T)	3.8 T

Product Overview

A 220 ton line focused on frying pan and skillet bodies from 200 mm to 320 mm. The ram slows before bottom dead centre so pre coated blanks keep their surface, and the rim is rolled in the same pass that forms the pan wall.

Packaging & Protection

Press and tooling are packed separately: the frame on a steel pallet with waterproof film, and dies in a foam lined case to protect polished forming surfaces.

Key Features

Rim rolling station forms and curls the pan edge in one pass on the same frame
Bottom dead centre cushioning protects coating films on pre coated pan blanks
Hardened die inserts with POM and nylon faces avoid scratching the pan interior
Quick release die clamps cut size changeover between 240 mm and 320 mm pans to 25 minutes
Servo driven ram with adjustable speed for aluminum and pressed steel pans
Photoelectric guard and foot pedal with dual circuit safety relay

Technical Specifications

Machine Type	Four-column Three-beam Hydraulic Press
Rim Forming	Rolled in a single pass
Capacity	18-22 pcs/min
System	Servo with bottom dead centre cushioning
Voltage	380V/220V Optional
Dimension (LWH)	220022004000mm
Die Inserts	POM and nylon protection faces
Warranty	1 Year

Operational Advantages

Rim rolled in one pass with the wall
Coating safe bottom dead centre cushioning
Size changeover in 25 minutes
18-22 pcs/min steady output

Application Scenarios

Suitable for frying pan, skillet, crepe pan and griddle producers, including plants that form pan bodies before an automatic non stick coating line.

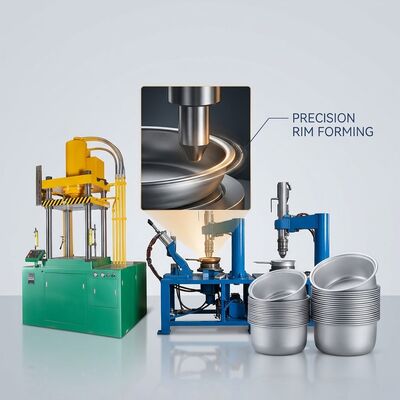

Product Images

Support & Services

Installation guidance, commissioning support and operator training arranged by our engineering team
12 month warranty on core components including motor, pump, PLC and hydraulic valves
Spare parts stocked for fast dispatch and remote diagnostics through video inspection
