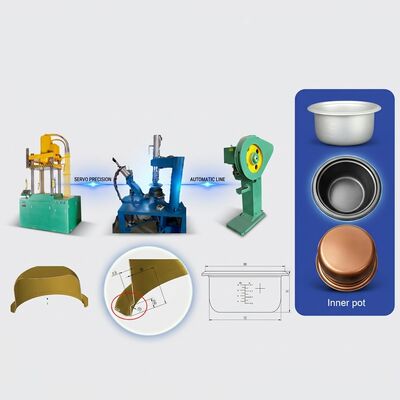

Automatic Aluminum Circle Blanking Cookware Production Line 100 Ton Servo Hydraulic Press Machine

This blanking line pairs a 100 ton servo hydraulic press with a zigzag nesting feeder that alternates blank positions between strokes, so aluminum and stainless coil is converted into round discs for pot and pan bodies with scrap loss held below 8 percent.

• Zigzag nesting feeder lifts material yield by up to 22 percent compared with straight row blanking
• Servo feed rolls hold strip position within 0.1 mm at 25 strokes per minute
• Hardened blanking die frame with quick change cassette for 200 mm to 400 mm discs
• Skeleton scrap cutter built into the die shoe discharges waste automatically
• Two hand start plus light curtain guarding across the feed opening
• Independent hydraulic power unit keeps oil temperature under 55 C during continuous running

• Nesting driven material savings on every coil
• 0.1 mm feed repeatability at full speed
• Tooling changeover under 30 minutes
• Low noise blanking below 82 dB

Suited to cookware plants that blank discs for rice cooker bodies, frying pans, basins and pressure cooker shells, as well as service centers that supply semi finished blanks to smaller workshops.

• Installation guidance, commissioning support and operator training arranged by our engineering team
• 12 month warranty on core components including motor, pump, PLC and hydraulic valves
• Spare parts stocked for fast dispatch and remote diagnostics through video inspection
