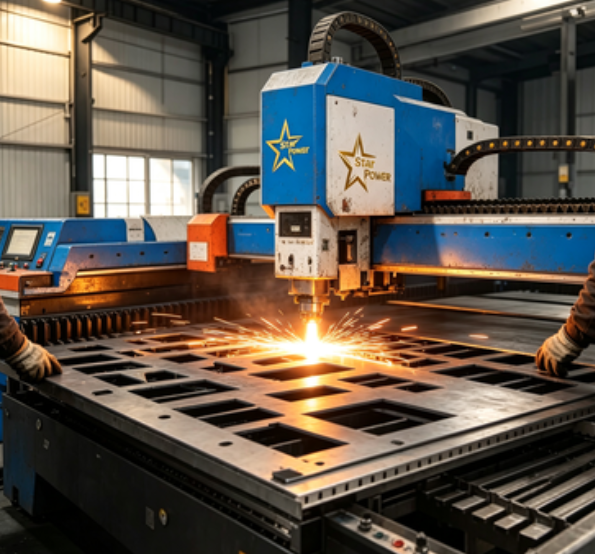

Advanced CNC Fiber Laser Cutting Machine for Stainless Steel Profiles

Name: Advanced CNC Fiber Laser Cutting Machine for Stainless Steel Profiles
Brand: Foshan Star Power Technology Co.Ltd
SKU: 3015
Price: 52,500.00 USD
Availability: InStock

Brand Name:	Star Power
Model Number:	3015
MOQ:	≥1
Price:	35000-70000
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	50units/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Cooling Method:

Air Cooling

Applicable Materials:

Various Types Of Metals

Noise Level:

Low

Controlsystem:

PLC Control With Touch Screen

Function:

To Knurle The Surface Of Tableware

Centrifugal Fan:

CC Laser

Colour:

White

Weight:

10 Tons

Remarks:

Customized Design Available

Control System:

PLC

Power:

100kw, 300KHz, 380V/440V

Surfacetreatment:

Polishing, Coating, Non-stick

Maximum Laser Power:

3000W

Product Type:

Production Line

Work Efficiency:

80 Mm/s

Ejection Capacity:

30KN

Energyconsumption:

15 KW

Packaging Details:

1400×1500×1700cm

Highlight:

CNC fiber laser cutting machine

stainless steel laser cutter

laser cutting machine for profiles

Product Description

Basic Info.

Model NO.

3015

Application

Home Appliance, Environmental Equipment, Agriculture Machinery, Food Machinery

Cooling System

Air Cooling

Technical Class

Continuous Wave Laser

Applicable Material

Metal

Structure Type

Gantry Type

Laser Classification

Gaseous Laser

Laser Technology

Laser Fusion Cutting

CNC System (Including Control Software)

Fscut 2000e

Aotomatic Following System

Fscut

Databaser of Cutting Processes

Star Power Laser

Laser Generator System

Max 3000W

Manual Laser Cutting Head

Raytools

High-Flex Cable Energy Chains, etc

China

Remote Control Handle

Cc Laser

Transport Package

Film

Specification

3000*1500

Trademark

Star Power

Origin

China

HS Code

8456110090

Production Capacity

50units/Month

3000W steel coil fiber laser cutting machine Sheet metal processing machine line

It's made up of three parts:

A :steel coil laser cutting machine
B :decoiler
C:1.6 m leveler

Main technical specifications and parameters of laser cutter:

laser wave length	1064nm
Maximum laser power	3000W
Effective processing area	4000mm*1500mm
The X / Y axis repeat positioning accuracy	Soil is 0.02mm
Maximum positioning speed	100m/min
X / Y axis maximum acceleration	1.0G
Support graphics format	DXF, etc. (supporting Auto CAD software, CorelDraw software)
Power consumption of the whole machine:	19KW (3000W laser)
Power supply requirements	Three-phase five-line AC 380V, 50Hz, 60A
Appearance size	Depending on the machine

Equipment parameters of the 8-ton decoiler

Equipment parameters of the 8-ton decoiler
device name	Hydraulic rolling machine	type	model
configure	1	Open winder (with pneumatic pressure arm, pneumatic brake)	8T
configure	2	Hydraulic-related accessories and hydraulic centralized control station	8T
Relevant technical parameters	The host is rated power	4kw / 380V (Shanghai Bozhou), PM250 reducer
	Electrical control system	Adopt three crystal frequency converter (5.5kw), and domestic Zhengtai electric appliance control parts, frequency converter
	Feed speed	0-20m/min
	Main machine box plate thickness	12mm steel plate welding
	The frame body	The base is 300H national standard I-steel
	Punch spindle	Made of seamless steel pipe car with shaft diameter φ 194 * 45mm
	Support mode	Manual support
	hydraulic jack	Raise the cylinder diameter 125mm (add 1 cylinder rotary connection head)
	Support material arm increase and tightening method	Support lip support (4 supports)
	Maximum material width of the roll material	0-1500mm
	Internal diameter range of the rolling material	φ 470-530, ± 20mm with curved plate
	The maximum outer diameter of the coil	1350mm
	Volume thickness	0.15-0.5mm
	Maximum bearing weight of open roll roll	Within 8 tons
	Power and model of the hydraulic station motor	3kw / 380V (pump valve is Beijing Ward brand)
	Overall dimensions (m)	Length 2.9 * 1.5 m wide * 1.75 m high
	The weight of the equipment itself	About 2.4 tons

1.6 m leveler configuration sheet

Equipment size:	Length: 2000mm width: 2500mm height: 1300mm
power of motor:	7.5KW Motor drive
Equipment base,	Square pipe welding, iron plate box
Kaiping speed:	About 2-15 m / minute
Feed width:	1600mm
Vertical plate thickness:	50mm
driving mode,	Gear drive, milling line cutting bearing position, high precision compression, double seal Harbin bearing.
Rolling shaft size:	115mm
Roller processing method:	Material 45 # steel solid shaft heat treatment, fine car, fine grinding, the surface of electroplating plating hard performance. Prevent rust and scratch the plate.
Number of rollers:	13 Roots
Pressure thickness:	0.5mm-2.0mm Thick cold-rolled plate 0.5-2.0mm thick stainless steel plate
Open thickness adjustment mode:	The size of the bilateral clearance is the same.
Feed and discharge:	Reinforce and thicken the hand feed table to adjust the feed width and prevent the plate from deviation. Feed table of feeding outlet.
flow of work:	Feed guide-roll pressure open-finished product discharge

Product Parameters

Equipped with laser power	1000W-6000W
Processing area	3000*1500mm
Maximum speed	100m/min
positioning accuracy	±0.03mm/m
Repeat positioning accuracy	±0.03mm/m

Our Advantages

Foshan is a famous metal manufacturing city with mature and advanced machine technology and reasonable prices,We focus on providing kitchen supplies production solutions, including providing production machines, plant layout, production technology output, for you to save worry, labor and money, we wholeheartedly escort your career success.

After Sales Service

Sufficient spare parts inventory: provide users with complete parts inventory of parts, any parts, vulnerable parts can be replaced in time, to escort the daily production of users.

Provide 7*24 hours of after-sales online service, maximize the guarantee of users' daily production plan, after-sales problems worry worry.

Lifetime service: establish the unique coded user file of the equipment, track and record the applicable details of the equipment, and provide lifelong maintenance service for cooperative users.
