Features

Specifications

Model NO.: J21S-40T

Type: Deep Throat Punching Machine

Punch Shape: Open Punch

Slider Movement: Single Action

Slider Drive Mechanism: Crank Press

Controlling Mode: Artificial

Automatic Grade: Manual

Power Source: Electric

Precision: High Precision

Condition: New

Nominal Pressur: 400kn

Slide Stroke: 100mm

Max Closing Height: 330mm

Workbench Size Front And Back*Leftandrig: 640*420mm

Transport Package: Film

Specification: 40T

Trademark: Star Power

Origin: China

HS Code: 8462490000

Production Capacity: 50units/Month

Highlight:

deep throat press machine for handmade sink

kitchen sink punching water hole machine

handmade sink water hole press machine

Basic Infomation

Certification: CE, ISO 9001

Payment & Shipping Terms

Gallery

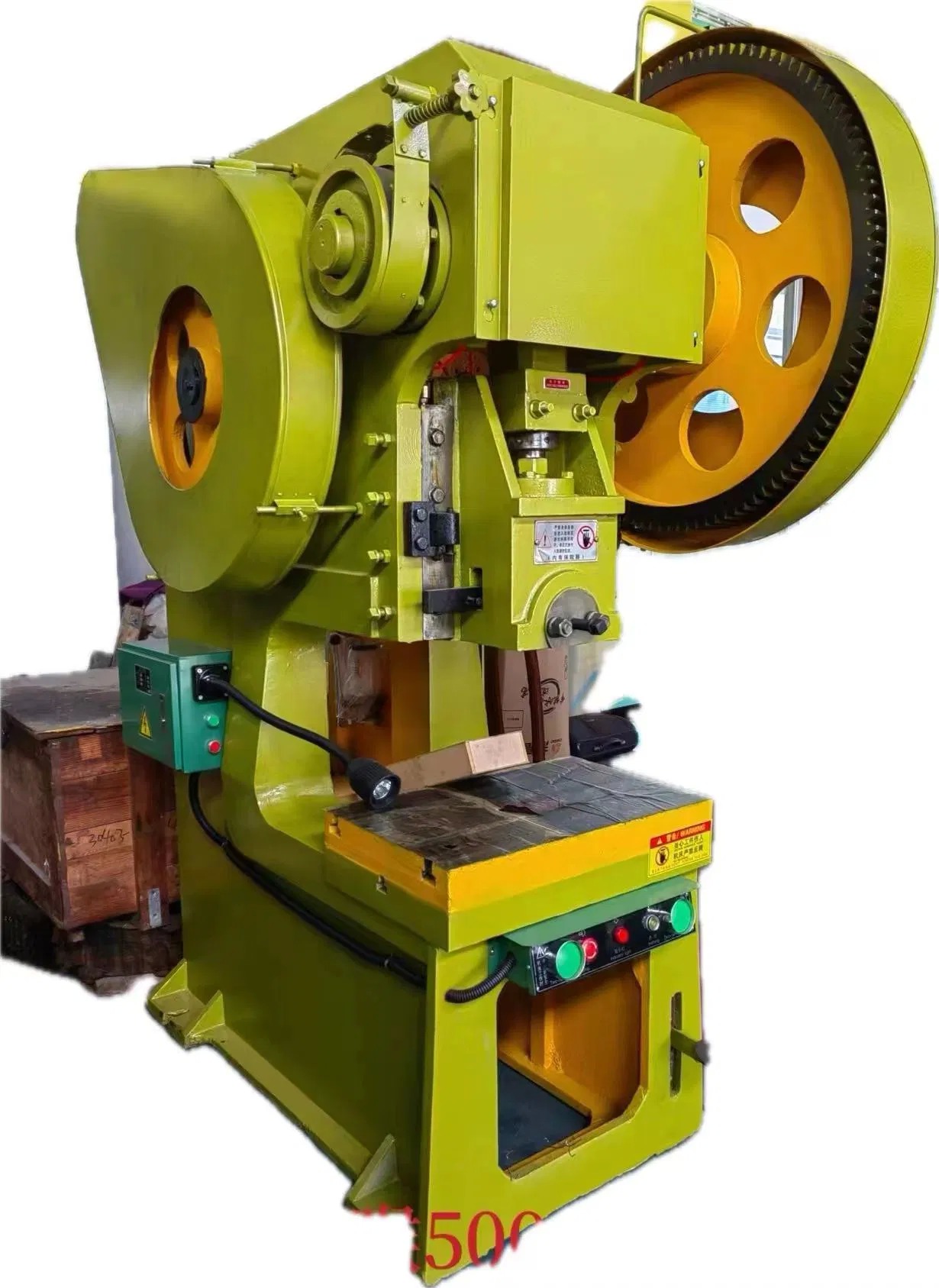

Deep Throat Press Machine for Punching Water Hole of Handmade Sink

Product Description

Deep throat press machine for punching water hole of handmade sink.We can provide supporting molds
Working principle and usage of presses
This press is crank as a working mechanism,crank for the steel,so the movement of the slider is mandatory,slider per minute trips and slide
motion curve is constant.
The pressure machine is suitable for cutting,punching,blanking,bending and shallow drawing,stamping,but it does not apply to printed works.
When working in all kinds of stamping presses,stamping force required (including RMA)is less than the maximum nominal power of the press, so as not to damage the parts may be calculated by reference to the relevant information.

Deep Throat Press Machine for Punching Water Hole of Handmade Sink 0

NO.	Name	Unit	Specification
1	Nominal Pressur	Kn	400
2	Slide Stroke	mm	100
3	Number of Stroke	Times/min	45
4	Max Closing Height	mm	330
5	Distance adjustment betweenslider bottom and worktable	mm	50
6	Distance from slider center to body	mm	500
7	Workbench Size front and back*left and right	mm	640*420
8	Shouk Dimension diameter*depth	mm	50
9	Thickness of the Wokbench	mm	75
10	Blanking hole	Mm	160
11	Motor power	kw	4

Foshan is a famous metal manufacturing city with mature and advanced machine technology and reasonable prices,We focus on providing kitchen supplies production solutions, including providing production machines, plant layout, production technology output, for you to save worry, labor and money, we wholeheartedly escort your career success.

Sufficient spare parts inventory: provide users with complete parts inventory of parts, any parts, vulnerable parts can be replaced in time, to escort the daily production of users.

Provide 7*24 hours of after-sales online service, maximize the guarantee of users' daily production plan, after-sales problems worry worry.

Lifetime service: establish the unique coded user file of the equipment, track and record the applicable details of the equipment, and provide lifelong maintenance service for cooperative users.
