100 Ton Hydraulic Double-Action Stamping Press for Metal Sheets

1 set
MOQ
Negotiable
Price
100 Ton Hydraulic Double-Action Stamping Press for Metal Sheets
Features Gallery Product Description Request A Quote
Features
Specifications
Specification: According To Sinks
Highlight:

100 ton hydraulic stamping press

,

double-action metal sheet press

,

hydraulic press for kitchen sink
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU, ISO
Model Number: HSP - 100 YD
Payment & Shipping Terms
Packaging Details: Seaworthy Packing
Delivery Time: 30-50 working days
Payment Terms: L/C,T/T
Supply Ability: 30 Set/Sets per Year
Product Description
High-Precision Hydraulic Double-Action Stamping Press for Metal Sheet Forming
Professional-Grade Metal Forming Equipment
The High-Precision Hydraulic Double-Action Stamping Press (Model: HSP - 100 YD) is engineered for medium to heavy-duty metal sheet processing in manufacturing environments. Combining stable pressure output, high processing precision, and efficient production capacity, this press excels at blanking, precision punching, complex bending, shaping, and deep drawing operations.
Key Advantages
  • 100-ton nominal pressure with uniform force distribution
  • Double-action slider structure for complex forming tasks
  • Repeatability accuracy ≤0.02mm for consistent results
  • 30% reduction in secondary processing steps
  • 40% higher production efficiency than traditional presses
  • 15% lower comprehensive manufacturing costs
Technical Specifications
Parameter Category Parameter Description Specification Value Unit
Basic Performance Nominal Pressure 100 Ton (T)
Maximum Stroke Length 300 mm
Stamping Speed (Max) 25 mm/s
Repeatability Accuracy ≤0.02 mm
Structural Design Structure Type Yoke-type (Gantry) -
Slider Type Double-action -
Worktable Size (L×W) 800×500 mm
Worktable Thickness 80 mm
Power & Control Power Supply Voltage 380 (Three-phase) V/50Hz
Rated Power 15 kW
Control System PLC + 10-inch HMI -
Hydraulic Oil Type ISO VG 46 -
Safety & Dimension Safety Standard Compliance ISO 13849-1 (PLd), OSHA 1910.217 -
Overall Dimension (L×W×H) 1600×1200×2200 mm
Net Weight 5800 kg
Noise Level (At 1m Distance) ≤75 dB(A)
Model Design Explanation
The model code HSP - 100 YD contains key specifications:
  • HSP: Hydraulic Stamping Press (product category)
  • 100: Nominal pressure in Tons
  • Y: Yoke-type (gantry structure)
  • D: Double-action (double-slider design)
Operational Features
The press features an advanced hydraulic drive system with pressure stabilization, ensuring consistent performance. The double-action slider structure supports both synchronous and sequential operation modes, ideal for complex forming tasks like deep drawing of cylindrical containers or shaping irregular auto body parts.
Safety & Maintenance
Compliant with ISO 13849-1 (PLd) and OSHA 1910.217 standards, the press includes dual-hand safety controls and emergency stop buttons. The modular design allows easy access to critical components (hydraulic pump, filters, sensors), reducing maintenance time by 25%. The heat-treated cast iron frame ensures long service life (10+ years with proper maintenance).

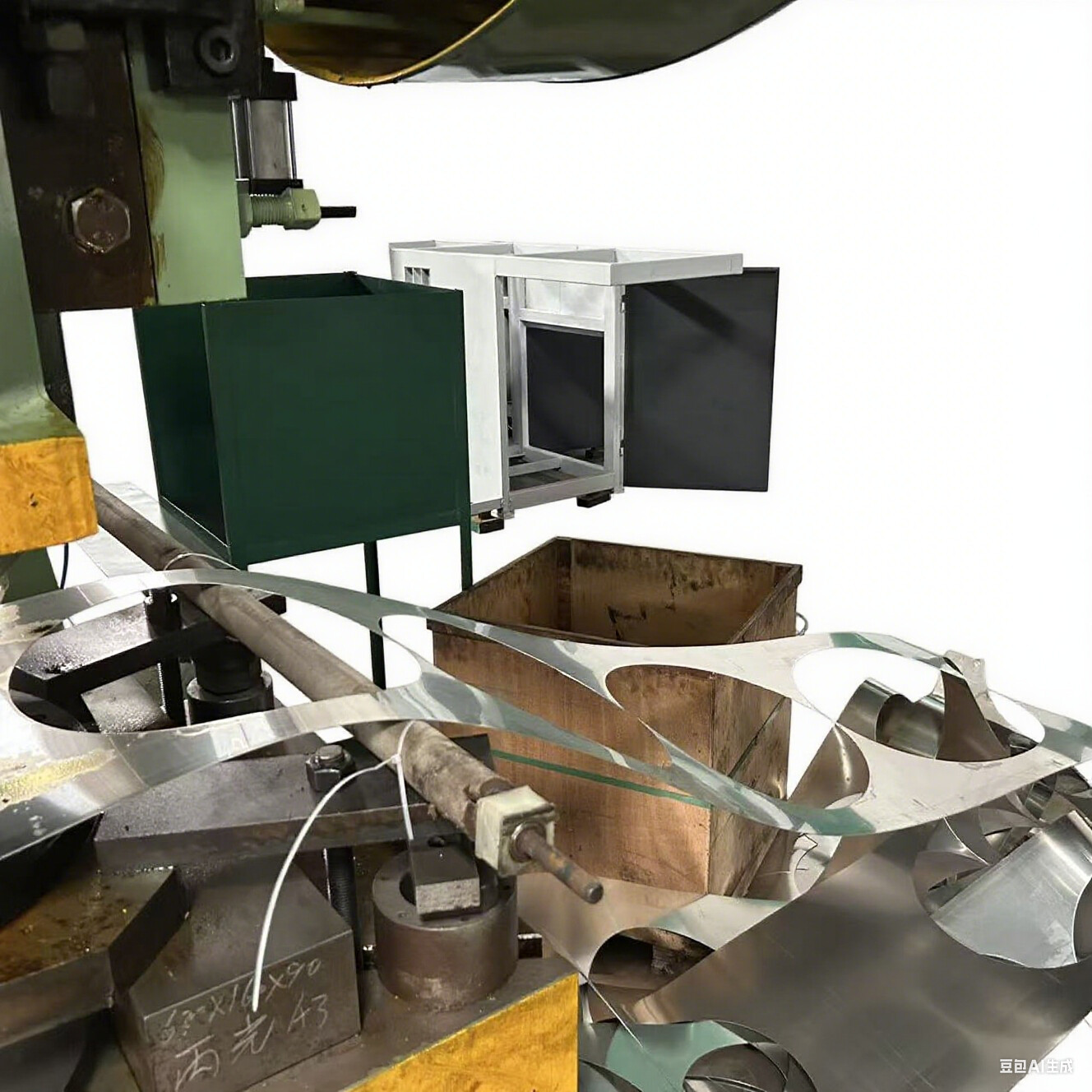

100 Ton Hydraulic Double-Action Stamping Press for Metal Sheets 0

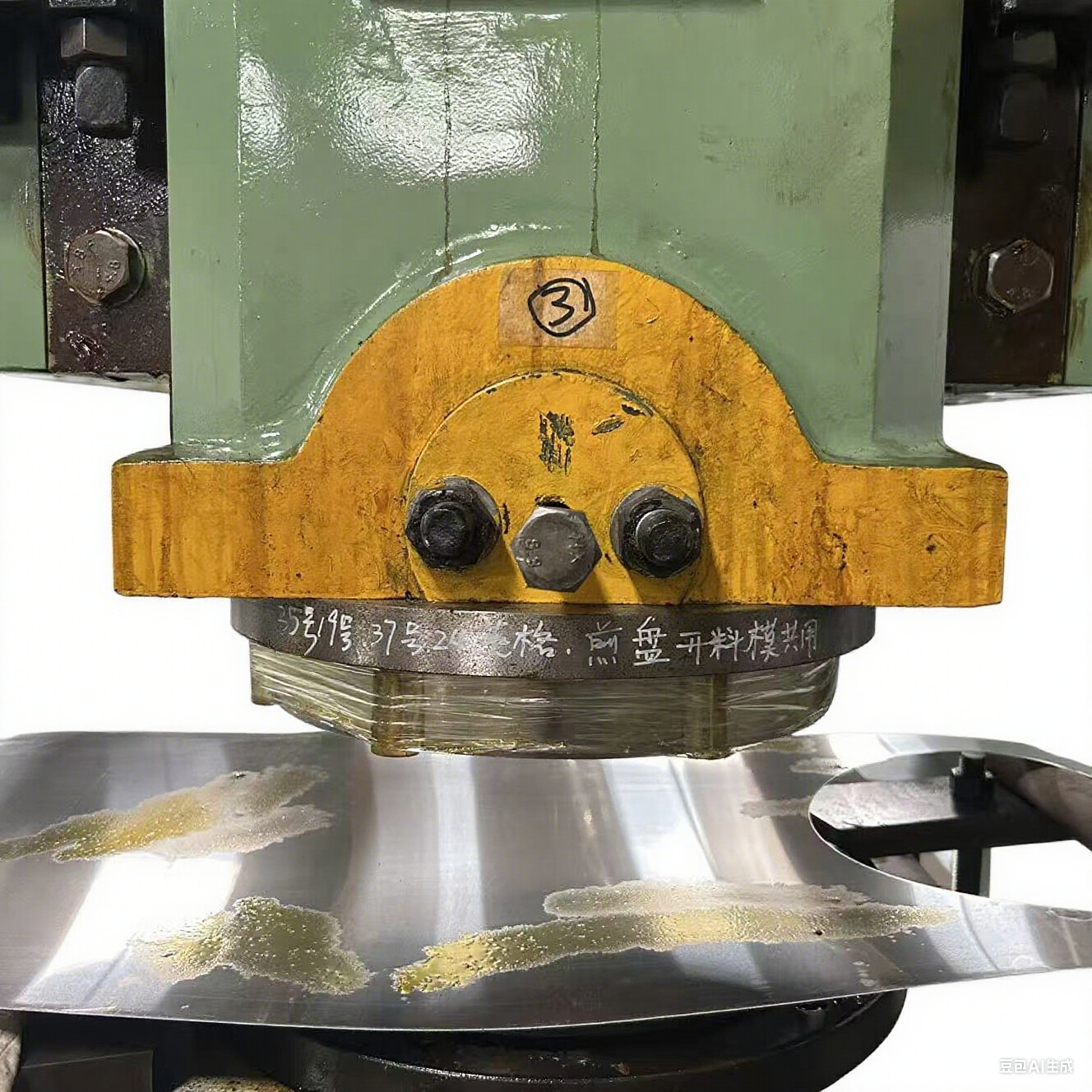

100 Ton Hydraulic Double-Action Stamping Press for Metal Sheets 1

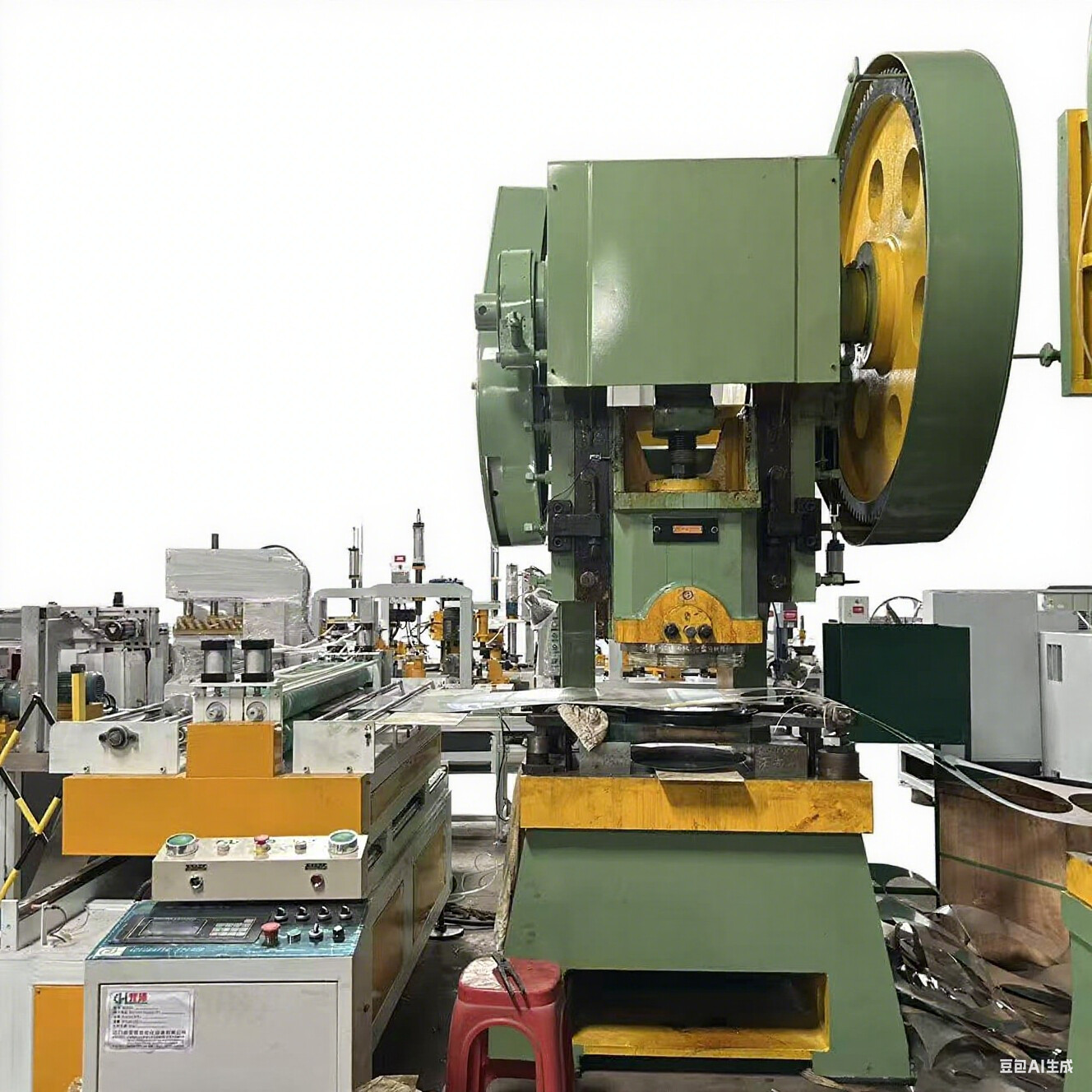

100 Ton Hydraulic Double-Action Stamping Press for Metal Sheets 2
100 Ton Hydraulic Double-Action Stamping Press for Metal Sheets 3
