High - Power Fiber Laser Cutter for Stainless Steel

High - Power Fiber Laser Cutter for Stainless Steel

Brand Name:	Star Power
Model Number:	YZ28G0200T
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	100 Set/Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CU,ISO

Database Of Laser Cutting Processes:

Database Of Laser Cutting Processes

Laser Generater System:

MAX 3000W

Machine Type:

Roll Type Fiber Laser Cutting Machine

System:

Servo

Voltage:

380V/220V Optional

Dimension(L*W*H):

2200*2400*4200mm

Maximum Positioning Speed:

100m/min

Motor Power (kw):

30kw

Packaging Details:

metal frame with film

Highlight:

high-power fiber laser cutter

stainless steel laser cutter

fiber laser cutter for cookware

Product Description

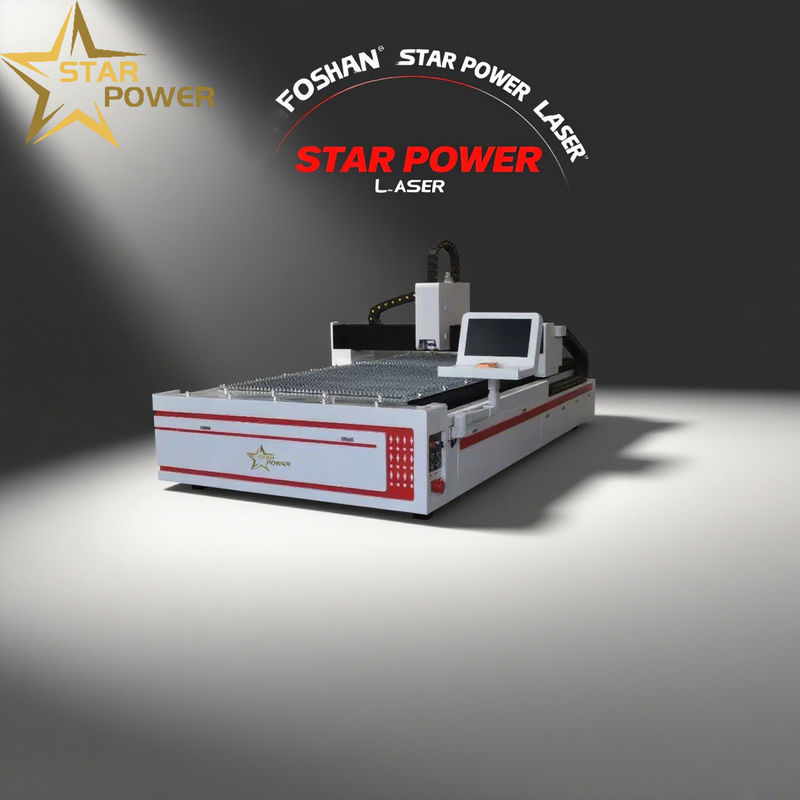

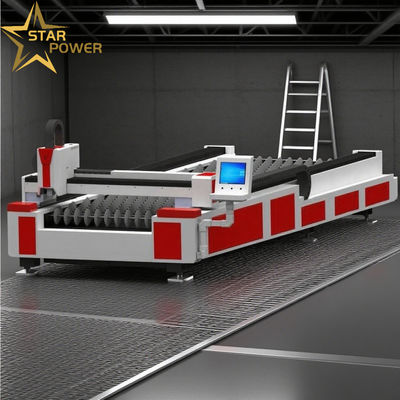

High-Power Fiber Laser Cutter for Stainless Steel

Product Specifications

Attribute	Value
Database of laser cutting processes	Database of laser cutting processes
Laser generator system	MAX 3000W
Machine Type	Roll type fiber laser cutting machine
System	Servo
Voltage	380V/220V Optional
Dimension (LWH)	220024004200mm
Maximum positioning speed	100m/min
Motor Power (kw)	30kw

Product Overview

This high-power fiber laser cutter is specially engineered for stainless steel processing. With its powerful laser energy and precision control system, it delivers exceptional efficiency for stainless steel product manufacturing. Equipped with a high-power fiber laser source, the machine provides concentrated cutting energy capable of handling stainless steel plates ranging from 0.5-20mm thickness. The cutting edge remains flat and smooth, eliminating the need for secondary grinding and significantly reducing post-processing costs.

Precision Performance

The system features high-precision CNC controls and servo drive technology, achieving ±0.03mm positioning accuracy and ±0.01mm repeat positioning accuracy. This enables precise cutting of complex geometries and intricate patterns, meeting customization requirements across industries including kitchenware, medical equipment, and architectural decoration.

Advanced Protection

The anti-high reflection design effectively prevents laser head damage from stainless steel's reflective properties, ensuring long-term operational stability. Combined with automatic feeding and layout optimization functions, the system maximizes material utilization and production efficiency, delivering significant cost savings.

Industry Applications

Furniture Manufacturing: Produces components of various shapes for unique designs
Mechanical Manufacturing: Precisely cuts complex shapes to improve component accuracy and consistency
Architectural Decoration: Enables fine processing of decorative elements and structural components
Aerospace: Meets stringent quality and precision requirements for critical components
Electronics Industry: Processes circuit boards, metal casings, and micro-components with precision

Technical Specifications

CNC system (Including Control Software)	FSUT 2000E
Automatic following system	FSCUT
Database of laser cutting processes	Star Power Laser
Laser generator system	MAX 3000W
Manual laser cutting head	Raytools
High-flex cable energy chains	China
Remote control handle	CC laser

Secure Packaging

Our laser cutting machine is protected with high-quality film packaging that conforms to the equipment contours, preventing scratches, impacts, and dust intrusion during transit. The moisture-resistant film safeguards internal components while our professional team ensures complete coverage of all critical parts including the main body, cutting head, and control panel.
