Advanced Industrial Cleaning And Drying Equipment For Automated Production

1set
MOQ
Negotiate a price
Price
Advanced Industrial Cleaning And Drying Equipment For Automated Production
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Automatic, High Efficiency
Supply Voltage: 380V ±10% 50HZ
Loading Height: 850mm Distance From The Floor
Conveyor Belt Conveying Speed: V=0. 5~3.0m/min ( Infinitely Adjustable)
Carrying Capacity Of Conveyor Belt: ≥50kg/m²
Cleaning Machine Inlet And Outlet Size: Width500mm, Height 330mm (the Distance From The Mesh Belt To The Nozzle Is About 300mm)
Cleaning Pressure: P≥350Kpa
Power: 40KW
External Dimensions Of Equipment (host): L4500*W1800*H2600 MM
Material: Stainless Steel
Highlight:

Advanced Industrial Cleaning Equipment

,

Automated Production Industrial Cleaning Equipment

,

Advanced Industrial Drying Equipment
Basic Infomation
Place of Origin: China
Brand Name: Starpower
Certification: ISO9004, ISO9001
Model Number: KR-0876RTZ automatic ultrasonic cleaning machine
Payment & Shipping Terms
Packaging Details: wooden case
Delivery Time: 1-2 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1set
Product Description
Advanced Industrial Cleaning and Drying Equipment for Automated Production

Working process:
Loading → Aerated pickling and rust removal → Ultrasonic chemical cleaning → Ultrasonic chemical cleaning → Ultrasonic water cleaning → Ultrasonic water cleaning + dehydration → Hot air drying → Hot air drying → Unloading.

Advanced industrial cleaning and drying equipment for automated production has extensive and important application scenarios in multiple fields:

  1. In the automotive manufacturing industry, this equipment can be used to clean engine parts, transmission housings, brake system components, etc. The efficient cleaning ability can remove impurities such as oil stains and metal shavings, ensuring the precision and performance of parts. After rapid drying, parts can immediately enter the next assembly process, improving production efficiency.
  2. In the field of electronic manufacturing, for precision electronic components such as printed circuit boards and semiconductor chips, advanced cleaning and drying equipment is crucial. It can remove tiny pollutants such as dust and welding slag, and precisely control the drying process to prevent components from getting damp or damaged, ensuring the quality and reliability of electronic products.
  3. In the mechanical processing industry, various mechanical parts with complex shapes often have oil stains and chips remaining after processing. These equipment can perform deep cleaning and drying, improve the surface quality and service life of parts, and provide guarantee for high-precision assembly.
  4. In the field of medical devices, strict hygiene requirements make advanced cleaning and drying equipment essential. It can thoroughly clean and dry surgical instruments, medical catheters, etc., ensuring the sterility and safety of medical devices and escorting the health of patients.

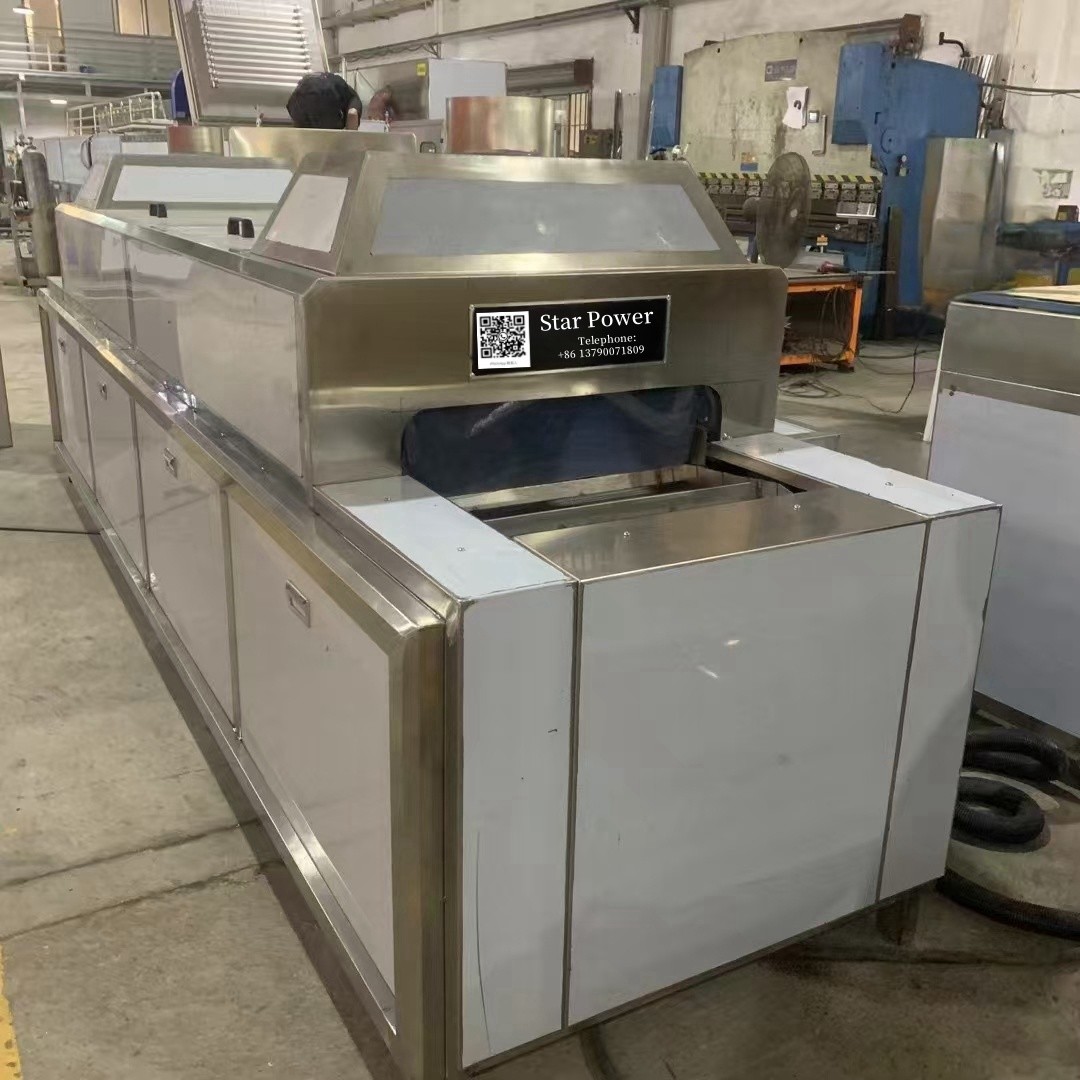

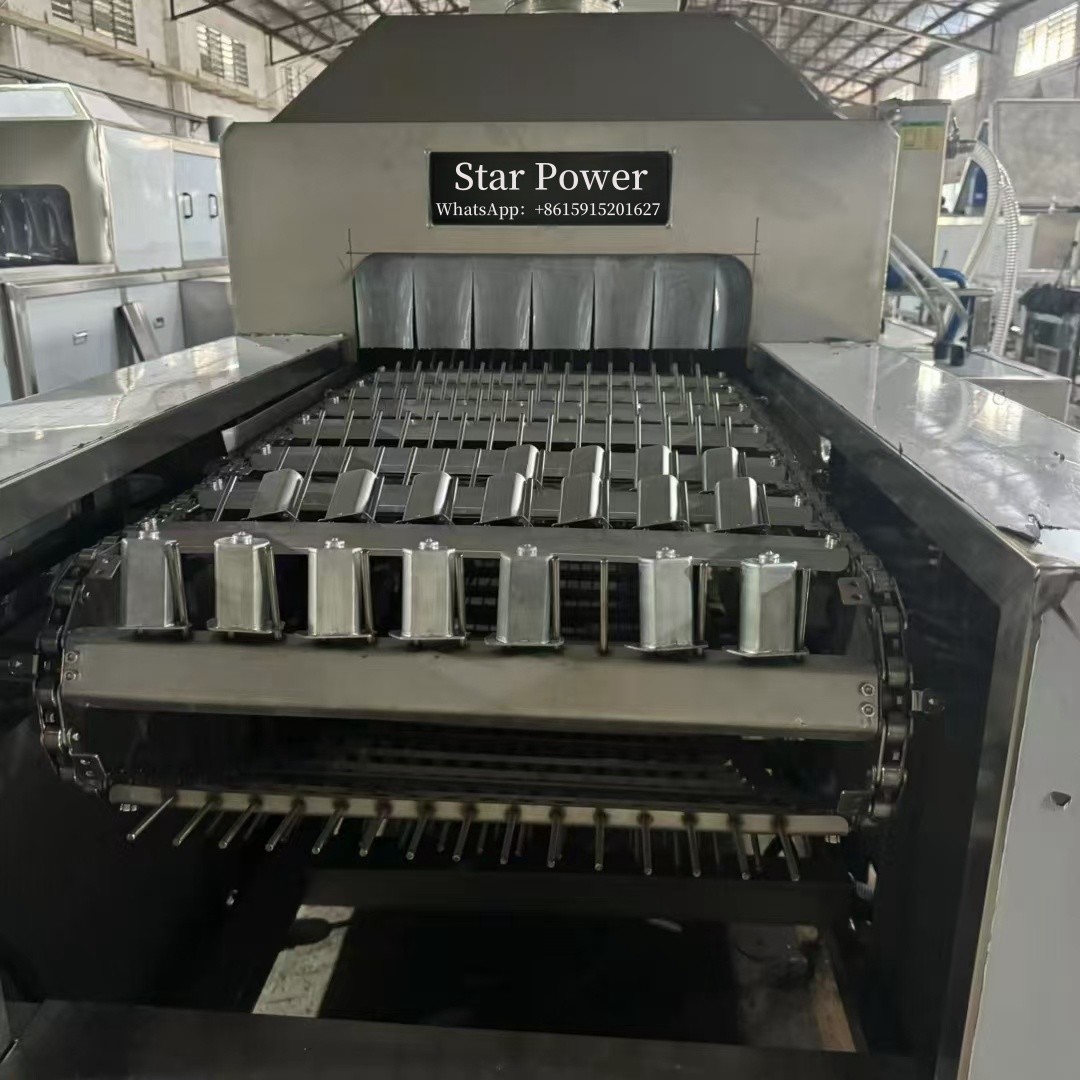

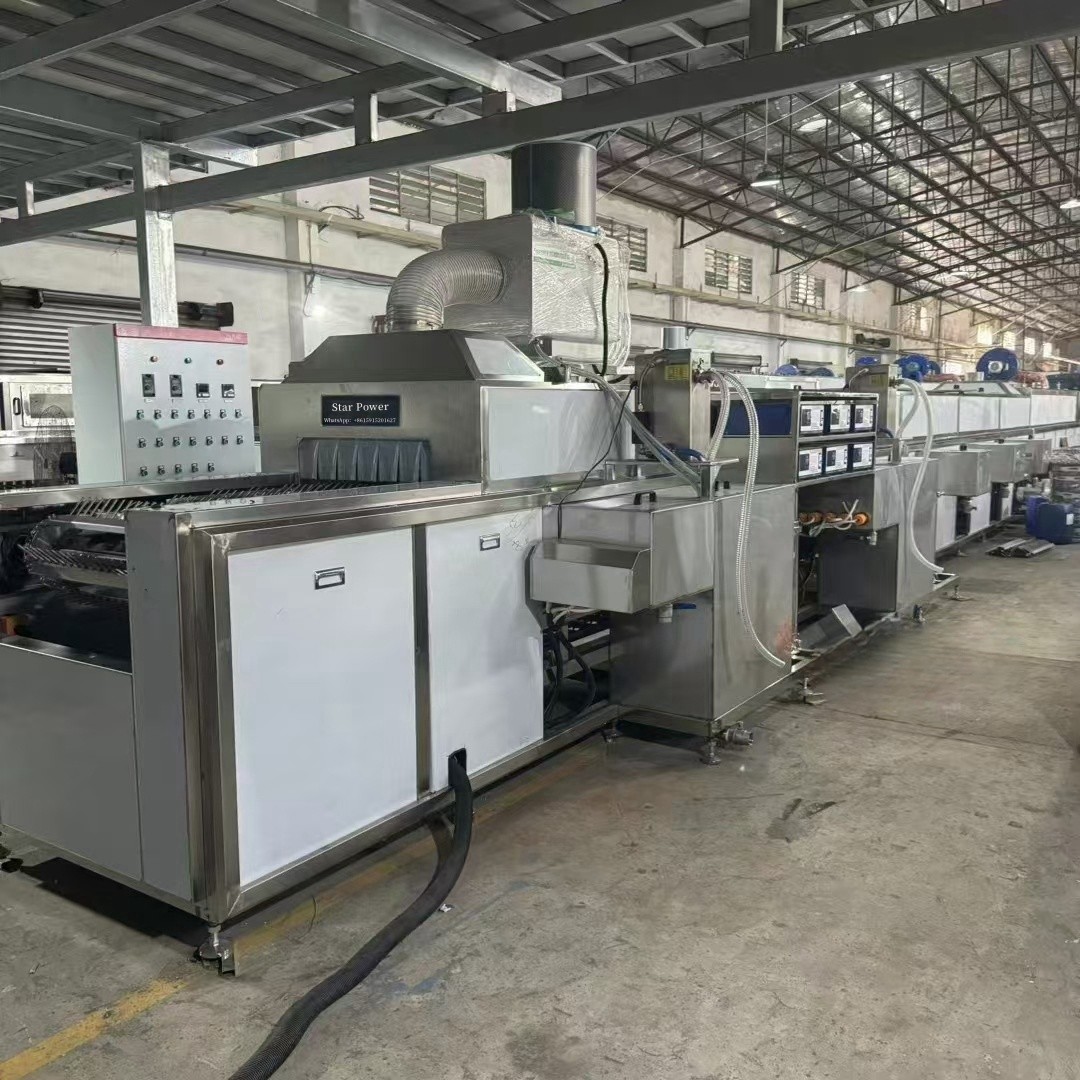

Advanced Industrial Cleaning And Drying Equipment For Automated Production 0

Advanced Industrial Cleaning And Drying Equipment For Automated Production 1





Equipment Parameters:

Tank Body
Structure		 Internal effective size Inner tank size: L2600×W1400×H500mm
Approximate overall size: L2850W1650H750mm (subject to the actual size)
Heating method Electric heating 12KW
Material The inner tank adopts "SUS304" 2.5mm Zhangjiagang Posco stainless steel plate.
The non-radiating surface adopts SUS304 T = 2.0mm, and the outer door panel adopts 1.0mm stainless steel.
Outer frame of the cleaning tank It is fabricated by welding stainless steel 40401.5 square tubes, with a sturdy and durable structure.
Structure The ultrasonic transducers are adhered to the bottom of the tank (bottom vibration type), and four corner wheels are configured at the bottom.
Ultrasonic transducer Adopt imported wafer transducers of "HESEN" brand and imported bonding technology. The total number of ultrasonic transducers is 200, with a frequency of 28KHZ and 60W each.
  Total ultrasonic power 12KW


Time control



 It is built-in in the generator and the time is adjustable from 0 to 999 minutes.
Power supply system Ultrasonic generator The generator adopts 4 sets of internationally leading IGBT modules and power tubes for control to ensure strong and stable output power. Xiantai's unique sweeping frequency technology ensures no dead corners in cleaning.
It has functions such as continuously adjustable power, sweeping frequency, timing adjustment, start/stop, etc.
Component part All are imported high-quality components.
Other   Configure a dedicated control box rack. There are two independent generators placed on the control box rack.
The ultrasonic power cord is 3 meters long.
After-sales服务sevre Transport
The equipment is warranted for one year and maintained for life.
Tag:

industrial cleaning equipment

industrial drying equipment

industrial cleaning and drying machine
