Manufacturer Automated Cleaning And Drying Equipment Production Line

1set

MOQ

Negotiate a price

Price

Manufacturer Automated Cleaning And Drying Equipment Production Line

Features Gallery Product Description Request A Quote

Features

Specifications

Features: Automatic, High Efficiency

Supply Voltage: 380V ±10% 50HZ

Loading Height: 850mm Distance From The Floor

Conveyor Belt Conveying Speed: V=0. 5~3.0m/min ( Infinitely Adjustable)

Carrying Capacity Of Conveyor Belt: ≥50kg/m²

Cleaning Machine Inlet And Outlet Size: Width500mm, Height 330mm (the Distance From The Mesh Belt To The Nozzle Is About 300mm)

Cleaning Pressure: P≥350Kpa

Power: 40KW

External Dimensions Of Equipment (host): L4500*W1800*H2600 MM

Material: Stainless Steel

Highlight:

Automated Cleaning Drying Equipment Production Line

,

Automated Cleaning Drying Equipment

Basic Infomation

Place of Origin: China

Brand Name: Starpower

Certification: ISO9004, ISO9001

Model Number: KR-0876RTZ automatic ultrasonic cleaning machine

Payment & Shipping Terms

Packaging Details: wooden case

Delivery Time: 1-2 month

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1set

Gallery

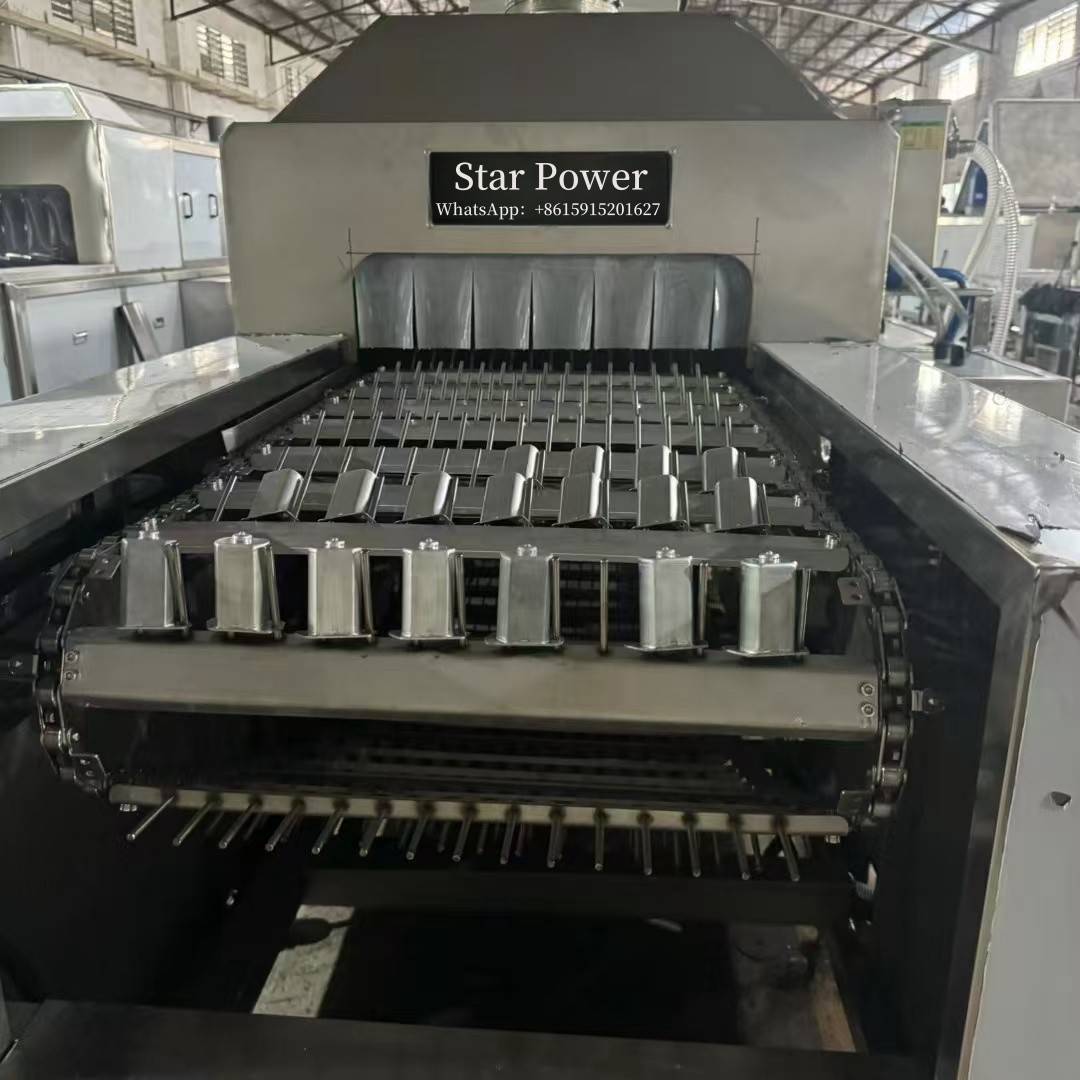

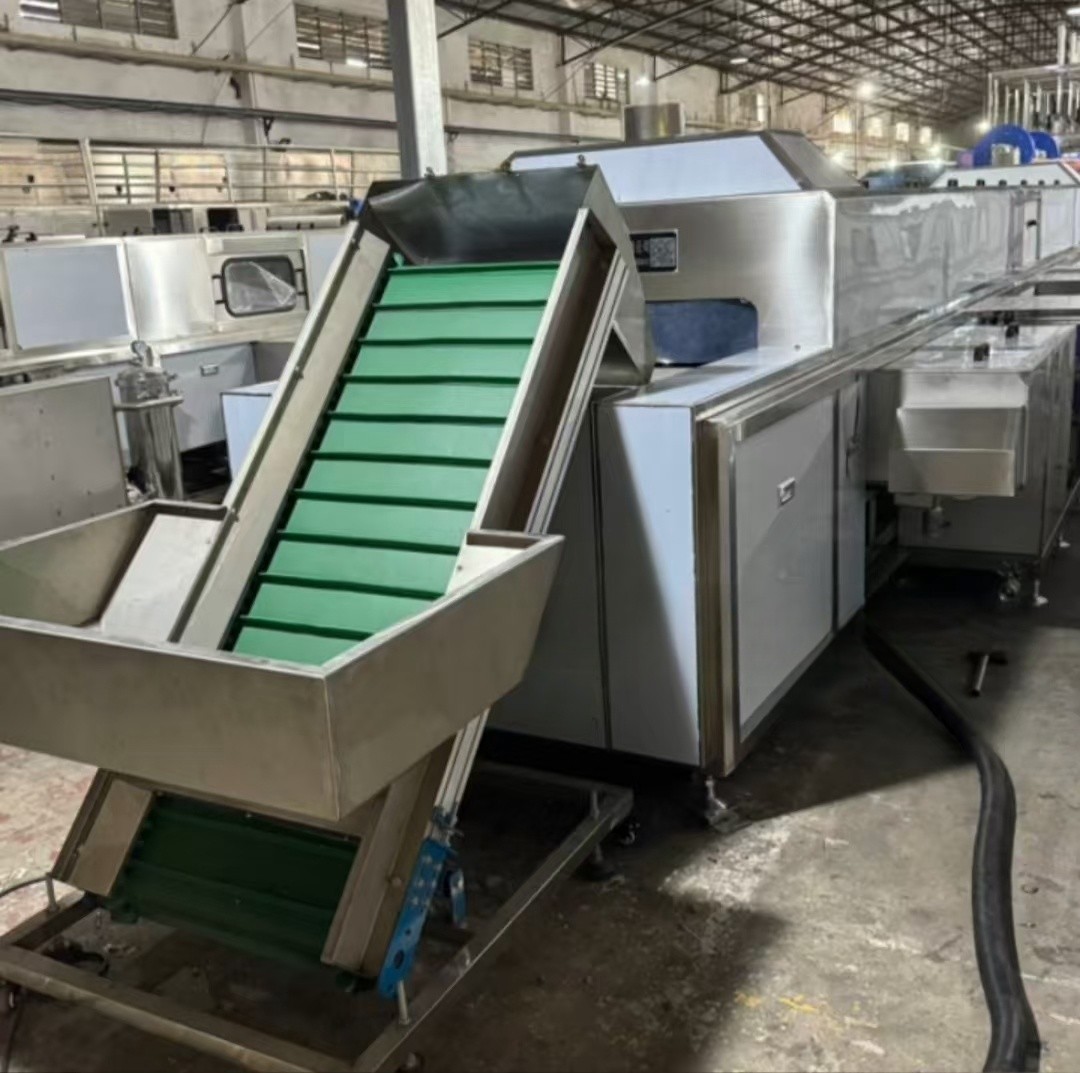

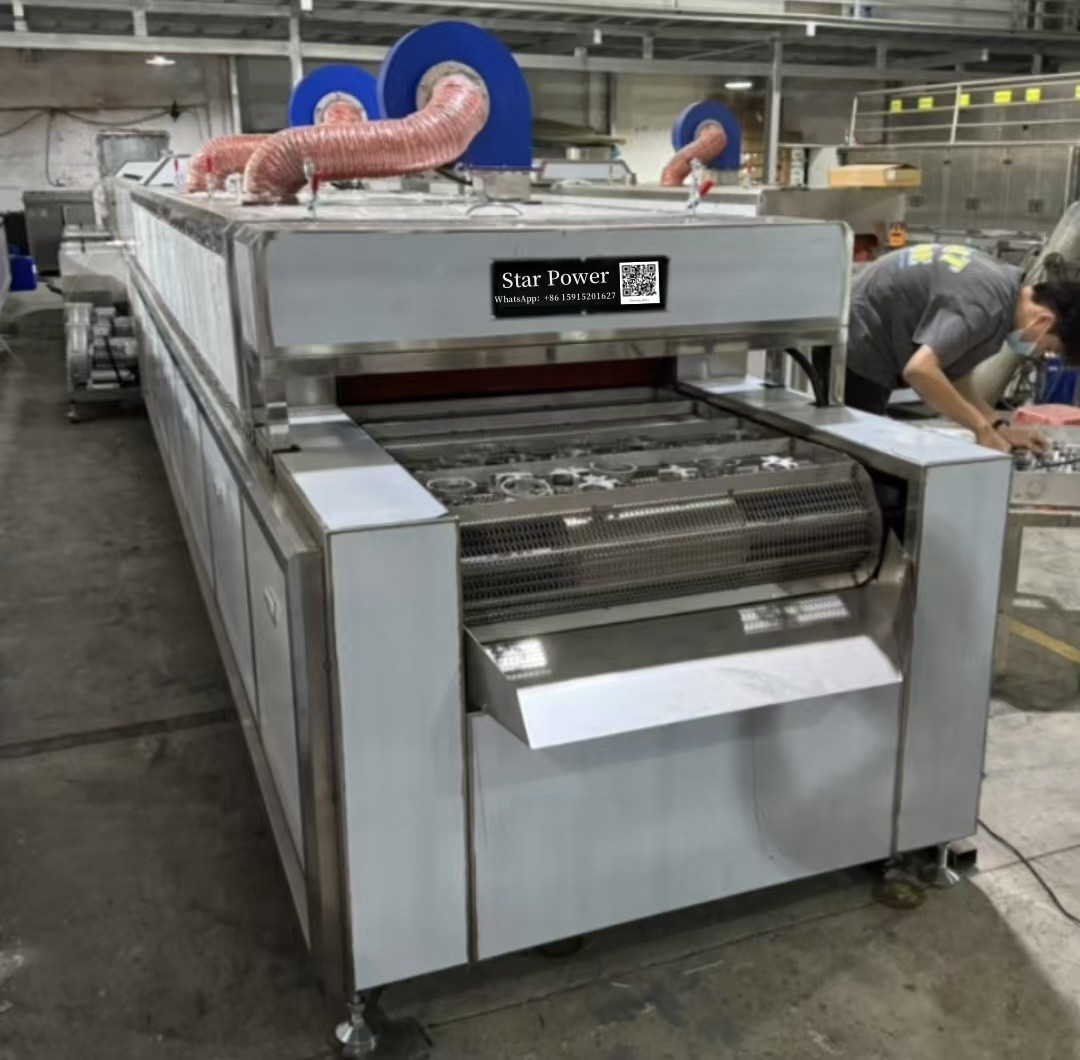

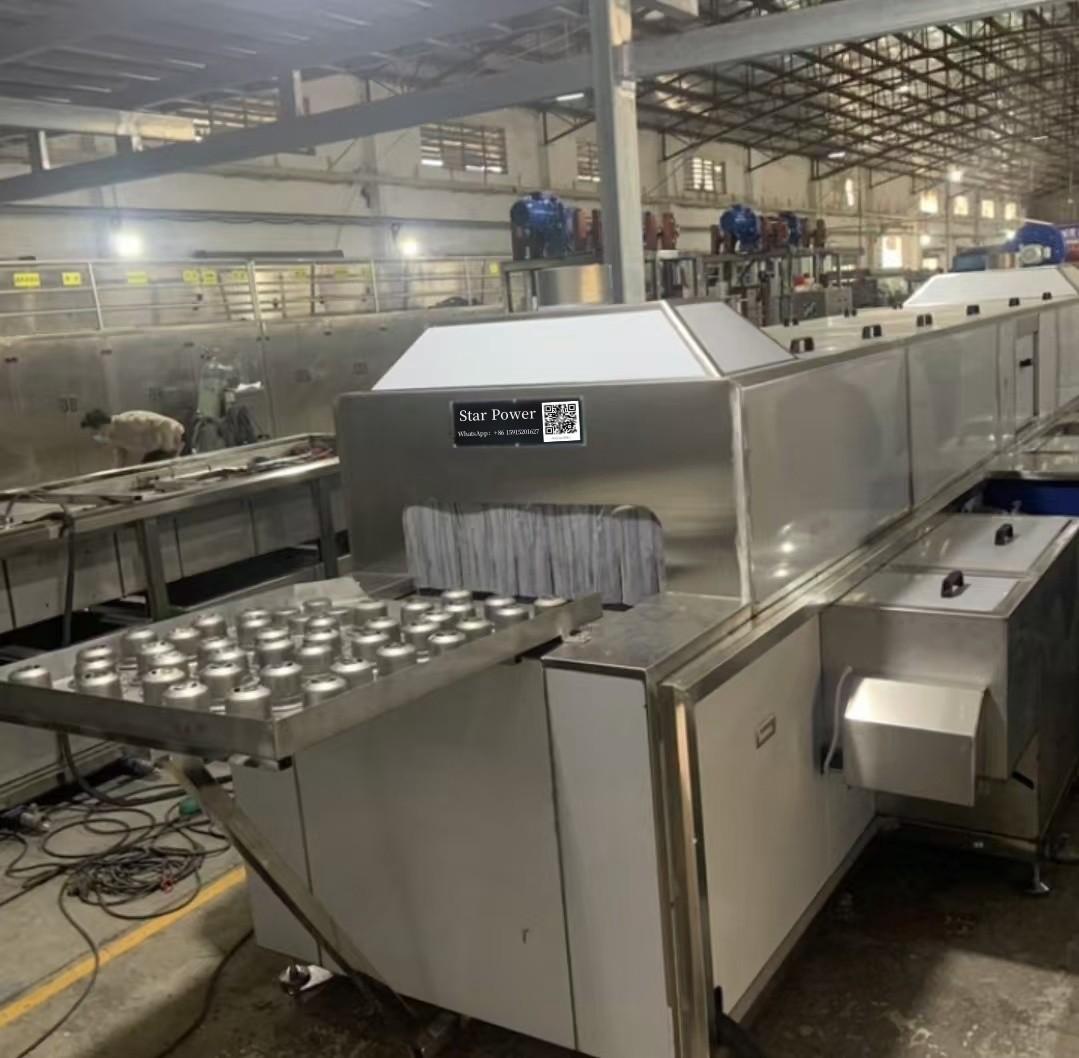

Manufacturer Automated Cleaning And Drying Equipment Production Line

Product Description

Manufacturer of automated cleaning and drying equipment production line

Working process:

Loading → Aerated pickling and rust removal → Ultrasonic chemical cleaning → Ultrasonic chemical cleaning → Ultrasonic water cleaning → Ultrasonic water cleaning + dehydration → Hot air drying → Hot air drying → Unloading.

Characteristics and application fields of automated cleaning and drying equipment production line:
1. Product characteristics
High degree of automation
Our automated cleaning and drying equipment production line adopts advanced automation technology and can realize full-process unattended operation. From feeding, cleaning, drying to discharging, the entire process is completed automatically, greatly improving production efficiency and reducing labor costs.
Efficient cleaning ability
The equipment is equipped with a powerful spray system and ultrasonic cleaning technology, which can quickly and effectively remove various dirt, including oil stains, dust, particles, etc. At the same time, we can also customize different cleaning solutions according to customer needs to meet the cleaning requirements of different industries.
Fast drying function
The production line adopts an efficient hot air circulation system and infrared heating technology, which can dry the cleaned workpiece in a short time to ensure that there is no residual moisture on the workpiece surface. We can also adjust the drying temperature and time according to customer requirements to meet the drying requirements of different workpieces.
Reliable quality
Our equipment adopts high-quality materials and advanced manufacturing processes, and has the advantages of solid structure, stable performance and long service life. At the same time, we also provide perfect after-sales service to ensure that customers have no worries during use.
2. Application fields
Our automated cleaning and drying equipment production line is widely used in the following fields:
Automobile manufacturing industry
Used for cleaning and drying automobile parts such as engines, transmissions, wheels, etc.
Electronic manufacturing industry
Used for cleaning and drying electronic components, circuit boards, semiconductor devices, etc.
Machinery manufacturing industry
Used for cleaning and drying mechanical parts such as bearings, gears, molds, etc.
Food processing industry
Used for cleaning and drying food processing equipment such as mixers, conveyor belts, packaging machines, etc.
Pharmaceutical manufacturing industry
Used for cleaning and drying medical equipment and containers such as syringes, infusion bottles, medicine bottles, etc.

Manufacturer Automated Cleaning And Drying Equipment Production Line 0

Manufacturer Automated Cleaning And Drying Equipment Production Line 1

Equipment Parameters:

Tank Body Structure	Internal effective size	Inner tank size: L2600×W1400×H500mm Approximate overall size: L2850W1650H750mm (subject to the actual size)
	Heating method	Electric heating 12KW
	Material	The inner tank adopts "SUS304" 2.5mm Zhangjiagang Posco stainless steel plate. The non-radiating surface adopts SUS304 T = 2.0mm, and the outer door panel adopts 1.0mm stainless steel.
	Outer frame of the cleaning tank	It is fabricated by welding stainless steel 40401.5 square tubes, with a sturdy and durable structure.
	Structure	The ultrasonic transducers are adhered to the bottom of the tank (bottom vibration type), and four corner wheels are configured at the bottom.
	Ultrasonic transducer	Adopt imported wafer transducers of "HESEN" brand and imported bonding technology. The total number of ultrasonic transducers is 200, with a frequency of 28KHZ and 60W each.
	Total ultrasonic power	12KW
	Time control	It is built-in in the generator and the time is adjustable from 0 to 999 minutes.
Power supply system	Ultrasonic generator	The generator adopts 4 sets of internationally leading IGBT modules and power tubes for control to ensure strong and stable output power. Xiantai's unique sweeping frequency technology ensures no dead corners in cleaning. It has functions such as continuously adjustable power, sweeping frequency, timing adjustment, start/stop, etc.
Power supply system	Component part	All are imported high-quality components.
Other		Configure a dedicated control box rack. There are two independent generators placed on the control box rack. The ultrasonic power cord is 3 meters long.
After-sales服务sevre	Transport
After-sales服务sevre	The equipment is warranted for one year and maintained for life.
