Name: Customized Spray-type Stainless Steel Appliance Cleaning And Drying Equipment
Brand: Foshan Star Power Technology Co.Ltd
SKU: KR-0876RTZ automatic ultrasonic cleaning machine
Price: 50,002.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Features: Automatic, High Efficiency

Supply Voltage: 380V ±10% 50HZ

Loading Height: 850mm Distance From The Floor

Conveyor Belt Conveying Speed: V=0. 5~3.0m/min ( Infinitely Adjustable)

Carrying Capacity Of Conveyor Belt: ≥50kg/m²

Cleaning Machine Inlet And Outlet Size: Width500mm, Height 330mm (the Distance From The Mesh Belt To The Nozzle Is About 300mm)

Cleaning Pressure: P≥350Kpa

Power: 40KW

External Dimensions Of Equipment (host): L4500*W1800*H2600 MM

Material: Stainless Steel

Highlight:

Drying stainless steel appliance cleaning equipment

Customized stainless steel appliance cleaning equipment

Basic Infomation

Place of Origin: China

Brand Name: Starpower

Certification: ISO9004, ISO9001

Model Number: KR-0876RTZ automatic ultrasonic cleaning machine

Payment & Shipping Terms

Packaging Details: wooden case

Delivery Time: 1-2 month

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1set

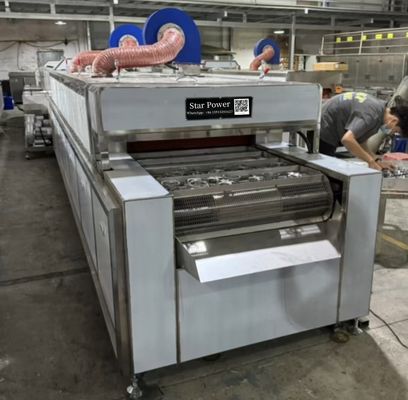

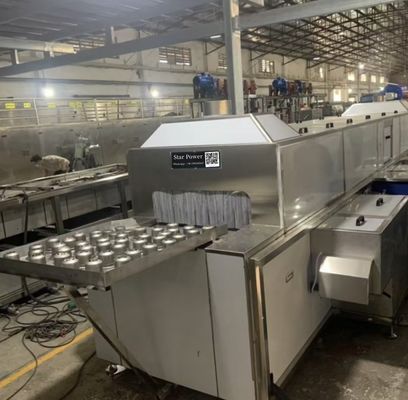

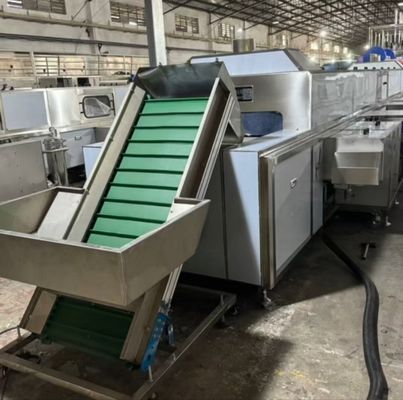

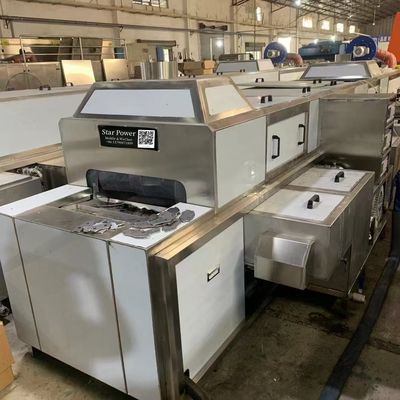

Gallery

Customized Spray-type Stainless Steel Appliance Cleaning And Drying Equipment

Product Description

The application scope of customized spray-type stainless steel appliance cleaning and drying equipment

Working process:

Loading → Aerated pickling and rust removal → Ultrasonic chemical cleaning → Ultrasonic chemical cleaning → Ultrasonic water cleaning → Ultrasonic water cleaning + dehydration → Hot air drying → Hot air drying → Unloading.

The spray-type cleaning and drying equipment production line mainly has the following characteristics:
1. High-efficiency cleaning ability
Powerful spraying: Equipped with multiple high-pressure spray nozzles, it can evenly spray the cleaning liquid onto the surface of the cleaned object with strong pressure to quickly remove various dirt, including oil stains, dust, particles, etc. For example, in the automotive parts manufacturing industry, spray cleaning can effectively remove residual cutting fluid and metal chips during the processing.
Multi-angle coverage: The layout of the spray nozzles is carefully designed to achieve multi-angle spray coverage and ensure that there are no dead corners in cleaning. Whether it is a workpiece with a complex shape or an object with an uneven surface, it can be thoroughly cleaned. For example, for some mechanical parts with complex internal structures, multi-angle spraying can penetrate into various parts and be thoroughly cleaned.
2. Fast drying function
Efficient hot air circulation: The production line is equipped with an advanced hot air circulation system. By heating the air and making it circulate in the drying chamber, it quickly takes away the moisture on the surface of the cleaned object and realizes efficient drying. For example, in the electronic equipment manufacturing industry, rapid drying can prevent residual moisture from causing damage to electronic components.
Precise temperature control: According to different cleaned objects and drying requirements, the drying temperature can be precisely controlled. It can not only ensure the drying effect but also avoid damage to objects due to excessive temperature. For example, for some temperature-sensitive plastic parts, a lower drying temperature can be used to ensure that their performance is not affected.

3. High degree of automation
Continuous production line: The spray-type cleaning and drying equipment production line usually adopts a continuous operation mode. The cleaned objects can be automatically transported from the cleaning area to the drying area without manual handling, greatly improving production efficiency. For example, in large-scale industrial production, a continuous production line can realize large-scale cleaning and drying operations to meet the needs of high production.
Intelligent control system: Equipped with an advanced intelligent control system, it can realize automatic control of the cleaning and drying processes. The operator only needs to set the parameters on the control panel, and the production line can run automatically and can monitor and adjust the operating status in real time. For example, the system can automatically adjust the spray pressure and drying time according to the number and degree of dirt of the cleaned object.

Customized Spray-type Stainless Steel Appliance Cleaning And Drying Equipment 0

Customized Spray-type Stainless Steel Appliance Cleaning And Drying Equipment 1

Equipment Parameters:

Tank Body Structure	Internal effective size	Inner tank size: L2600×W1400×H500mm Approximate overall size: L2850W1650H750mm (subject to the actual size)
	Heating method	Electric heating 12KW
	Material	The inner tank adopts "SUS304" 2.5mm Zhangjiagang Posco stainless steel plate. The non-radiating surface adopts SUS304 T = 2.0mm, and the outer door panel adopts 1.0mm stainless steel.
	Outer frame of the cleaning tank	It is fabricated by welding stainless steel 40401.5 square tubes, with a sturdy and durable structure.
	Structure	The ultrasonic transducers are adhered to the bottom of the tank (bottom vibration type), and four corner wheels are configured at the bottom.
	Ultrasonic transducer	Adopt imported wafer transducers of "HESEN" brand and imported bonding technology. The total number of ultrasonic transducers is 200, with a frequency of 28KHZ and 60W each.
	Total ultrasonic power	12KW
	Time control	It is built-in in the generator and the time is adjustable from 0 to 999 minutes.
Power supply system	Ultrasonic generator	The generator adopts 4 sets of internationally leading IGBT modules and power tubes for control to ensure strong and stable output power. Xiantai's unique sweeping frequency technology ensures no dead corners in cleaning. It has functions such as continuously adjustable power, sweeping frequency, timing adjustment, start/stop, etc.
Power supply system	Component part	All are imported high-quality components.
Other		Configure a dedicated control box rack. There are two independent generators placed on the control box rack. The ultrasonic power cord is 3 meters long.
After-sales服务sevre	Transport
After-sales服务sevre	The equipment is warranted for one year and maintained for life.
