Name: Industrial Cleaning And Drying Equipment For Metalware With High Cleaning Capability
Brand: Foshan Star Power Technology Co.Ltd
SKU: XTA - 60Ⅲ
Price: 50,002.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Features: Automatic, High Efficiency

Supply Voltage: 380V ±10% 50HZ

Loading Height: 850mm Distance From The Floor

Conveyor Belt Conveying Speed: V=0. 5~3.0m/min ( Infinitely Adjustable)

Carrying Capacity Of Conveyor Belt: ≥50kg/m²

Cleaning Machine Inlet And Outlet Size: Width 800mm, Height 500mm (the Distance From The Mesh Belt To The Nozzle Is About 480mm)

Cleaning Pressure: P≥350Kpa

Cleaning And Rinsing Pump Power: 3.75KW Each (1 Unit) X 2.2KW Each (2 Units)

External Dimensions Of Equipment (host): L16000*W1650*H1800 MM

Material: Stainless Steel

Highlight:

Metalware Industrial Cleaning And Drying Equipment

SS Industrial Cleaning And Drying Equipment

Basic Infomation

Place of Origin: China

Brand Name: Starpower

Certification: ISO9004, ISO9001

Model Number: XTA - 60Ⅲ

Payment & Shipping Terms

Packaging Details: wooden case

Delivery Time: 1-2 month

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1set

Gallery

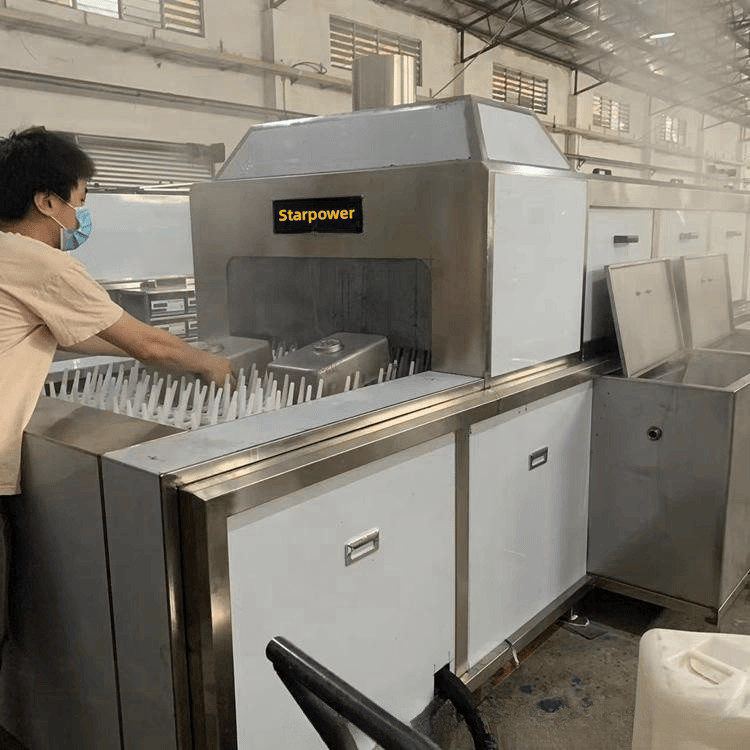

Industrial Cleaning And Drying Equipment For Metalware With High Cleaning Capability

Product Description

Industrial Cleaning And Drying Equipment For Metalware With High Cleaning Capability

Introduction to industrial cleaning and drying equipment for metalware with high cleaning capability:

This type of equipment is designed to provide efficient and thorough cleaning and drying for metalware.

I. Working Principle

It employs advanced cleaning technologies to achieve high cleaning performance. For example, it may utilize high-pressure water jets that can blast away stubborn dirt and contaminants on the metal surface with great force. Additionally, it might incorporate strong spray systems that ensure comprehensive coverage of the metalware, reaching every nook and cranny. Some models may also use specialized cleaning agents or detergents that are formulated to dissolve and remove specific types of stains and residues.

In the drying process, it uses controlled heat and air circulation to quickly evaporate any remaining moisture on the metalware. This helps to prevent rust and ensure that the metalware is completely dry and ready for use or further processing.

II. Advantages

Superior cleaning power: It can effectively remove a wide range of dirt, grease, rust, and other contaminants that are difficult to clean with traditional methods. This ensures that the metalware is cleaned to a high standard, meeting the strict requirements of various industries.
Time-saving: With its efficient cleaning and drying processes, it can handle a large volume of metalware in a relatively short time. This increases productivity and reduces downtime in production lines.
Durability: Built with high-quality materials and advanced engineering, this equipment is designed to withstand the rigors of industrial use. It has a long service life and requires minimal maintenance.
Versatility: It can be used to clean various types of metalware, including different shapes, sizes, and materials. This makes it suitable for a wide range of applicationsin different industries. III. Application Scenarios It is widely used in industries such as automotive manufacturing, aerospace, electronics, and precision engineering. In these industries, metal parts and components need to be cleaned to a very high standard to ensure product quality and performance. For example, in the automotive industry, engine parts, transmission components,and body panels can be cleaned using this equipment to remove oil, grease, and dirt. In the aerospace industry, metal parts for aircraft engines and structural components require strict cleaning to meet safety and performance standards. In the electronics industry, metal casings and connectors need to be cleaned to ensure proper functioning and reliability

Industrial Cleaning And Drying Equipment For Metalware With High Cleaning Capability 0

Industrial Cleaning And Drying Equipment For Metalware With High Cleaning Capability 1

Equipment Parameters:

Tank Body Structure	Internal effective size	Inner tank size: L2600×W1400×H500mm Approximate overall size: L2850W1650H750mm (subject to the actual size)
	Heating method	Electric heating 12KW
	Material	The inner tank adopts "SUS304" 2.5mm Zhangjiagang Posco stainless steel plate. The non-radiating surface adopts SUS304 T = 2.0mm, and the outer door panel adopts 1.0mm stainless steel.
	Outer frame of the cleaning tank	It is fabricated by welding stainless steel 40401.5 square tubes, with a sturdy and durable structure.
	Structure	The ultrasonic transducers are adhered to the bottom of the tank (bottom vibration type), and four corner wheels are configured at the bottom.
	Ultrasonic transducer	Adopt imported wafer transducers of "HESEN" brand and imported bonding technology. The total number of ultrasonic transducers is 200, with a frequency of 28KHZ and 60W each.
	Total ultrasonic power	12KW
	Time control	It is built-in in the generator and the time is adjustable from 0 to 999 minutes.
Power supply system	Ultrasonic generator	The generator adopts 4 sets of internationally leading IGBT modules and power tubes for control to ensure strong and stable output power. Xiantai's unique sweeping frequency technology ensures no dead corners in cleaning. It has functions such as continuously adjustable power, sweeping frequency, timing adjustment, start/stop, etc.
Power supply system	Component part	All are imported high-quality components.
Other		Configure a dedicated control box rack. There are two independent generators placed on the control box rack. The ultrasonic power cord is 3 meters long.
After-sales服务sevre	Transport
After-sales服务sevre	The equipment is warranted for one year and maintained for life.
