Conveyor Belt Conveying Speed:V=0. 5~3.0m/min ( Infinitely Adjustable)
Carrying Capacity Of Conveyor Belt:≥50kg/m²
Cleaning Machine Inlet And Outlet Size:Width 800mm, Height 500mm (the Distance From The Mesh Belt To The Nozzle Is About 480mm)
Cleaning Pressure:P≥350Kpa
Cleaning And Rinsing Pump Power:3.75KW Each (1 Unit) X 2.2KW Each (2 Units)

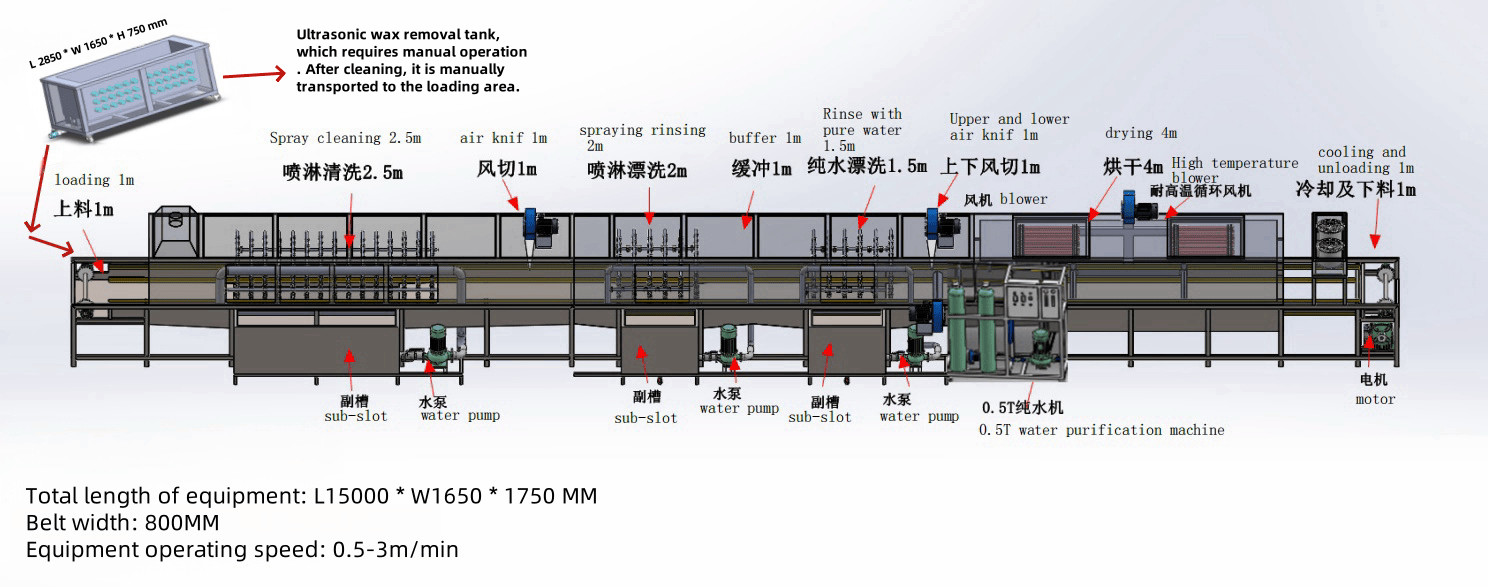

External Dimensions Of Equipment (host):L15500*W1650*H1850 MM
Material:Stainless Steel
Highlight:
Metalware Industrial Cleaning Equipment
,
Advanced Industrial Cleaning Equipment
,
Ultrasonic Industrial Cleaning Equipment
Basic Infomation
Place of Origin:China
Brand Name:Starpower
Certification:ISO9004, ISO9001
Model Number:XTA - 60Ⅲ
Payment & Shipping Terms
Packaging Details:wooden case
Delivery Time:1-2 month
Payment Terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:1set
Gallery

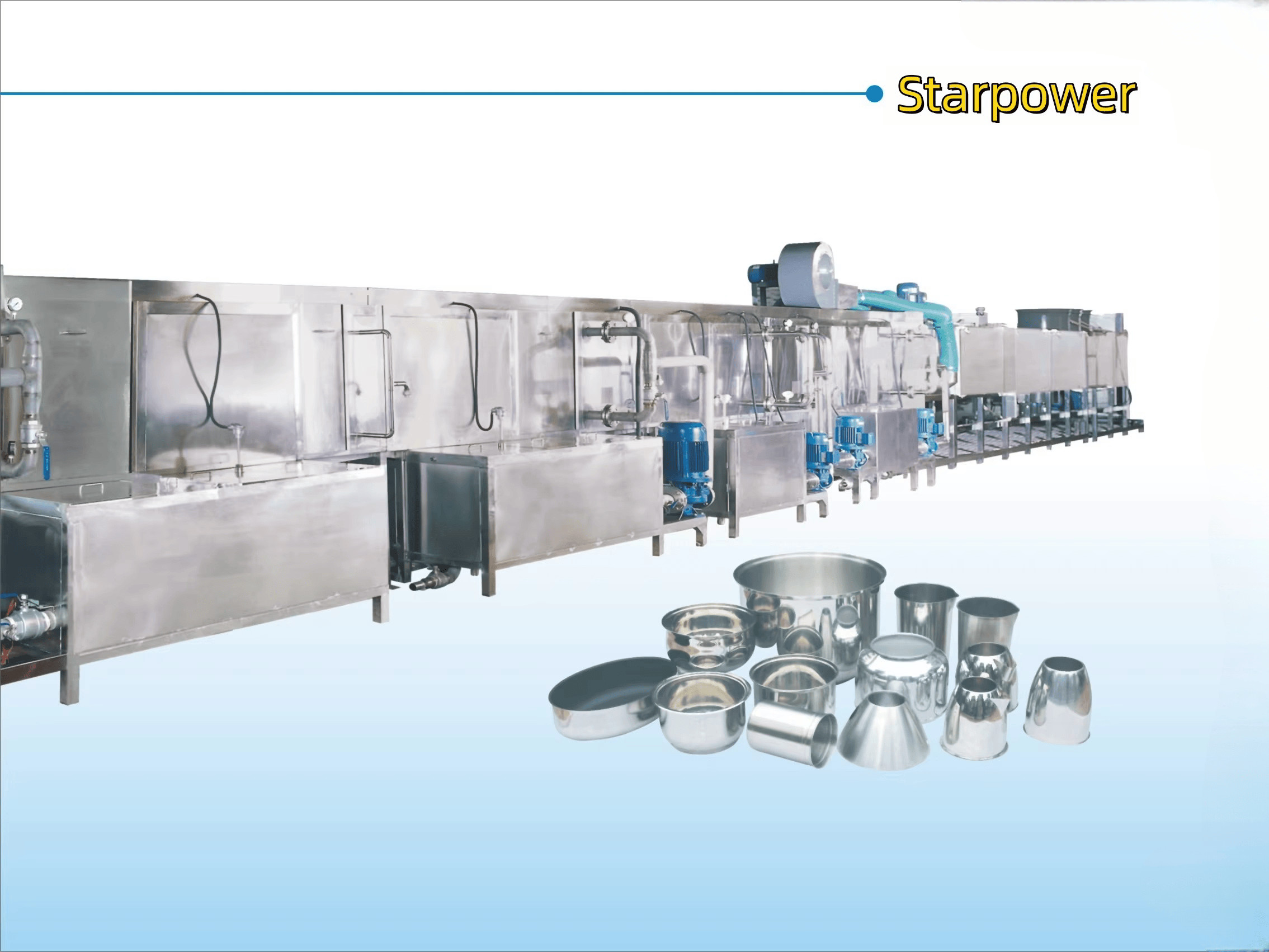

Advanced Industrial Cleaning And Drying Equipment For Metalware With Ultrasonic Technology
Product Description
Advanced industrial metalware cleaning and drying equipment with ultrasonic technology:
Working principle: Utilize the cavitation effect generated when ultrasonic waves propagate in liquid to form tiny bubbles in the liquid. When these bubbles burst, they will produce a powerful impact force, which can thoroughly clean the dirt, impurities, etc. on the surface and inside of metalware. For example, for some metal parts with complex shapes, tiny pores or blind holes, ultrasonic technology can effectively penetrate these areas for cleaning to ensure the comprehensiveness and thoroughness of cleaning.
Advantages: Excellent cleaning effect, capable of removing dirt that is difficult to handle by traditional cleaning methods; less damage to metalware, suitable for cleaning various precision metal components; high cleaning efficiency, able to complete the cleaning of a large number of metalware in a short time.
Application scenarios: Widely used in industries with high requirements for metal part cleaning such as automobile manufacturing, aerospace, electronic equipment manufacturing, and medical devices. For example, automotive engine parts, aerospace parts, and metal frames of electronic chips all need to use this advanced cleaning and drying equipment with ultrasonic technology to ensure their cleanliness and quality.
Equipment Parameters:
Tank Body
Structure
Internal effective size
Inner tank size: L2600×W1400×H500mm
Approximate overall size: L2850W1650H750mm (subject to the actual size)
Heating method
Electric heating 12KW
Material
The inner tank adopts "SUS304" 2.5mm Zhangjiagang Posco stainless steel plate.
The non-radiating surface adopts SUS304 T = 2.0mm, and the outer door panel adopts 1.0mm stainless steel.
Outer frame of the cleaning tank
It is fabricated by welding stainless steel 40401.5 square tubes, with a sturdy and durable structure.
Structure
The ultrasonic transducers are adhered to the bottom of the tank (bottom vibration type), and four corner wheels are configured at the bottom.
Ultrasonic transducer
Adopt imported wafer transducers of "HESEN" brand and imported bonding technology. The total number of ultrasonic transducers is 200, with a frequency of 28KHZ and 60W each.
Total ultrasonic power
12KW
Time control
It is built-in in the generator and the time is adjustable from 0 to 999 minutes.
Power supply system
Ultrasonic generator
The generator adopts 4 sets of internationally leading IGBT modules and power tubes for control to ensure strong and stable output power. Xiantai's unique sweeping frequency technology ensures no dead corners in cleaning.
It has functions such as continuously adjustable power, sweeping frequency, timing adjustment, start/stop, etc.
Component part
All are imported high-quality components.
Other
Configure a dedicated control box rack. There are two independent generators placed on the control box rack.
The ultrasonic power cord is 3 meters long.
After-sales服务sevre
Transport
The equipment is warranted for one year and maintained for life.
