Conveyor Belt Conveying Speed:V=0. 5~3.0m/min ( Infinitely Adjustable)
Carrying Capacity Of Conveyor Belt:≥50kg/m²
Cleaning Machine Inlet And Outlet Size:Width 850mm, Height 500mm (the Distance From The Mesh Belt To The Nozzle Is About 480mm)
Cleaning Pressure:P≥350Kpa
Cleaning And Rinsing Pump Power:3.75KW Each (1 Unit) X 2.2KW Each (2 Units)
External Dimensions Of Equipment (host):L16000*W1650*H1800 MM
Material:Stainless Steel
Highlight:
Metalware Industrial Cleaning And Drying Equipment
,
Metalware Cleaning And Drying Equipment
Basic Infomation
Place of Origin:China
Brand Name:Starpower
Certification:ISO9004, ISO9001
Model Number:XTA - 60Ⅲ
Payment & Shipping Terms
Packaging Details:wooden case
Delivery Time:1-2 month
Payment Terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:1set
Gallery

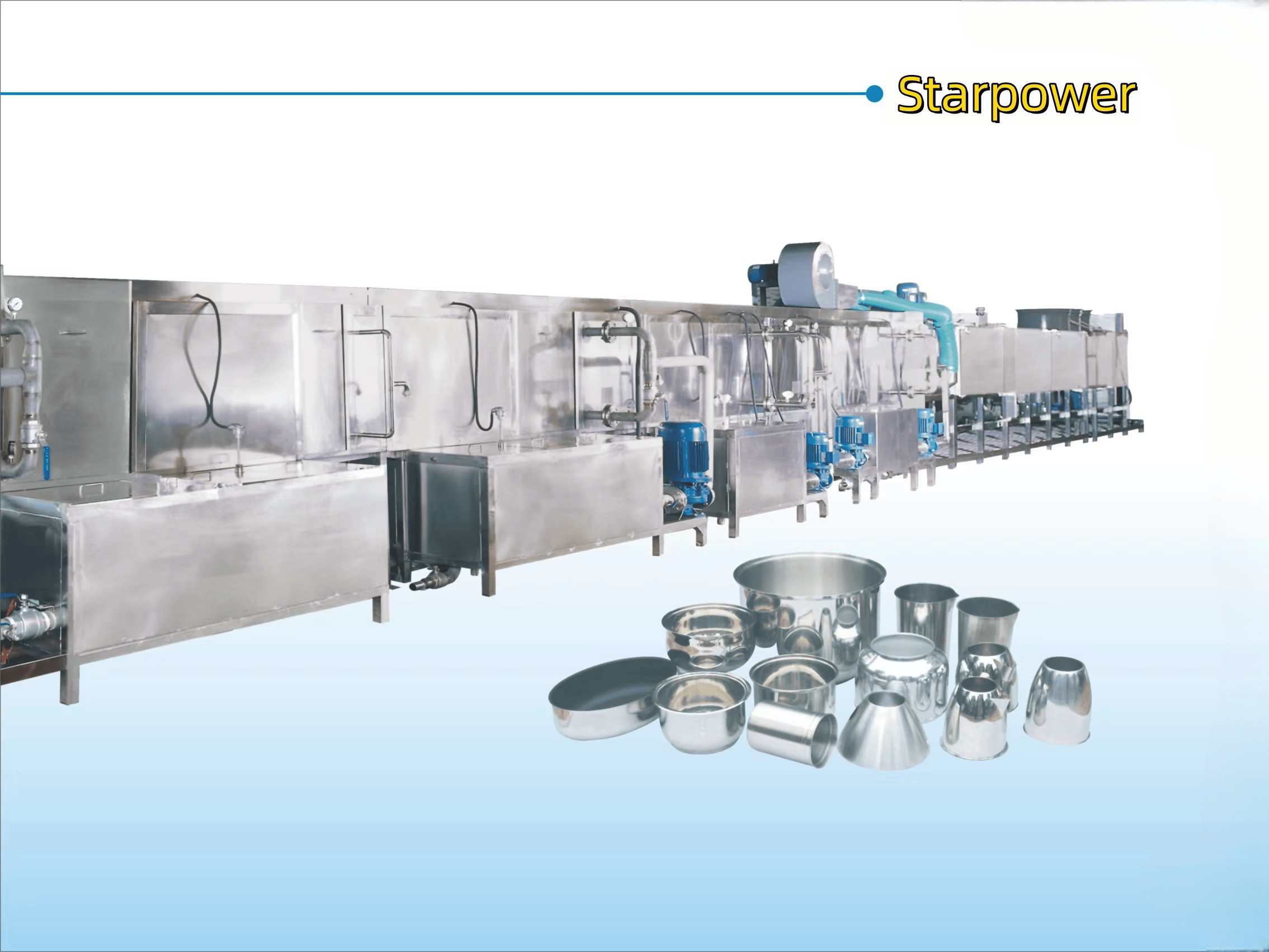

Continuous Pass Through Industrial Cleaning And Drying Equipment For Metalware
Product Description
Continuous Pass Through Industrial Cleaning And Drying Equipment For Metalware
Metalware cleaning and drying line is an industrial equipment production line specially used for cleaning and drying metalware.
This cleaning and drying line is usually composed of multiple links.
In the cleaning link, advanced cleaning technology is adopted. Through high-pressure water flow, spraying or soaking and other methods, dirt, oil stains, dust and other impurities on the surface of metalware are effectively removed. The cleaning process can be adjusted according to different metalware materials and stain degrees to ensure thorough cleaning effect without damaging the surface of the ware.
In the drying link, appropriate temperature and air flow are used to quickly dry the cleaned metalware to make its surface dry and prevent rust and water stain residue. The drying process is highly efficient and energy-saving and can complete the drying task of a large number of metalware in a short time.
The metalware cleaning and drying line has the advantages of high degree of automation, simple operation, good cleaning and drying effect and high production efficiency. It is widely used in various metalware manufacturing enterprises, tableware production enterprises, kitchen equipment enterprises, etc., providing strong support for enterprises to improve product quality, reduce labor intensity and improve production efficiency
Equipment Parameters:
Tank Body
Structure
Internal effective size
Inner tank size: L2600×W1400×H500mm
Approximate overall size: L2850W1650H750mm (subject to the actual size)
Heating method
Electric heating 12KW
Material
The inner tank adopts "SUS304" 2.5mm Zhangjiagang Posco stainless steel plate.
The non-radiating surface adopts SUS304 T = 2.0mm, and the outer door panel adopts 1.0mm stainless steel.
Outer frame of the cleaning tank
It is fabricated by welding stainless steel 40401.5 square tubes, with a sturdy and durable structure.
Structure
The ultrasonic transducers are adhered to the bottom of the tank (bottom vibration type), and four corner wheels are configured at the bottom.
Ultrasonic transducer
Adopt imported wafer transducers of "HESEN" brand and imported bonding technology. The total number of ultrasonic transducers is 200, with a frequency of 28KHZ and 60W each.
Total ultrasonic power
12KW
Time control
It is built-in in the generator and the time is adjustable from 0 to 999 minutes.
Power supply system
Ultrasonic generator
The generator adopts 4 sets of internationally leading IGBT modules and power tubes for control to ensure strong and stable output power. Xiantai's unique sweeping frequency technology ensures no dead corners in cleaning.
It has functions such as continuously adjustable power, sweeping frequency, timing adjustment, start/stop, etc.
Component part
All are imported high-quality components.
Other
Configure a dedicated control box rack. There are two independent generators placed on the control box rack.
The ultrasonic power cord is 3 meters long.
After-sales服务sevre
Transport
The equipment is warranted for one year and maintained for life.
