Advanced Deep Throat Punch Press for Premium Handmade Kitchen Sink Fabrication
Product Descrinption
Working principle and use:
This press is crank as a working mechanism, crank for the steel, so the movement of the slider is mandatory, slider per minute trips and slide motion curve is constant. The pressure machine is suitable for cutting, punching, blanking, bending and shallow drawing, stamping, but it dose not apply to printed works.When working in all kinds of stamping presses, stamping force required(including RMA) is less than the maximum nominal power of the press, so as not to damage the parts may be calculated by reference to the relevant information.
lubricating:
The press use decentralized manner: on the left and right bearings of the crankshaft connecting rod, left guide rail and the flywheel shaft upper pates are lubricated.User in front of the machine, lubrication points should be oil, should always pay attention to when the lubrication of lubrication,found that immediately stopped refueling to avoid mechanical wear. Paying particular attention to crank bearing, guides, the lubrication of connecting rod bearing and clutch situations.
Product Parameters
| Nominal Pressure |
400KN |
| Slider Stroke |
100MM |
| Motor Power |
4000W |
| Number of Stroke |
45Time/min |
| Max Closing Height |
330mm |
| Distance Adjustment Between Slider Bottom and Work Table |
50mm |
| Distance From Slider Center to body |
500mm |
| Work Bench Size Front and Bcke*Left and Right |
640mm*420mm |
Our Adventages
Our team has been engaged in the hardware manufacturing industry for more than 20 years, focusing on providing production line equipment and technical support for kitchen sink products and kitchen hardware products. We are proficient in the entire production line technology of hardware factories, including metal coil rolling, heat treatment, stamping dies, laser cutting, slotting, bending, welding, grinding, polishing, cleaning, spraying, etc.Since entering foreign trade more than ten years ago, we have provided one-stop production line equipment, molds and leading technical support for hardware manufacturers around the world.Our advantages are: Professionalism creates value. Leading technology, efficient professional services throughout the whole process, and the most competitive prices.
Our tenet is: To become the most trusted technical partner of global hardware manufacturers !
After Sales Service
We are committed to providing you with all-round and high-quality after-sales service, so that you have no worries when using our products.
We are well aware of the importance of after-sales service to customers and always adhere to the customer-centered principle and solve problems for you with professional, efficient and considerate service. Choosing our products means choosing a sense of security and guarantee.

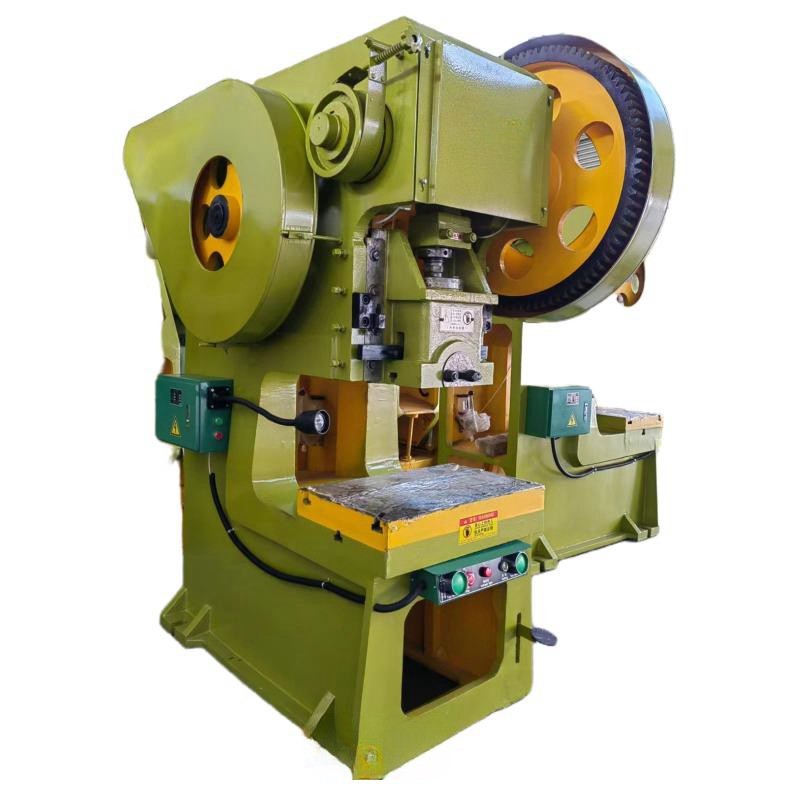

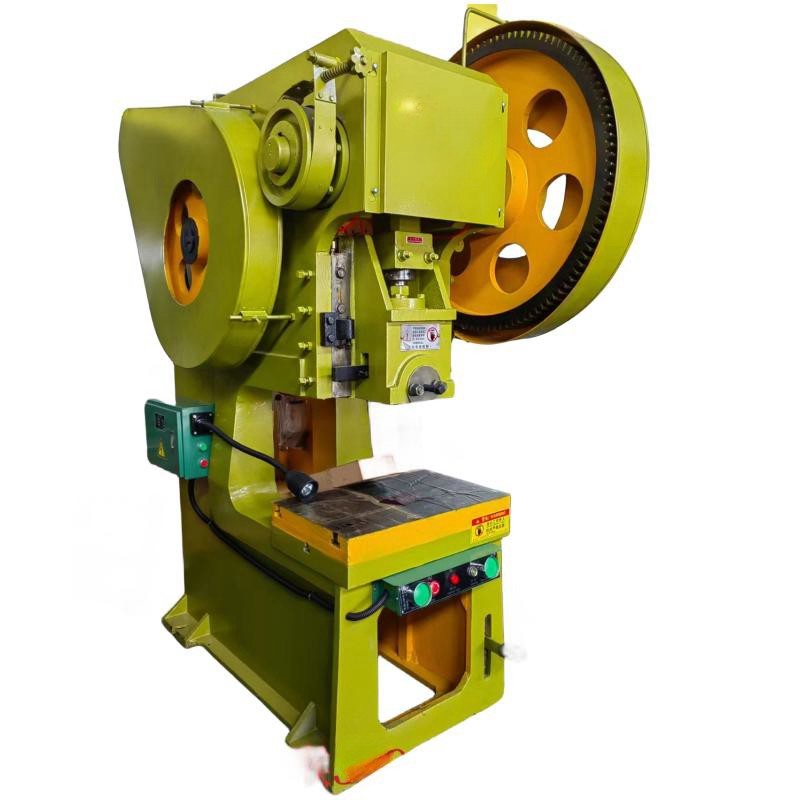

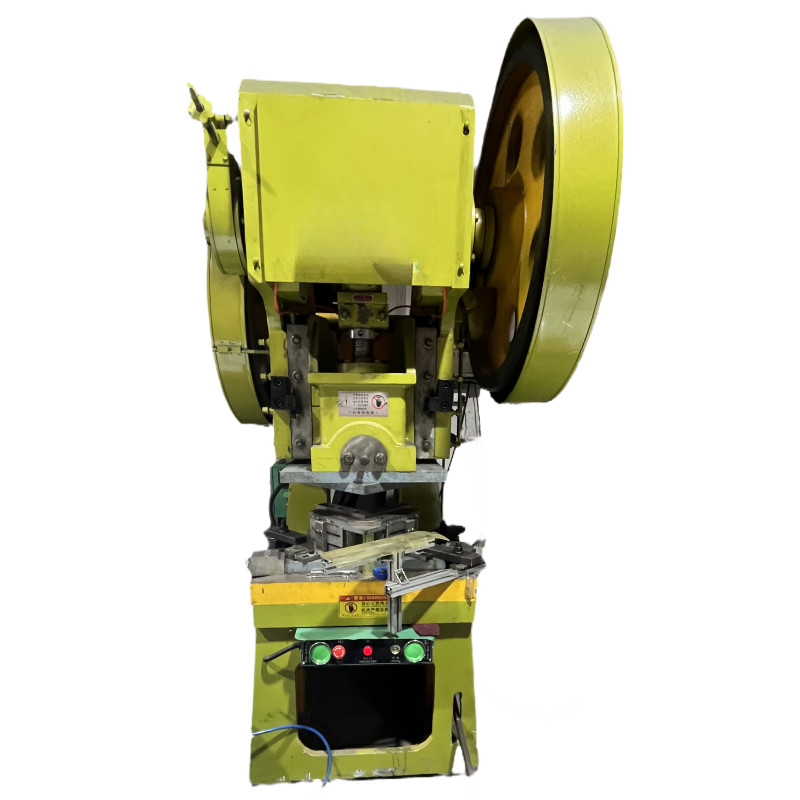

Product Photos
