Product Description

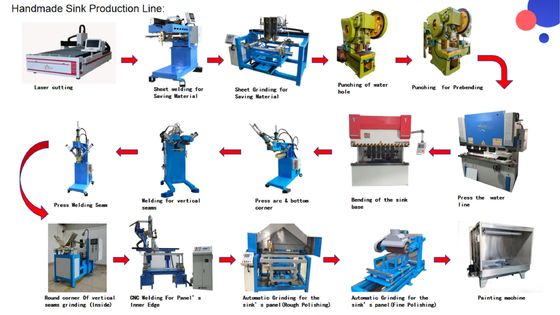

| Process term | Process introduction | Machine | Machine size |
Floor space: |
Power (Kw) |
| Process 1 | Steel Coil Laser cutting | Laser cutter line | 12000x2600x1950mm |
17 x 2.6 |
45 |
| Process 2 | Sheet welding for Saving Material | Straight Seam Welding Machine | 1400x1100x2000mm | 1.4x 1.1 | 0.4 |
| Process 3 | Sheet Grinding for Saving Material | Sheet Grinding Machine | 2250x1550x1800mm | 2.3x1.6 | 3.2 |
| Process 4 | Punching of water hole | Deep throat Press machine/J21S-40T | 1500x1200x2000mm | 1.5x1.2 | 4 |
| Process 5 | Punching for Prebending | Deep throat press machine/J21S-63T | 1700x1400x2200mm | 1.7x1.4 | 4 |
| Process 6 | Press the water line | Bending machine/30T-1600MM | 2600x1400x2000mm |
2.6x1.4 |
3 |
| Process 7 | Bending of the sink base | Bending machine/63T-2500MM | 2800x1700x2350mm |
2.8x1.7 |
5.5 |
| Process 8 | Press arc & bottom corner | Two-In-One Integrated Rolling Seam&Corner Pressing Machine | 1300x750x2000mm | 1.3x0.75 | 2.3 |
| Process 9 | Welding for vertical seams and bottom corner | CNC Welding Special Machine | 1400x1100x2000mm | 1.4x1.1 | 0.4 |
| Process 10 | Round corner Of vertical seams grinding (Inside) | Grinding Machine For Round corner Of vertical seams | 2550x850x2200mm | 2.6x0.85 | 2.3 |
| Process 11 | Repair the Panel's missing corners | CNC Welding Special Machine(for panel repair) | 1100x850x1450mm | 1.1x0.85 | 0.4 |
| Process 12 | CNC Welding For Panel's Inner Edge | Multi-Axis CNC Welding Special Machine (For panel's inner edge) | 1700x1400x1600mm | 1.7x1.4 | 1.3 |
| Process 13 | Grinding for the sink's panel | Grinding machine (Abrasive belt type) | 2500x1400x1700mm | 2.5x1.4 | 3 |
| Process 14 | Grinding for the sink's panel(mirror surface) | Grinding machine | 3000x1400x1700mm | 3x1.4 | 3 |
| Process 15 | Painting For Sink Bottom Back Side | Manual painting equipment | 2200x1800x1600mm | 2.2x1.8 | 4.5 |
| Process 16 | Drying after Painting | Drying Oven | 13000x1000x1600mm |
13x1 |
30 |
Our Adventages
The machines on the sink production line we designed have the advantages of high precision, high efficiency and strong stability. It can precisely process various parts of the sink to ensure consistent dimensions. High degree of automation reduces manual operations, improves production efficiency and reduces costs. At the same time, the machine is sturdy and durable, easy to maintain, and provides reliable guarantee for sink production.
After Sales Services
We are committed to providing you with all-round and high-quality after-sales services as the following picture, so that you have no worries when using our products.
