The Functional Operation Of The Double-headed External Abrasive Sander Of High-efficiency Cookware Equipment

1 set
MOQ
Negotiable
Price
The Functional Operation Of The Double-headed External Abrasive Sander Of High-efficiency Cookware Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Workpiece Holding: Vacuum Adsorption
Size Of Workpiece: 59400mm×300mm(Dia.xH)
Size Of Abrasive: =2100mm×80mm(P×W)
Function: Outside Sanding For Metal Ware
Voltage: 380V/220V Optional
Motor(for The) Power: Workpiece Motor:0.75kwx2
Environment protection: Yes
Material: Steels
Weight: About 2.3T
Dimension: 4000mm×1600mm×1550mm(L×W×H)
High Light:

External Abrasive Sander Cookware Equipment

,

High-efficiency Cookware Equipment

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: 2MB5410
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

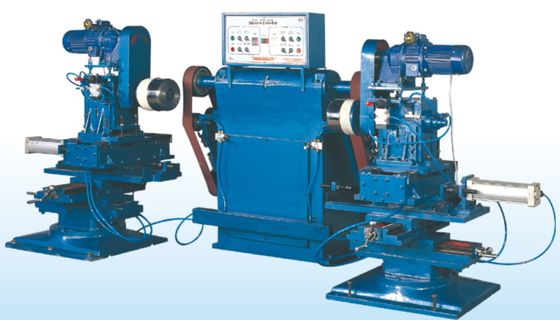

The functional operation of the double-headed external abrasive sander of high-efficiency cookware equipment.

Easy operation, stable performance and safety. The machine equipped one bipolar machine
and triangle belt driving device, with which ensure the abrasive running high speed. The
machine can be operated by two operator at the same time for rough sanding and semi-
mirror sanding.

The cookware polishing machine is usually composed of a motor, a polishing wheel, a control system, and the like. After starting the machine, the motor drives the polishing wheel to rotate at a high speed.
Place the cookware that needs to be polished in an appropriate position and make contact with the high-speed rotating polishing wheel. The polishing wheel is usually attached with polishing materials such as sandpaper and polishing paste.
Under the rotational friction of the polishing wheel, the rough parts on the surface of the cookware are gradually removed, making its surface smooth and flat, thereby achieving the polishing effect. At the same time, the control system can adjust parameters such as the rotational speed and pressure of the polishing wheel to adapt to the polishing needs of different cookware and different polishing stages. Through continuous friction and trimming, the cookware finally presents a bright and beautiful appearance. In the entire process, the operator needs to monitor and adjust according to the actual situation to ensure the polishing quality and work safety.
The following are some of the main functions of the kitchenware polishing machine:
Improving surface quality: Making the surface of kitchenware smoother and brighter, removing scratches, flaws, etc., and improving the appearance quality.
Enhancing cleanability: The smooth surface is not easy to be stained with stains and is easier to clean and maintain hygiene.
Increasing glossiness: Giving good gloss to kitchenware and making it more attractive.
Improving corrosion resistance: To a certain extent, enhancing the resistance ability of the surface of kitchenware to corrosion factors.
Improving the touch: Making the touch of the surface of kitchenware more delicate and comfortable.
Increasing product value: Kitchenware that has been polished often has higher value and competitiveness in the market.
主要技术参数 Main Technical Parameters:
产品型号Model 2MB5410   电机功率Motor (for the)Power 沙带电机Sanding belt Motor:5.5kw×2
工件电机Workpiece Motor:0.75kw×2
功能Function 金属器皿的外侧表面砂光
outside sanding for metal ware
转速Speed 工件转速Speed of Workpiece:28~140r/min
(可调Adjustable)
砂带线速Speed of belt:27m/s
工件尺寸Size of Workpiece ≤φ400mm×300mm(直径×高)(Dia.×H)

  工件夹持形式Workpiece Holding 真空吸附Vacuum Adsorption
窘带尺寸Size of Abrasivebelt =2100mm×80mm(周长×宽度)(P×W)

    外形尺寸Dimension 4000mmx1600mm×1550mm(长×宽×高(L×W×H)
整机重量Weight 约2.3T about 2.3T
