Energy-Saving And Adaptable Kitchen Sink Machine For Perfect Forming

1 set
MOQ
Negotiable
Price

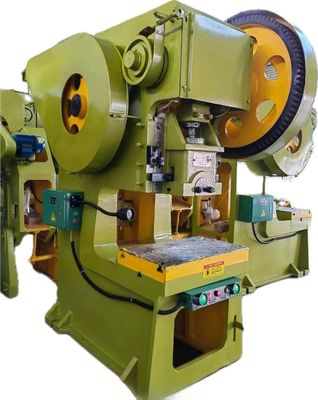

Energy-Saving And Adaptable Kitchen Sink Machine For Perfect Forming
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Pressur: 630KN
Slide Stroke: 100MM
Machine Type: Stamping Machine
System: Mechanical Rotation
Voltage: 380V/220V Optional
Number Of Stroke: 50Times/min
Workbench Size Front And Back*leftandright: 430*700 MM
Motor Power: 4KW
Colour: Green
Environment protection: Yes
Material: Steels
High Light:

Adaptable Kitchen Sink Machine

,

Mechanical Rotation Kitchen Sink Machine

,

Energy-Saving Kitchen Sink Machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: J21S-63T-1
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

Energy-Saving and Adaptable Kitchen Sink Machine for Perfect Forming
Advantage characteristics:



  • High production efficiency: It can quickly complete the sink stamping process and shorten the production cycle.
  • High-precision forming: Ensure the accuracy of the shape and size of the sink.
  • Strong stamping force: Adapt to the stamping of plates of different thicknesses and materials.
  • Stable and reliable: Stable operation for a long time and reduce the occurrence of faults.
  • High degree of automation: It can realize automated production and reduce the labor intensity.
  • Energy-saving and low-consumption: Effectively reduce energy consumption.
  • Strong mold adaptability: It can be matched with a variety of molds to meet different sink design requirements.



Production operation process:



  • Plate preparation: Place the appropriate plate on the workbench of the stamping machine.
  • Mold installation: Install the corresponding sink mold according to the production needs.
  • Parameter setting: Set the pressure, stroke and other parameters of the stamping machine.
  • Start stamping: Press the start button, and the machine starts to perform the stamping action.
  • Forming inspection: After stamping is completed, check the forming quality of the sink.
  • Unloading and collection: Take off the stamped sink and carry out collection and sorting.
  • Equipment maintenance: Regularly maintain and maintain the stamping machine to ensure its good performance.

Precision Carbon Steel Sink High-Efficiency Performance Stamping Machine Equipment Factory.

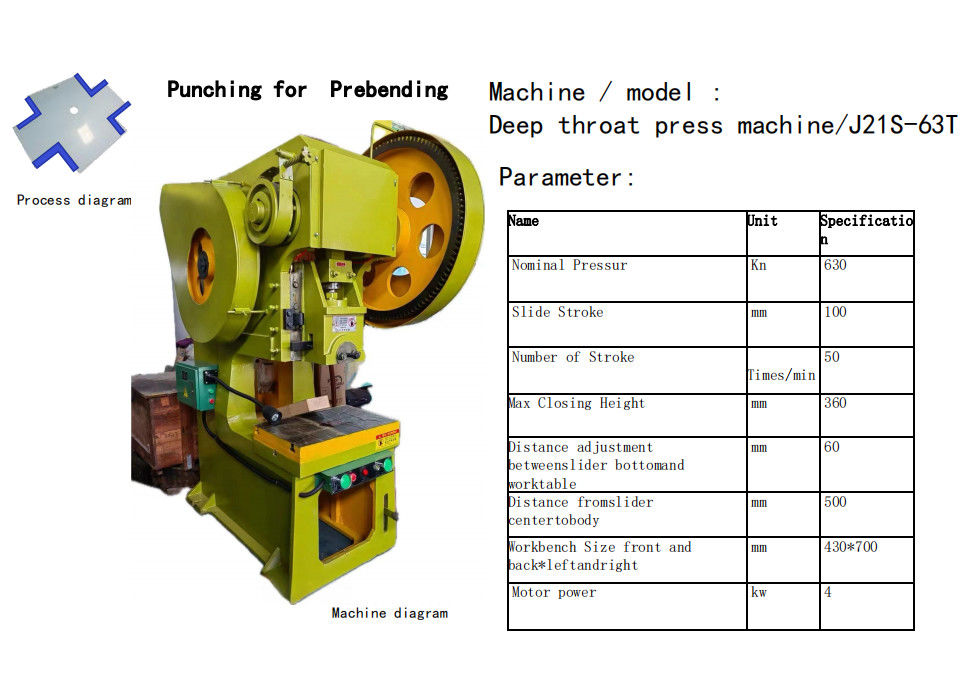

Machine / model :
Deep throat press machine/J21S-63T

Service Instructions





NO.



Name



Unit



Specification



1



Nominal Pressur公称压力



Kn



630



2



Slide Stroke滑块行程



mm



100



3



Number of Stroke滑块行程次数



Times/min



50



4

Max Closing Height封闭高度



mm



360



5

Distance adjustment betweenslider bottom

and worktable

滑块底面与工作台间距离调节量



mm



60



6

Distance from slider center to body 滑块中心至机身距离



mm



500



7

Workbench Size front and back*left and right 工作台尺寸



mm



430*700



8

Shouk Dimension diameter*depth

模柄孔尺寸



mm



50



9



Thickness of the Wokbench垫板厚度



mm



80



10

Blanking hole落料孔



Mm



160

Energy-Saving And Adaptable Kitchen Sink Machine For Perfect Forming 0Energy-Saving And Adaptable Kitchen Sink Machine For Perfect Forming 1
