Excellent Supplier Of New-type Automated Metal Sink Production Line Equipment Solutions

1 set
MOQ
Negotiable
Price
Excellent Supplier Of New-type Automated Metal Sink Production Line Equipment Solutions
Features Gallery Product Description Request A Quote
Features
Specifications
Slide Stroke (mm): 1100
Return Force (kN): 4500 KN
Machine Type: Hydraulic Press Machine
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2200*2400*4200mm
Weight (T): 3.7T
Motor Power (kw): 32 Kw
Colour: Blue
Environment protection: Yes
Material: Steels
High Light:

New Type Metal Sink Production Line

,

Metal Sink Production Line Equipment

,

Automated Metal Sink Production Line

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: YZ28G0200T
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

Excellent Supplier Of Sink Production Line Equipment Solutions

The solution of sink production line equipment covers the entire process from raw material selection to finished product manufacturing, including the configuration of advanced equipment, process optimization, the integration of intelligent control systems, efficient production layout planning, and professional technical support and after-sales service and otheraspects, aiming to create an efficient, high-quality and reliable sink production line for customers.
The equipment of the sink production line usually includes the following devices:


Stamping machine: It is used to stamp and form the sheet metal to form the approximate shape of the sink. Bending machine: Bend the sheet metal to shape the edge and structure of the sink. Welding equipment: Weld and connect various components. Grinding equipment: Grind the welded parts and other places to make the surface smooth. Polishing equipment: Further improve the surface finish of the sink. Cutting equipment: It is used to cut the raw materials. Transmission equipment: Such as conveyor belts, etc., which are used to transfer workpieces in the production line. Surface treatment equipment: For example, equipment for coating, electroplating and other treatments. Detection equipment: Conduct quality inpection on the produced sinks.

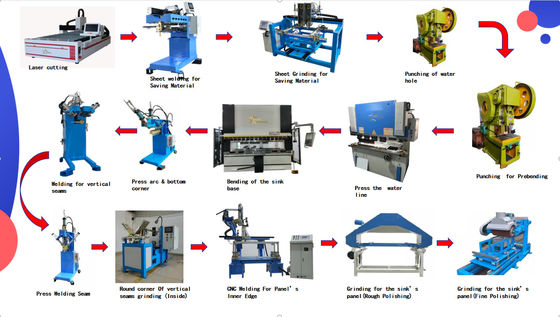

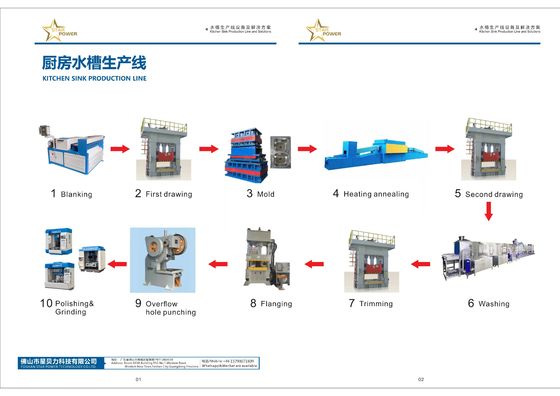

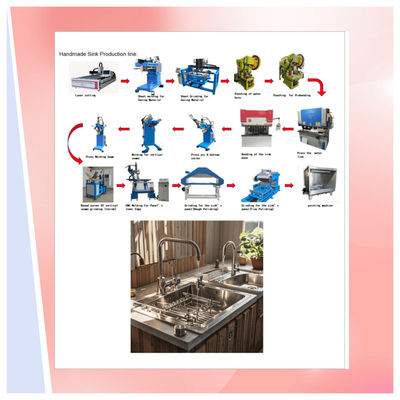

The production process of the sink production line equipment is roughly as follows:
First, the raw materials (usually metal sheets) are cut into appropriate sizes and shapes through cutting equipment.
Then, the stamped sheet after cutting is used for stamping and forming by a stamping machine to initially form the contour of the sink.
After that, the sheet metal is bent by using a bending machine to shape the edge and structure of the sink.
Subsequently, various components are transported to the welding station and welded and connected through welding equipment.
After the welding is completed, the grinding equipment is used to grind the welded parts and other parts to remove the weld seams and rough surfaces and make the surface smooth.
Then comes the polishing step, and the surface finish and texture of the sink are further improved through the polishing equipment.
During the production process, there may also be surface treatment links, such as coating, electroplating and other operations to enhance performance or improve appearance.
Finally, the produced sinks are quality inspected through detection equipment to ensure compliance with relevant standards and requirements, and qualified products can be packaged and put into storage or enter the market for sale.
Of course, the specific production process may vary due to different sink types, production techniques and equipment configurations.



Specifications:



Description
K2800# glass slab cutting machine 1
Auto cutting in length and width.
Advantage: safe operation.
Operator: 1 person.
loading max size 1950x2440x7mm
loading min size 1500x2000x3mm
suction depth 800mm
loading depth 900mm
cutting thickness 3-7mm
loading speed 8s/pc
cutting speed. 6-8s/pc
working air pressure 6kg
power 6kw
overall size 3200x2750x1300





Advantages:







Excellent Supplier Of New-type Automated Metal Sink Production Line Equipment Solutions 0Excellent Supplier Of New-type Automated Metal Sink Production Line Equipment Solutions 1
