Automatic Glass Lid Steel Ring Making Machine Factory Direct Sale

1 set
MOQ
Negotiable
Price
Automatic Glass Lid Steel Ring Making Machine Factory Direct Sale
Features Gallery Product Description Request A Quote
Features
Specifications
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2200*2400*4200mm
Weight (T): 3.5 T
Motor Power (kw): 10 Kw
High Light:

factory direct sale Ring Making Machine

,

Automatic Ring Making Machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: YZ28G0200T
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

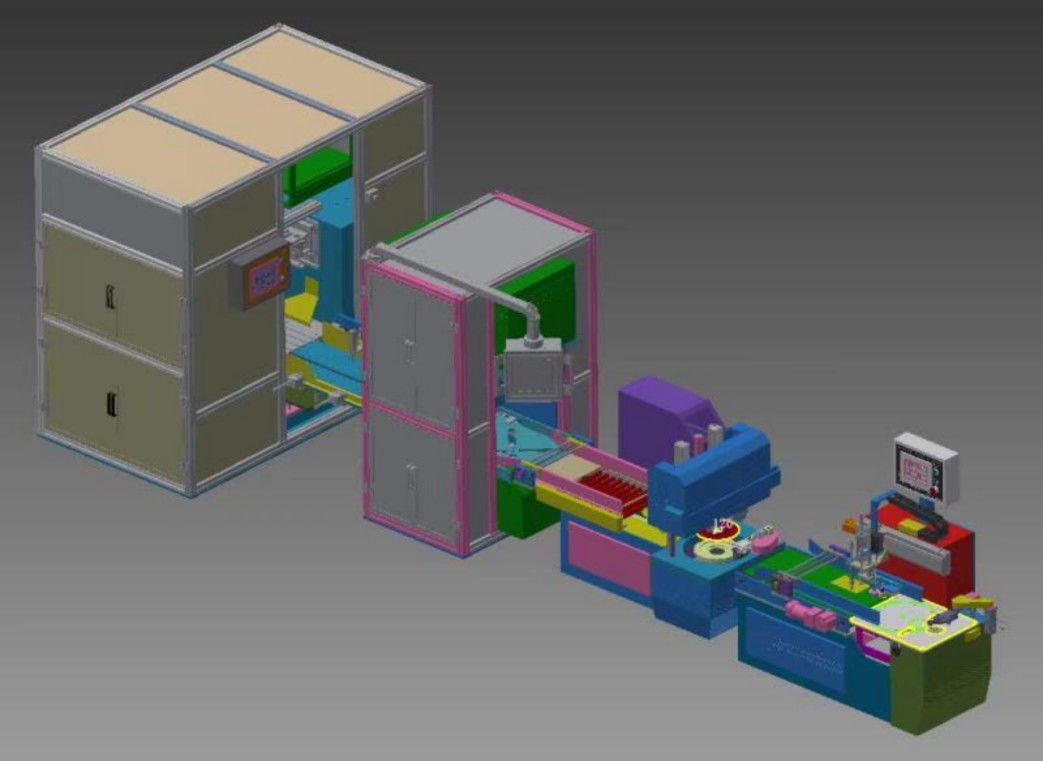

Automatic Glass Lid Steel Ring Making Machine factory direct sale



The machine consists of the following units



名 称 N am e 型号
Model
参数
Parameters
备件
Spare parts
全自动激光焊机
Automatic laser welding machine
JSH-JG60 SS perimeter 100-380mm Laser mirror 石英石Imported quartz stone
SS width 10-50mm Buffer 亚德客AirTAC
SS Thickness (mm 0.19-0.5mm Plane head
Machine size (mm 2000x1900x1950mm Welding Lens 兴宏Xinghong
Max current 40A Pneumatic cylinder 亚德客AirTAC
Power (KW) 4kw Solenoid valve 亚德客AirTAC
Welght(KG 1450kg Electrical Control Panel 繁易
tolerance% 0.03MM Big sucker
工作效率efficiency 8-10s/Strip Little sucker 自主开发
Ouput(day)10小时 5000/Days Cutter guide wheel NSK
自动卷边机
Automatic side rolling machine
JSH-JB370 Machine size (mm 1300x1200x1900mm PLC program controller 合达DELTA
Max current 40A
Power (KW) 3kw
Weight (KG) 850kg
自动拉伸机
Automatic tensile machine
JSH-LB330 Machine size (mm 1200x1250x1100mm
Max current 40A
Power (KW) 1.5kw
Weight(KG 350kg
自动压边机
Automatic edge pressing machine
JSH-YB370 Machine stze(mm 1350x1200x1450mm
Max current 40A
Power (KW) 1.5kw
Weight(KG) 280kg



Product Description:

Adavantages:
1. save 1 operator
2.easy operation







Quick Details:





Automatic Angle Flattening Machine for Glass Lid Making
Function: for stainless steel ring angle flattening, for G type tempered glass lid auto production line.





Specifications:



Type:
Cookware Parts
Place of Origin:
China
Suitable for:
edge angle flattening for steel ring
Material:
Steel
Capacity:
650-750pcs/hour
steel ring size diameter:
120-330mm
Ring width:
18mm-30mm
Dimension:
1100mm*1155mm*1615mm
Commercial Buyer:
Caterers & Canteens, Restaurants, Fast Food and Takeawa



Advantages:
