0.2 ~ 2.0×1400 Steel Coil Precision Slitting Machine Made In China High - Speed Slitting Machine
Product Description:
chinese slitting machine,0.2 ~ 2.0×1400 steel coil precision slitting machine made in China high-speed slitting machine,
Foshan is a famous metal manufacturing city with mature and advanced machine technology and reasonable prices,
The accessories of the machine are the world famous brand, the machine structure design is reasonable, fully consider the reliability of operation, convenience and safety of operation, superior performance, reasonable price, exported to all over the world.
Quick Detail:

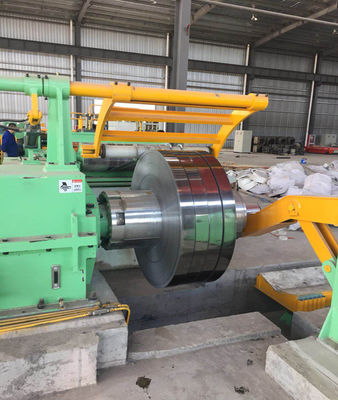

The machine is used for unwinding the coiled metal strip, cutting it into the required width along the longitudinal direction, and then rewinding it. The equipment is simple to operate, good accuracy, stable performance!
You can send your ideas about your needs to me at cid100@126.com
Specification:
| slitting material | aluminum plate, galvanized cold rolled plate |
| Slitting coil thickness | 0.2mm ~ 2.0mm aluminum plate, 0.2mm ~ 1.5mm galvanized cold rolled plate |
| Slitting coil width | 1350mm |
| Coil inner diameter (feed) | Φ460mm ~ Φ520mm (hydraulic uncoiler) |
| Coil outer diameter (Max) | Φ1800mm |
| Coil weight | the maximum feed coil weight is 8 tons, the maximum discharge weight is 8 tons |
Advantages:
Equipment capacity:
1. slitting material: aluminum plate, galvanized cold rolled plate
2. Slitting coil thickness: 0.2mm ~ 2.0mm aluminum plate, 0.2mm ~ 1.5mm galvanized cold rolled plate
3. Slitting coil width: 1350mm.
4. Coil inner diameter (feed) : Φ460mm ~ Φ520mm (hydraulic uncoiler)
(Discharge) : Φ480mm ~ Φ508mm (hydraulic coiler)
5. Coil outer diameter (Max) : Φ1800mm.
6. Coil weight: the maximum feed coil weight is 8 tons, the maximum discharge weight is 8 tons.
7. Width tolerance: ≤±0.05mm
8. Straightness: ≤1mm/2000mm
9. Cutting speed: 0 ~ 60M/min.
10. Number of strips: board thickness 2.0mm at a time divided into 4-5 pieces
11. Other device parameters
(1) Power source: 380V/50HZ three-phase five-wire
(2) Installed capacity: about 109KW
(3) The total weight of the equipment: about 22 ~ 26 tons
(4) Equipment size (length × width × height) : 16 meters ×8 meters ×3 meters
(5) Drive motor:
loading trolley: ordinary motor AC1.1KW
Uncoiler: ordinary motor :AC7.5KW
Slitting machine: ordinary motor AC37KW
Winder machine: common motor AC55KW
Discharge trolley: ordinary motor AC1.1KW
Hydraulic station: general motor AC7.5KW
(6) Unit direction: from (left) to (right) (positive direction machine) facing the operating station
(7) Production and operation personnel: 2 technical workers 1 general staff
(8) Equipment color and equipment nameplate information: customer to be determined
2. Equipment composition:
1. One feeding trolley
2. 1 set of hydraulic uncoiler
3. Group 1 of looping bridge
4. One side guide and stripe machine
5. Scrap coiler 1 set
6. Looping bridge group 1
7. Double spacer shaft, 1 set of hydraulic tension station
8. 1 set of hydraulic coiler
9. One discharging trolley
10. 1 hydraulic system
11. Electric control system 1 set
12. 1 set of accessories
