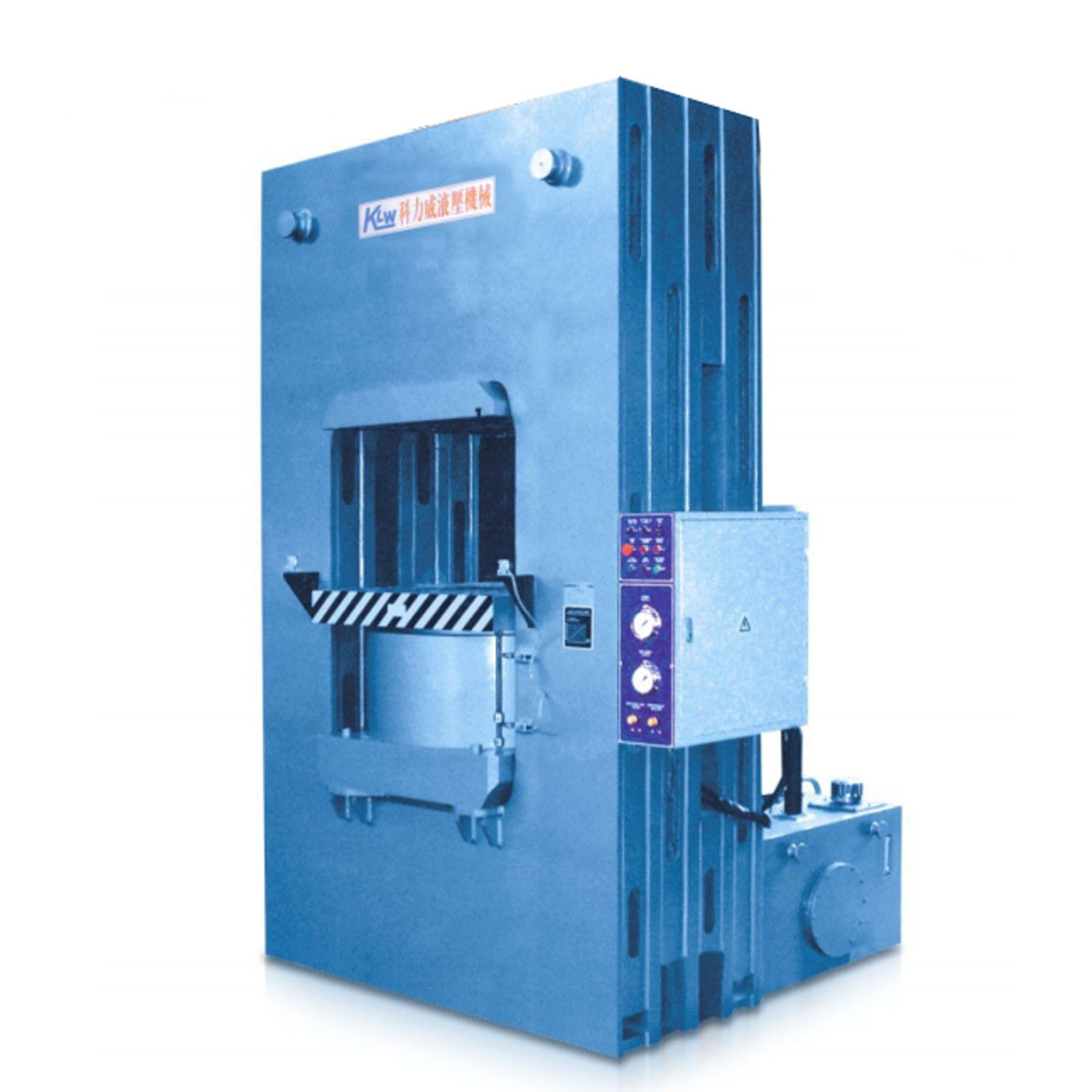

Stainless Steel Durability Stretch Cookware Upper Top Frame Hydraulic Press Machine

1 set
MOQ
Negotiable
Price
Stainless Steel Durability Stretch Cookware Upper Top Frame Hydraulic Press Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Force: 20000KN
Liquid Maximum Working Pressure: 40Mpa
Maximum Stroke: 250mm
The Maximum Distance From The Work Surface To The Beam: 600mm
Table Up Speed: 80/120mm/s
Motor Power: 37+3KW
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: YDK-2000T
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

Stainless Steel Durability Stretch Cookware Upper Top Frame Hydraulic Press Machine





The equipment is widely used in metal products, embossing, complex mold at theend ofthe industry and other products molding.





Product Description:



1. The overall steel plate structure frame, with sufficient steel.

2. no-load upstream speed, fast boost power consumption low.

3. accessories with imported parts, high degree of durability. Equipped with photoelectric protection device.





Quick Details:

Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.





Specifications:

Quantity(sets) 1 - 1 >1
Lead time (days) 180 To be negotiated



Applicable areas:



1. hardware products,embossed, complex mold and other complex products with the use of molding.
2. Typical products are: watch case, strap, chain machine, glasses accessories, Western tableware, all kinds of badges, commemorative coins, heating pipe molding, stainlesssteel products, shallow stretch bulge and various spare parts correction Assembly and so on.



Main technical parameters:



Projects YDK-2000T
Nominal force(KN) 20000
Liquid maximum working pressure(Mpa) 40
Maximum stroke(mm) 250
The maximum distance from the work surface to the beam(mm) 600
Table up speed(mm/s) 80/120
Motor power(KW) 37+3
Workbench effective area(mm) About:1000           Before and after:1000
Dimensions (approx.)(mm) About:2330            Before and after:2360      HIgh:3585

The technical parameters listed above are subject to change without notice, can be customized according to the requirements of customer technical parameters.
