Metal Kitchen Sink Under Pressure Frame Hydraulic Press Machine Plastic Toy Model

1 set
MOQ
Negotiable
Price
Metal Kitchen Sink Under Pressure Frame Hydraulic Press Machine Plastic Toy Model
Features Gallery Product Description Request A Quote
Features
Specifications
Nominal Force: 7000KN
Liquid Maximum Working Pressure: 25Mpa
Maximum Stroke: 200mm
The Maximum Distance From The Work Surface To The Beam: 500mm
Table Up Speed: 80mm/s
Motor Power: 15KW
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: YDK-800T-S
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

Metal Kitchen Sink Under Pressure Frame Hydraulic Press Machine Plastic Toy Model





The machine is equipped with no load fast by the mold, slow suppression of themachine has high efficiency, low energy consumption, easy operation, smoothwork, safety and so on.





Product Description:



1. The overall steel plate structure frame, with sufficient steel.

2. With no load downlink speed, boost speed agility, because the down is by the plungelweight decline, so the power consumption is low.

3. accessories with imported parts ofa high degree of durability. Equipped withphotoelectric protection device.





Quick Details:

Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.





Specifications:

Quantity(sets) 1 - 1 >1
Lead time (days) 180 To be negotiated



Applicable areas:



1. metal products, embossing, complex mold manufacturing and other industries used.
2. metal parts ofthe printing, forming, shallow stretch, notch, trimming and so on.
3. plastic toys, all kinds ofsteel products on the plastic handle accessories.
4.  Auto parts stamping, forming and so on.
5. cold extrusion of metal containers, such as sports pots, capacitor shell and fireextinquishershelland so on.



Main technical parameters:



Projects YDK-800T-S
Nominal force(KN) 7000
Liquid maximum working pressure(Mpa) 25
Maximum stroke(mm) 200
The maximum distance from the work surface to the beam(mm) 500
Table up speed(mm/s) 80
Motor power(KW) 15
Workbench effective area(mm) About:820            Before and after:820
Dimensions (approx.)(mm) About:1650            Before and after:1586      HIgh:2400

The technical parameters listed above are subject to change without notice, can be customized according to the requirements of customer technical parameters.

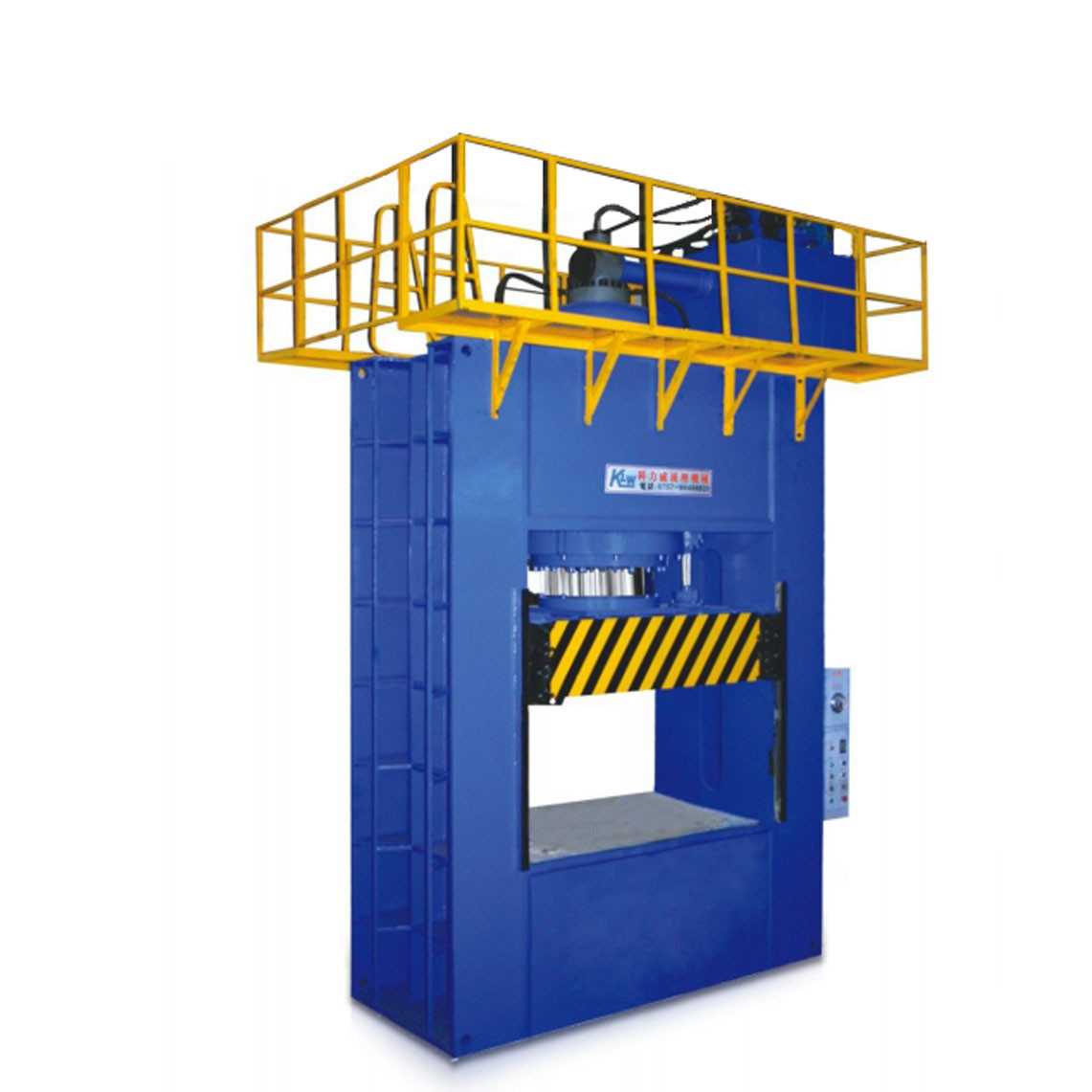

Metal Kitchen Sink Under Pressure Frame Hydraulic Press Machine Plastic Toy Model 0

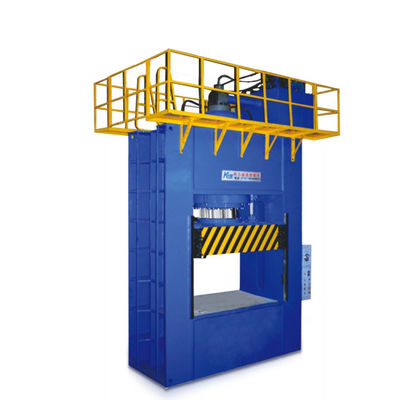

Metal Kitchen Sink Under Pressure Frame Hydraulic Press Machine Plastic Toy Model 1
