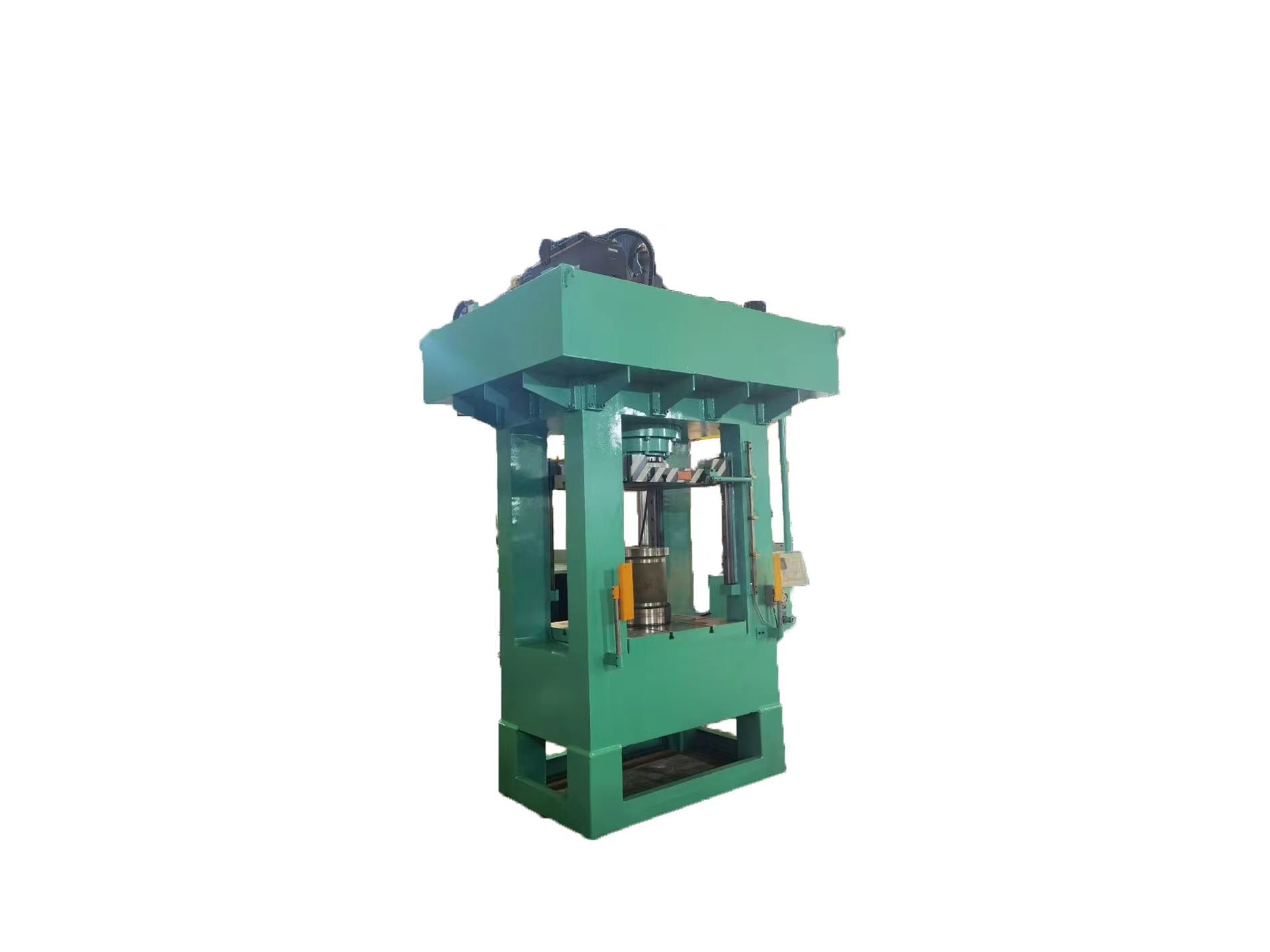

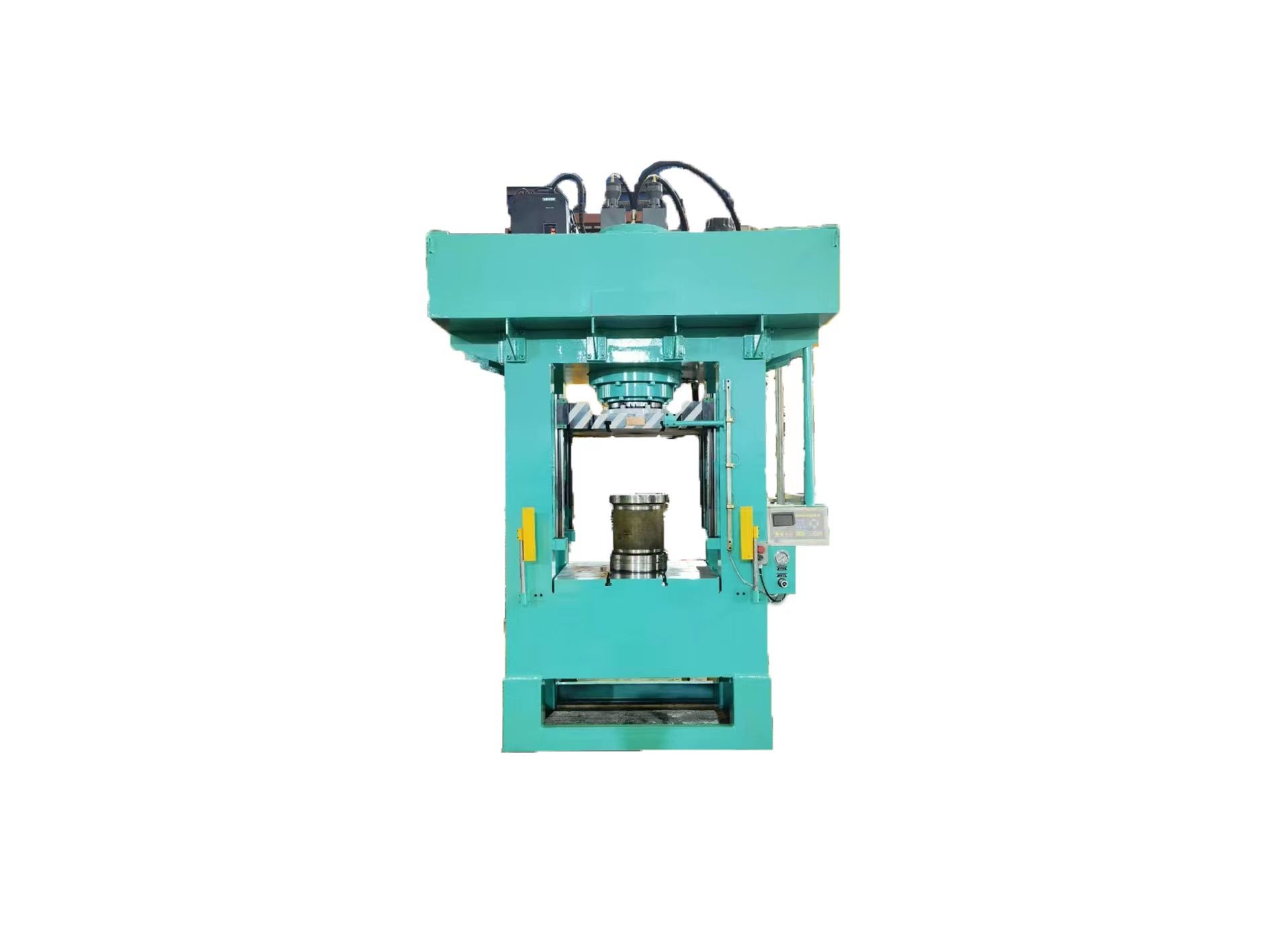

Manufacturer 150T Automatic Stretch Metalware Cookware Hydraulic Press Machine
This equipment is widely used in the pressing process of Jin Li materials, such as sheet drawing, bending, flanging, forming and other stamping process.
Product Description:
The machine is equipped with no-load fast die, slow suppression, the machinehashigh efficiency, low energy consumption, easy operation, smooth work, safety andso on.
Quick Details:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Specifications:
| Quantity(sets) | 1 - 1 | >1 |
| Lead time (days) | 180 | To be negotiated |
Applicable areas:
Metallic and non-metallic materials (is watches, bicycles, motorcycles, tableware,kitchen utensils, auto parts, rubber products, grinding wheel, buttons, gold and silverjewelry, ceramics,powder metallurgy, etc.) Plastic material stamping work.
Main technical parameters:
| Projects | Y33-150T |
| Preset pressure(KN) | 1500 |
| Maximum system pressure(Mpa) | 22 |
| Activity table trip(mm) | 160 |
| Opening height(mm) | 180 |
| Active table speed(mm/s) | 135 |
| Active table return speed(mm/s) | 115 |
| Return cylinder nominal pressure(KN) | 70 |
| Ative table active area(mm) | About:430 Before and after:450 |
| Pump flow(L/min) | 14.4 |
| Motor power(KW) | 5.5 |
