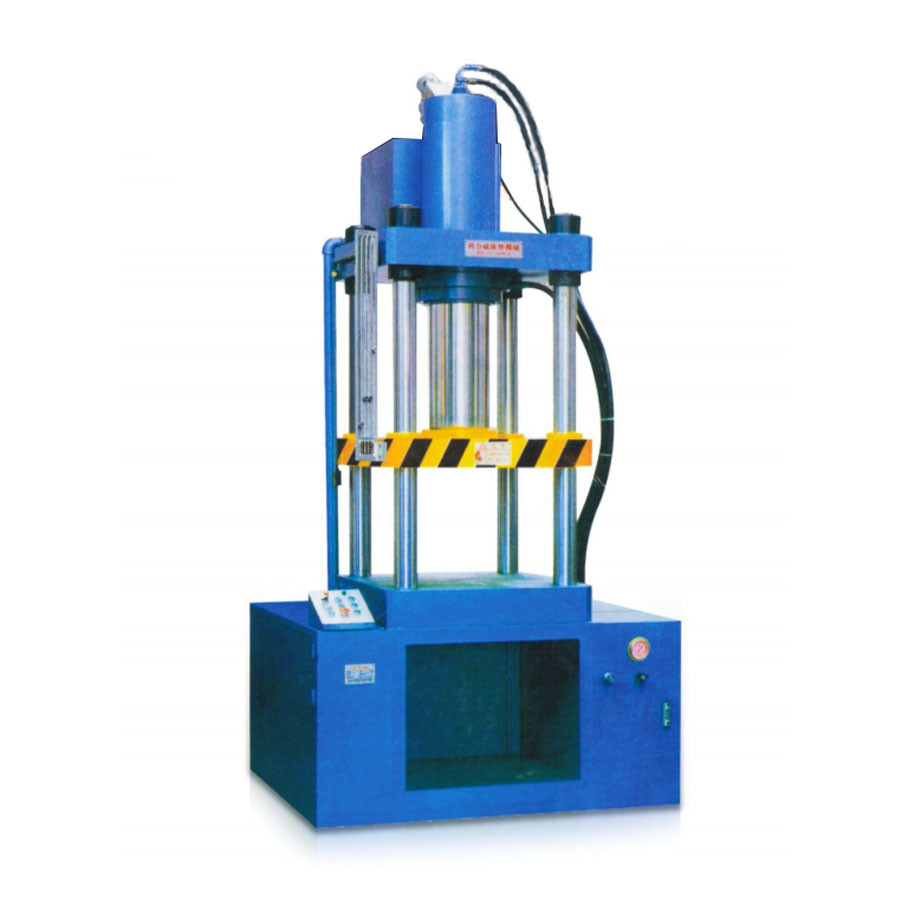

CNC Automatic Stretch Hydraulic Press Machine Vertical Aluminum Kitchen Sink

1 set
MOQ
Negotiable
Price
CNC Automatic Stretch Hydraulic Press Machine Vertical Aluminum Kitchen Sink
Features Gallery Product Description Request A Quote
Features
Specifications
Preset Pressure: 1500KN
Maximum System Pressure: 22Mpa
Activity Table Trip: 160mm
Opening Height: 180mm
Active Table Speed: 135mm/s
Active Table Return Speed: 115mm/s
High Light:

CNC Automatic Stretch Hydraulic Press Machine

,

Aluminum Kitchen Sink Hydraulic Press Machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: Y33-150T
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

CNC Automatic Stretch Hydraulic press Machine Vertical Aluminum Kitchen Sink





This equipment is widely used in the pressing process of Jin Li materials, such as sheet drawing, bending, flanging, forming and other stamping process.





Product Description:



The machine is equipped with no-load fast die, slow suppression, the machinehashigh efficiency, low energy consumption, easy operation, smooth work, safety andso on.





Quick Details:

Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.





Specifications:

Quantity(sets) 1 - 1 >1
Lead time (days) 180 To be negotiated



Applicable areas:



Metallic and non-metallic materials (is watches, bicycles, motorcycles, tableware,kitchen utensils, auto parts, rubber products, grinding wheel, buttons, gold and silverjewelry, ceramics,powder metallurgy, etc.) Plastic material stamping work.



Main technical parameters:



Projects Y33-150T
Preset pressure(KN) 1500
Maximum system pressure(Mpa) 22
Activity table trip(mm) 160
Opening height(mm) 180
Active table speed(mm/s) 135
Active table return speed(mm/s) 115
Return cylinder nominal pressure(KN) 70
Ative table active area(mm) About:430              Before and after:450
Pump flow(L/min) 14.4
Motor power(KW) 5.5
