Stainless Steel Hydraulic Press Machinery For Round Bottom Corner Kitchen Sink

1 set
MOQ
Negotiable
Price
Stainless Steel Hydraulic Press Machinery For Round Bottom Corner Kitchen Sink
Features Gallery Product Description Request A Quote
Features
Specifications
Rating Working Pressure Of The Hydraulic System: 18Mpa
Main Cylinder Force: 7000KN
Return Force: 30KN
Cushion Force: 4000KN
Cushion Cylinder Max.pressure: 25MPA
High Light:

Stainless Steel Hydraulic Press Machinery

,

Kitchen Sink Hydraulic Press Machinery

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: Y28-1100T
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

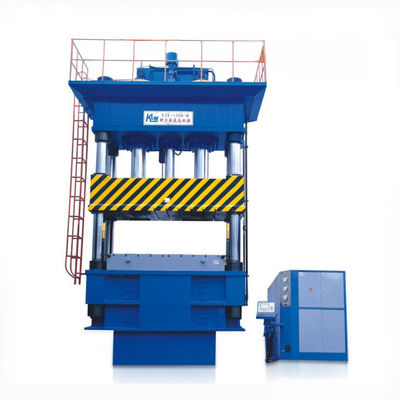

Stainless Steel Round Bottom Corner Kitchen Sink Hydraulic Press Machinery





This equipment is widely used in the pressing process of Jin Li materials, such as sheet drawing, bending, flanging, forming and other stamping process.





Product Description:



It can have enough steel, high precision, low power consumption, the mastercylinder, retractable cylinder, pressure side cylinder can achieve a single jogaction (debugging crossbar use),you can also interlock semi-automatic operation,Variable speed control, with no-load fast down, slow work by the die, drawingquickly return quickly. Pressure side of the tank to increase the speed of control.fast out ofthe return of the material when the pressure back to the adjustable size.





Quick Details:

Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.





Specifications:

Quantity(sets) 1 - 1 >1
Lead time (days) 180 To be negotiated



Applicable areas:



1. Auto parts: body cover, brake pads, fuel tanks, chassis, axle housing and so on

2. household appliances: refrigerators, washing machines, disinfection cabinet, TVparts, rice cookers, such as burning pot

3. kitchen utensils: stainless steel kitchen utensils,wash bleach,pots and other containers

4. other: security doors, motorcycles, aerospace machinery and other spare parts



Main technical parameters:



Projects Y28-1100T
Nominal force(KN) 7000
Master cylinder liquid working pressure(Mpa) 18
Blanket force(KN) 4000
Pressure side cylinder liquid working pressure(Mpa) 25
Return cylinder nominal pressure(KN) 30
Maximum travel of the movable beam(mm) 920
Maximum stroke of the blank holder(mm) 450
Maximum stroke of the return cylinder(mm) 400
Movable beam to work surface distance(mm) MAX:1500                      MIN:580
Movable beam lifting speed(mm/s) No load down: 180       Backhaul:18-9
Motor Power(KW) 75
Workbench effective area(mm) About:2000                  Before and after:1480
Dimensions(approx.)(mm) About: 2620      Before and after: 1680        High:6369
Total weight(approx.)(T) 60
