Industrial Q201 Ultra Sound cleaning machine spray system Ultrasound Decontamination Washing Line

1 set
MOQ
Negotiable
Price
Industrial Q201 Ultra Sound cleaning machine spray system Ultrasound Decontamination Washing Line
Features Gallery Product Description Request A Quote
Features
Specifications
Dimention: 20000mm×4350mm×2800mm (L×W×H)
Dryer Temp: ≤120° (adjustable And Thermostat)
Water Consumption: 2t/h
Rated Power: About 265kw
Washing Agent: De-waxing Water
Water Requirement: Tap Water
Heating Method: Electricity
Remarks: Customized Design Available
High Light:

2t/H Ultra Sound Washing Line

,

Electricity Heating Ultra Sound Washing Line

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU, ISO
Model Number: Q201
Payment & Shipping Terms
Packaging Details: Seaworthy Packing
Delivery Time: 30-50 working days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Year
Product Description

Industria Q201 Ultra Sound cleaning machine 2t/H Ultrasound Decontamination Washing Line

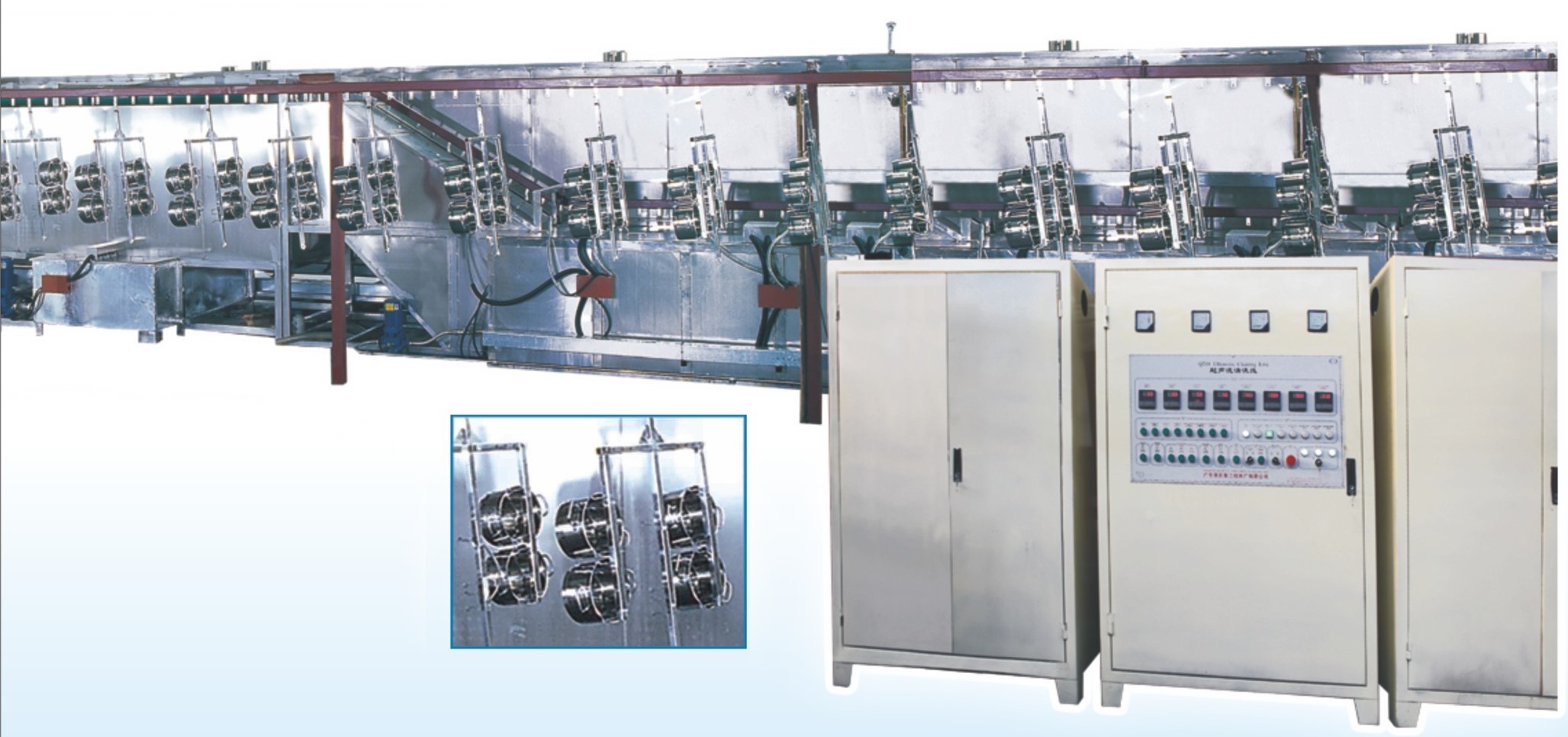

Q201 Ultra-Sound Washing Line



Product Description:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.



Quick Details:



1. Suitable for big production capacity factory.

2. The chemical agent take effect under the ultra-sound and achieve result of de-oil and de-wax, after the spray system, water with 0.2MPa pressure washing away the dirt from the work piece surface. Then blower blowes away the humidity, finally dryer will finish drying process.

3. This washing line iscompact and easy to operate, which is an ideal equipment for steel ware washing.

4. Process flows: Work piece feed-in, ultra-sound de-waxing, section 1-hot water spray, section 2-hot water spray, section 3-hot water spray, section 4- pure water spray, section 5- wind blower, section 6-hot air circulation dryer, section 7-cooling, section 8-feed out.



Specifications:



Main Technical Parameters∶
Model Q201
Dryer temp ≤120° (adjustable and thermostat)
Water consumption 2t/h
Rated power about 265kw
Washing agent de-waxing water
Water requirement tap water
Dimention 20000mm×4350mm×2800mm (L×W×H)
Heating method electricity
Remarks customized design available
