High speed 2 Station CNC double station embossing machine for cook ware exterior

1 set
MOQ
Negotiable
Price
High speed 2 Station CNC double station embossing machine for cook ware exterior
Features Gallery Product Description Request A Quote
Features
Specifications
Function: To Knurle The Surface Of Tableware
Max. Size Of Workpiece: Dia.: φ300mm×300mm (L×H)
Control System: NC Control System
Machine Power: Total Power: 16.5KW
Power Supply: Three-phase Five Line, 380V±10% 50Hz (According To Customer Requirements)
Machine Size: 2800mm×1500mm×3200mm (L×W×H)
Machine Weight: About 2.8T
High Light:

NC Hammered Finish Rolling Machine

,

16.5KW NC Hammered Finish Rolling Machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU, ISO
Model Number: φ300×300-A
Payment & Shipping Terms
Packaging Details: Seaworthy Packing
Delivery Time: 30-50 working days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Year
Product Description

2 Station CNC double station embossing machine for cook ware exterior

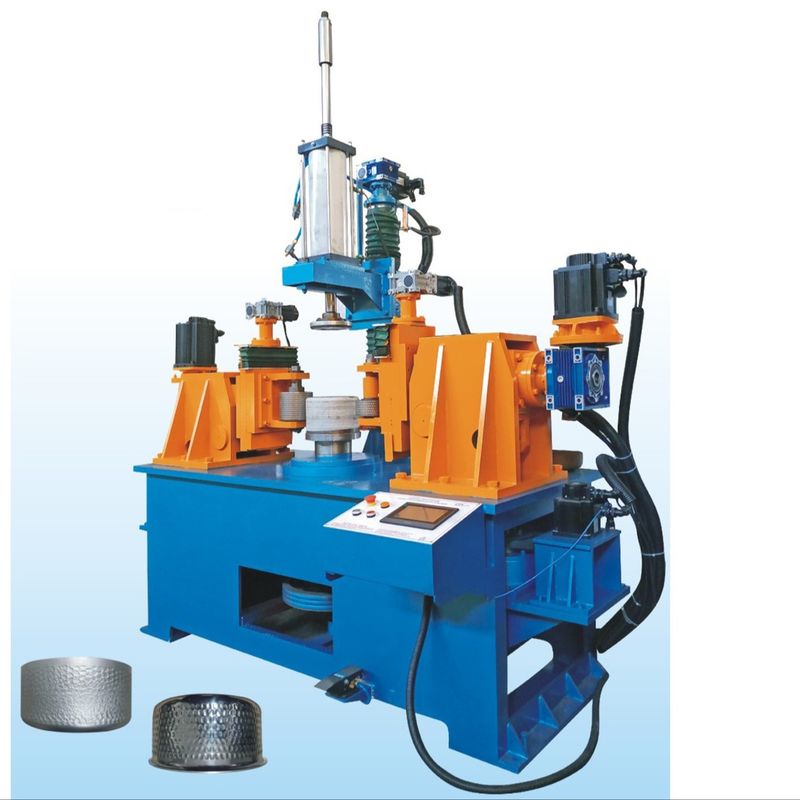

φ300×300-A 2-Station NC Hammered Finish Rolling Machine



Product Description:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.



Quick Details:



1. Mainly used for the external knurling (embossing) of the tableware.

2. The servo numerical control system is controlled with the servo numerical control system for simple operation.

3. Can store the product parameters for more than 200 types of the workpieces for the purpose of being used in subsequent production.

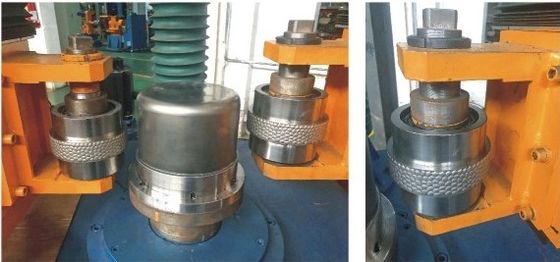

4. This machine is configured with two knurling mechanisms

5. Characterized by simple commissioning and easyt use after reasonable innovation in structure and function.

6. When replacing the products with different sizes, it is only required to replace the knurling wheel and recall the product information stored on the touchscreen, so that the machine can be automatically adjusted to the ready status and start the production.

7. Compared with conventional knurling machine, it can significantly reduce the cost and improve the work efficiency.



Specifications:



Main Technical Parameters∶
Model φ300×300-A
Function To knurle the surface of tableware
Control System NC Control System
Machine Power Total Power: 16.5KW
Power Supply Three-phase Five Line, 380V±10% 50Hz (According to customer requirements)
Machine Size 2800mm×1500mm×3200mm (L×W×H)
Machine Weight About 2.8T





More details regarding the company:

High speed 2 Station CNC double station embossing machine for cook ware exterior 0

High speed 2 Station CNC double station embossing machine for cook ware exterior 1
High speed 2 Station CNC double station embossing machine for cook ware exterior 2



Production Line:

High speed 2 Station CNC double station embossing machine for cook ware exterior 3



Products that manufactured by our machines:

High speed 2 Station CNC double station embossing machine for cook ware exterior 4High speed 2 Station CNC double station embossing machine for cook ware exterior 5

Certifications:

High speed 2 Station CNC double station embossing machine for cook ware exterior 6



Packing & Delivery:

High speed 2 Station CNC double station embossing machine for cook ware exterior 7

High speed 2 Station CNC double station embossing machine for cook ware exterior 8
