Inner Polishing Machine Mechanical Reciprocate Interior Polisher Inner Pot Making Machine 140r/min 200mm

Name: Inner Polishing Machine Mechanical Reciprocate Interior Polisher Inner Pot Making Machine 140r/min 200mm
Brand: Foshan Star Power Technology Co.Ltd
SKU: NDK-20
Price: 50,002.00 USD
Availability: InStock

Brand Name:	Star Power
Model Number:	NDK-20
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	50 Set/Sets per Year

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CU, ISO

Function:

Inner Polish For Pan (bottom, Side & Edge)

Size Of Workpiece:

≤φ400mm×250mm (Dia.×H)

Size Of Abrasive Wheel:

≤φ200mm (Dia.)

Motor (for The) Power:

Compensate Pressure Motor: 0.37kw×3

Speed:

Workpiece: 60-140r/min (Adjustable)

Waxed Way:

Automatic Spray (Non-standard, Need Increase)

Workpiece Holding:

Vacuum Adsorption

Dimention:

2200mm×2000mm×1450mm (L×W×H)

Weight:

About 2.5T

Packaging Details:

Seaworthy packing

Highlight:

200mm Dia. Internal Automatic Polishing Machine

140r/min Automatic Polishing Machine

Product Description

Inner Polishing Machine Mechanical Reciprocate Interior Polisher Inner Pot Making Machine 140r/min 200mm

NDK-20 Auto Interior Polisher

Product Description:

Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.

Quick Details:

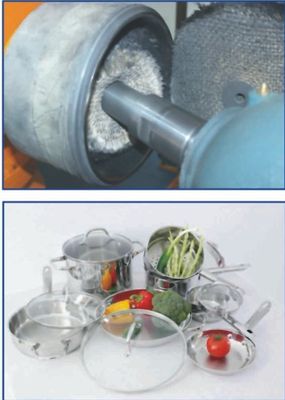

1. Widely used for polishing the medial, inner bottom surface and edge of metal ware, which adopts Computer Numerical Control (PLC) techniques and auto compensation device to achieve polishing automatically.

2. A high effiency and ideal machine for the industry.

Specifications:

Main Technical Parameters∶
Model	NDK-20
Function	Inner polish for pan (bottom, side & edge)
Size of Workpiece	≤φ400mm×250mm (Dia. ×H)
Size of Abrasive Wheel	≤φ200mm (Dia.)
Motor (for the) Power	Abrasive Wheel Motor∶ 7.5kw×1, 4kw×1 Workpiece Motor∶ 0.75kw×1 Compensate pressure motor∶0.37kw×3
Speed	Abrasive Wheel∶2900r/min Workpiece∶28~140r/min (Adjustable)
Waxed way	Automatic spray(Non-standard, need increase)
Workpiece Holding	Vacuum Adsorption
Dimention	2200mm×2000mm×1450mm (L×W×H)
Weight	About 2.5T

More details regarding the company:

Inner Polishing Machine Mechanical Reciprocate Interior Polisher Inner Pot Making Machine 140r/min 200mm 0

Production Line:

Inner Polishing Machine Mechanical Reciprocate Interior Polisher Inner Pot Making Machine 140r/min 200mm 3

Certifications:

Inner Polishing Machine Mechanical Reciprocate Interior Polisher Inner Pot Making Machine 140r/min 200mm 4

Packing & Delivery:

Inner Polishing Machine Mechanical Reciprocate Interior Polisher Inner Pot Making Machine 140r/min 200mm 5

Inner Polishing Machine Mechanical Reciprocate Interior Polisher Inner Pot Making Machine 140r/min 200mm 6
