Side surface and bottom Polishing Machine Multi-Stations Polishing Machine for Cookware pot set Polishing Machine

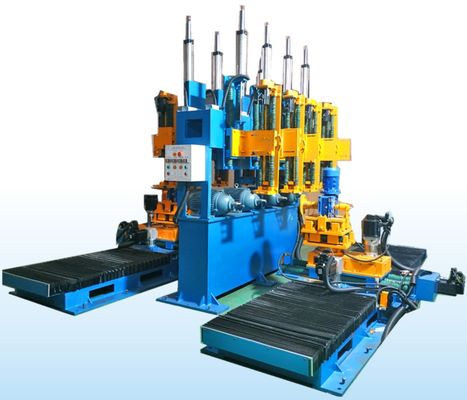

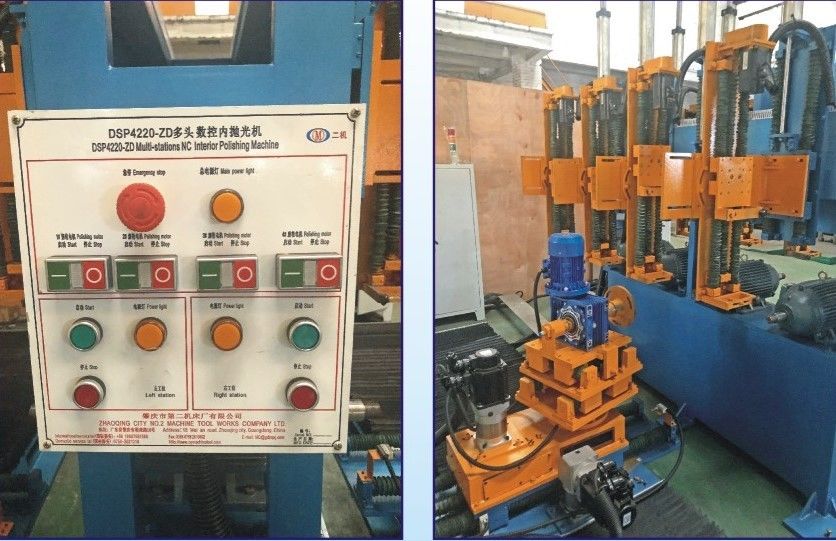

DSP4220-ZD Multi-stations NC Interior Polishing Machine
Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:
1. Mainly used for the polishing of the internal side or bottom surface of the gyratory metalware.
2. Made with new design, and is configured with two workpieces positions and eight polishing wheel sets that makes it capable of polishing in four different processes for two workpieces simultaneously.
3. Controlled by servo numerical control system, with simple operation, where every workpiece is equipped with the three-shaft servo numerical control system and the grinding wheel compensation function.
4. Significantly reduces the commissioning time and cost, and effectively improve the work efficiency compared with the conventional polishing machine.
Specifications:
| Main Technical Parameters∶ | |
| Model | DSP4220-ZD |
| Function | Pot inside polishing |
| Size of Workpiece | ≤φ400mm×300mm (Dia.×H) |
| Abrasive Wheel Speed | 2900r/min |
| Max. Size of Abrasive Wheel | 200mm (Dia.), 160mm (Thickness) |
| Number of Polishing Stations | 2-16 (According to customer requirements) |
| Waxed Way | Solid wax/ Liquid wax |
| Machine Power | Total Power: 46.5KW |
| Power Supply | Three-phase Five Line, 380V±10% 50Hz (According to customer requirements) |
| Machine Size | 3710mm×4500mm×3100mm (L×W×H) |
| Machine Weight | About 5.3KG |
