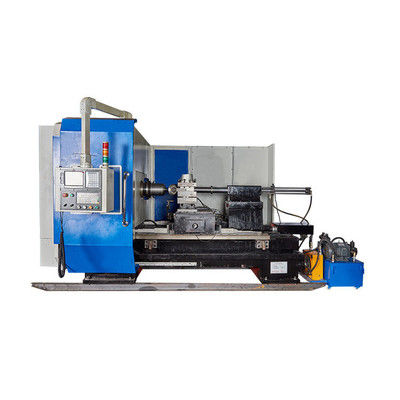

Customized Metal Spinning Machine For Stainless Steel Utensils Cookware metal ware

1 set
MOQ
Negotiable
Price
Customized Metal Spinning Machine For Stainless Steel Utensils Cookware metal ware
Features Gallery Product Description Request A Quote
Features
Specifications
Slide Stroke (mm): 400
Return Force (kN): 2000 KN
Machine Type: Hydraulic Press Machine
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2200*2400*4200mm
Weight (T): 3.5 T
Motor Power (kw): 30 Kw
High Light:

Customized Metal Spinning Machine

,

Stainless Steel Metal Spinning Machine

,

Utensils spinning metal machine

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: YZ28G-350
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

MFF300 spinning machine for stainless steel utensils kitchenware cookware



Product Description:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.



Quick Details:



Advantages:

1. For making utensils, cooking pot, kettle, coffee pot, cakepan, couscous pot

2. Spinning forming from circle or from deep draw body, edge cutting, edge beading, tool polishing, body stripe lathing

3. 51 years machine tool manufacturing experience

4. Stable & heavy, no vibration even without fasten bolt

5. Customized spinning purpose CNC programme

6. Yuken valves, Schneider



Specifications:



Parameters Unit M-CNCXZ800 M-CNCXZ600
Max.dia.of circle MM 800 600
Max.circle thickness of stainless steel MM 0.5-1.2 0.5-1.6
Max.circle thickness of copper and aluminum MM 0.5-3 0.5-5
Max.circle thickness of the mild carbon steel MM 0.5-1.8 0.5-2.5
Max.rotating speed of main spindle rmp 1450 2000
Backstepping baffle stroke MM 300 300
Longitudinal travel of roller wheel MM 380 300
Lateral travel of roller wheel MM 600 600
Max.force of spring guide Kn 30 40
Main motor power Kw 11 15
Motor of hydraulic station Kw 2.5 3.5
Spinning roller stations   4+4 4+4
Machine overall dimension MM 3200*2250*2200 3400*1814*2200
Total weight T 5.2 4.8



Advantages:



Customized Metal Spinning Machine For Stainless Steel Utensils Cookware metal ware 0Customized Metal Spinning Machine For Stainless Steel Utensils Cookware metal ware 1Customized Metal Spinning Machine For Stainless Steel Utensils Cookware metal ware 2Customized Metal Spinning Machine For Stainless Steel Utensils Cookware metal ware 3Customized Metal Spinning Machine For Stainless Steel Utensils Cookware metal ware 4Customized Metal Spinning Machine For Stainless Steel Utensils Cookware metal ware 5
