Product Description:
It is packed with waterproof protective film and protected by bracket or wooden box to ensure that the equipment will not be damaged by external force during transportation, which will affect the appearance and performance of the equipment.
Quick Details:

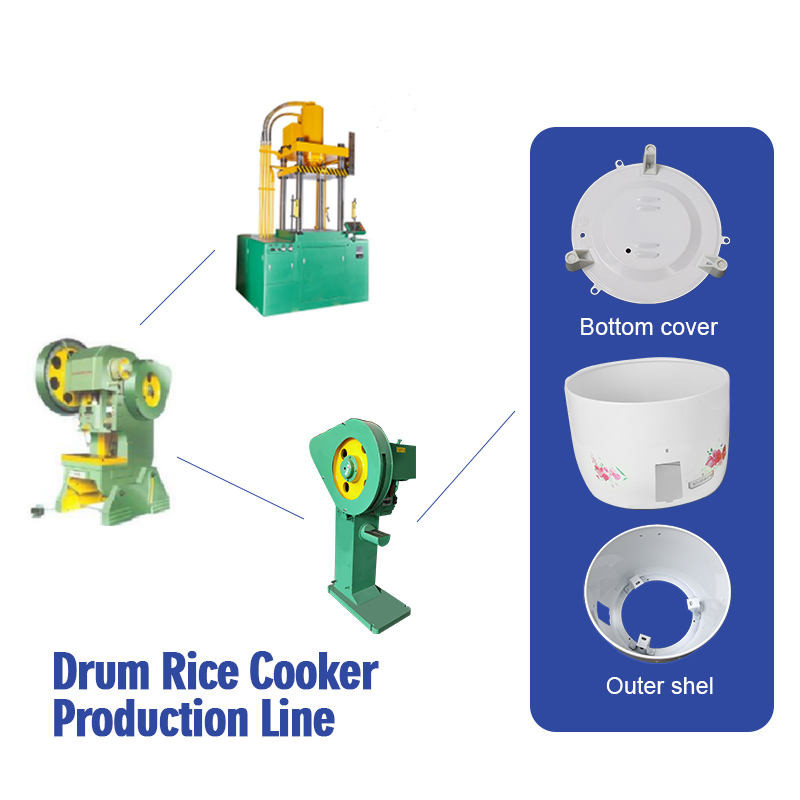

Used for drawing and pressing of aluminum, iron, stainless steel and other metal plates.Especially suitable for kitchen appliances, household appliances and auto parts.Such as electric rice cooker, pressure cooker, stainless steel pot, all kinds of small appliances, shell and other parts of the forming.
Specifications:
| Description | unit | YZ28G-150 | YZ28G-200 | YZ28G-250 | YZ28G-300 | YZ28G-350 | |
| Nominal force | kN | 1000 | 1500 | 1500 | 2000 | 2500 | |
| Hydraulic system rated working pressure | MPa | 20 | 20 | 20 | 25 | 20 | |
| Return nominal force | kN | 110 | 140 | 140 | 180 | 125 | |
| Nominal force of lower cylinder blank holder | kN | 500 | 500 | 1000 | 1000 | 1000 | |
| Lower cylinder liquid maximum working pressure | MPa | 20 | 20 | 26 | 26 | 26 | |
| Nominal force of return cylinder | kN | 30 | 30 | 30 | 30 | 30 | |
| Lower piston maximum stroke | mm | 250 | 300 | 300 | 300 | 300 | |
| Maximum stroke of return cylinder | mm | 200 | 200 | 200 | 200 | 200 | |
| Maximum travel of movable beam | mm | 540 | 550 | 550 | 550 | 600 | |
| Distance from movable beam to work surface | Max | mm | 940 | 950 | 950 | 1000 | 1110 |
| Min | mm | 400 | 400 | 400 | 450 | 510 | |
| Lifting speed of movable beam | No-load downlink | mm/s | 350 | 350 | 350 | 350 | 400 |
| pressurized | mm/s | 41 | 36 | 36 | 32 | 21/35 | |
| return stroke | mm/s | 350 | 350 | 350 | 345 | 400 | |
| Blank holder piston speed | Up | mm/s | 125 | 160 | 115 | 115 | 115 |
| Down | mm/s | Follow beam | Follow beam | Follow beam | Follow beam | Follow beam | |
| Motor power | kW | 31 | 36 | 36 | 49 | 36 | |
| Effective area of worktable (left and right × front and rear) | mm2 | 650×750 | 700×880 | 700×880 | 750×900 | 800×990 | |
