automatic welding stud stud welder welding stud welding machine

Brand Name:	Star Power
Model Number:	YZ28G-350
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	100 Set/Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CU,ISO

Slide Stroke (mm):

400

Return Force (kN):

2000 KN

Machine Type:

Hydraulic Press Machine

System:

Servo

Voltage:

380V/220V Optional

Dimension(L*W*H):

2200*2400*4200mm

Weight (T):

3.5 T

Motor Power (kw):

30 Kw

Packaging Details:

metal frame with film

Highlight:

automatic stud welding machine

kitchen sink stud welder

welding stud machine with warranty

Product Description

automatic welding stud stud welder welding stud welding machine

Product Description:

Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.

Quick Details:

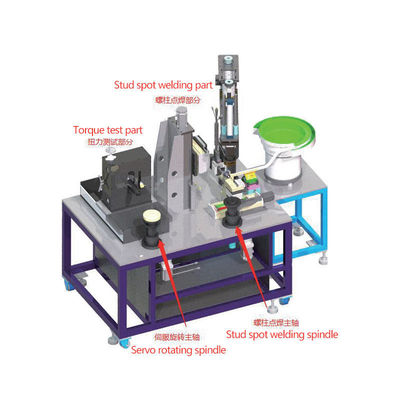

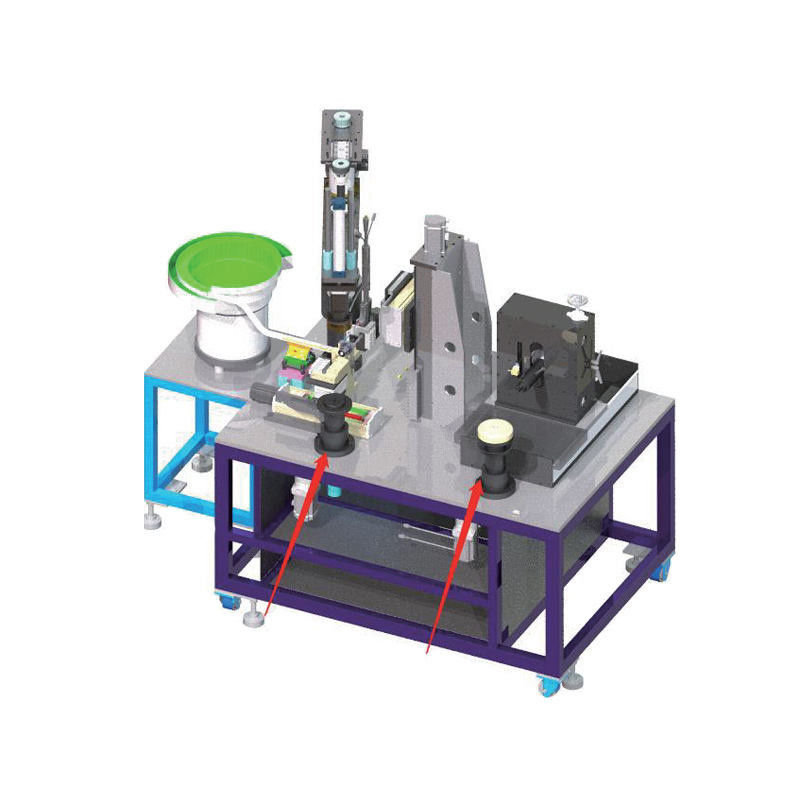

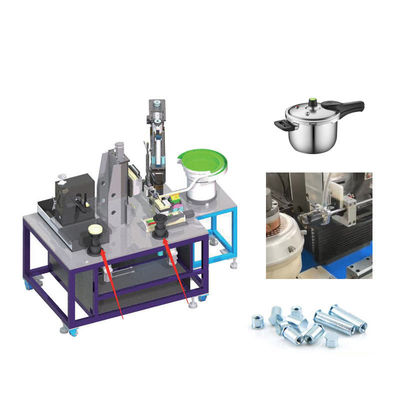

Automatic stud spot welding specification:

a. The stroke of the front and rear modules of the welding torch:250mm b. The stroke of the welding torch lifting shaft :80mm
c. The production range of size:200mm-340mm
d. The production range of height:45mm - 180mm

e.The production range of thickness:2.3mm-5.0mm
f. The spindle die head is rotated by the servo motor, the angle is unlimited
g.Vibration plate diameter 300 ,studs need guide grooves



Torque test part specification:
b. The stroke of the front and rear mechanism of the equipment:200 mm
c. The production range of size:200mm-340mm
d. The production range of height:45mm - 180mm
e. Spindle die head is rotated by servo motor,the angle isunlimited
h. Welding firmness detection : 10Kg.cm2

Specifications:

ITEM	SPECIFICATION	Unit	QUANTITY
Industrial computer	Industrial use, can work 24 hours continuous	Set	1
Handheld box	11 inches	set	1
Motion control card	ADT8940A1	set	1
Stud Welder	BWAM 2W	set	1
Lifting servo motor and drive	0.75KW(break)	set	1
Front and rear servo motors and drives	0.75KW		1
Spindle servo motor and drive	0.75KW		1
Compression cylinder	SC	set	1
Variable frequency vibration plate	Plate:Φ300mm hanging side one piece,direct vibration:one piece	---	---
The electromagnetic valve	4V4-2 10	piece
Lead screw/rail	Customized	set	6
Torque Servo Motor and Drive	Torque test wrench high inertia 4KW server system	set	1
Power cooling system	0.4KW	set	1

Advantages:

automatic welding stud stud welder welding stud welding machine 0
