stud bolt welding machine cookware pan stud machine stud bolt welding

1 set
MOQ
Negotiable
Price
stud bolt welding machine cookware pan stud machine stud bolt welding
Features Gallery Product Description Request A Quote
Features
Specifications
Slide Stroke (mm): 400
Return Force (kN): 2000 KN
Machine Type: Hydraulic Press Machine
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2200*2400*4200mm
Weight (T): 3.5 T
Motor Power (kw): 30 Kw
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Star Power
Certification: CU,ISO
Model Number: YZ28G-350
Payment & Shipping Terms
Packaging Details: metal frame with film
Delivery Time: 1 month
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Product Description

stud bolt welding machine cookware pan stud machine stud bolt welding



Product Description:



Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.



Quick Details:

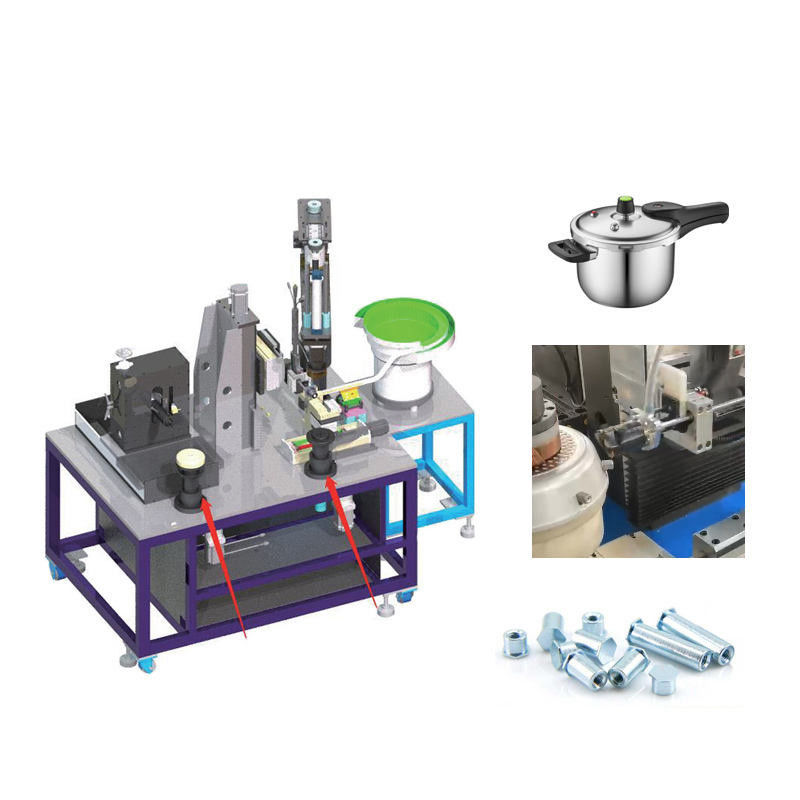

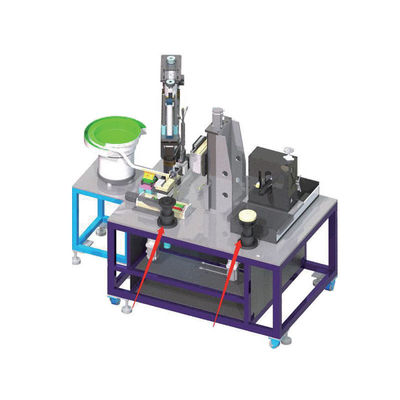

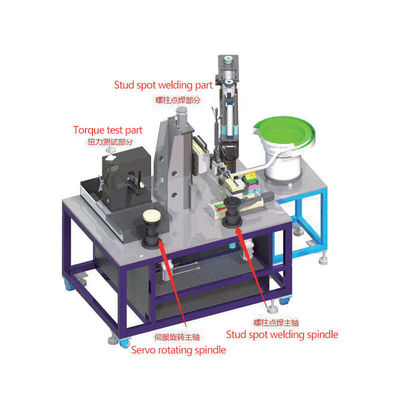

Automatic stud spot welding specification:

a. The stroke of the front and rear modules of the welding torch:250mm
b. The stroke of the welding torch lifting shaft :80mm
c. The production range of size:200mm-340mm
d. The production range of height:45mm - 180mm
e.The production range of thickness:2.3mm-5.0mm
f. The spindle die head is rotated by the servo motor, the angle is unlimited
g.Vibration plate diameter 300 ,studs need guide grooves

Torque test part specification:
b. The stroke of the front and rear mechanism of the equipment:200 mm
c. The production range of size:200mm-340mm
d. The production range of height:45mm - 180mm
e. Spindle die head is rotated by servo motor,the angle isunlimited
h. Welding firmness detection : 10Kg.cm2



Specifications:



ITEM
SPECIFICATION
Unit
QUANTITY
Industrial computer
Industrial use, can work 24 hours continuous
Set
1
Handheld box
11 inches
set
1
Motion control card
ADT8940A1
set
1
Stud Welder
BWAM 2W
set
1
Lifting servo motor and drive
0.75KW(break)
set
1
Front and rear servo motors and drives
0.75KW

1
Spindle servo motor and drive
0.75KW

1
Compression cylinder
SC
set
1
Variable frequency vibration plate
Plate:Φ300mm hanging side one piece,direct vibration:one piece
---
---
The electromagnetic valve
4V4-2 10
piece

Lead screw/rail
Customized
set
6
Torque Servo Motor and Drive
Torque test wrench high inertia 4KW server system
set
1
Power cooling system
0.4KW
set
1



Advantages:





stud bolt welding machine cookware pan stud machine stud bolt welding 0stud bolt welding machine cookware pan stud machine stud bolt welding 1stud bolt welding machine cookware pan stud machine stud bolt welding 2
