Kitchen Sink Machine
Created with Pixso.

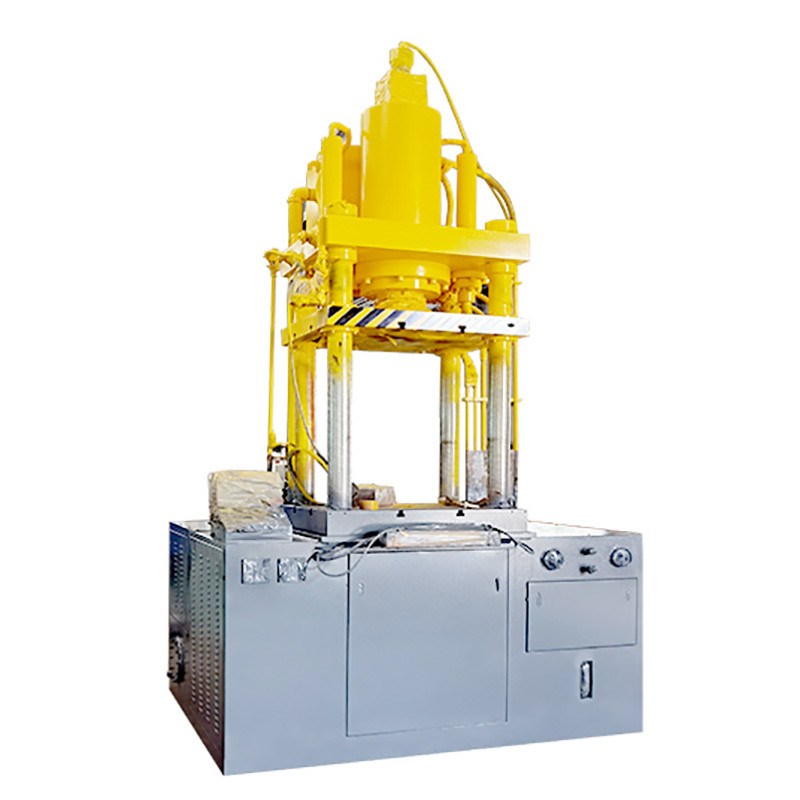

Metal Drawing Hydraulic Pressing Machine For Rice Cooker OEM ODM

Metal Drawing Hydraulic Pressing Machine For Rice Cooker OEM ODM

Metal Drawing Hydraulic Pressing Machine For Rice Cooker OEM ODM

Brand Name: Star Power
Model Number: YZ28G-350
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100 Set/Sets per Month
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CU,ISO
Slide Stroke (mm):
400
Return Force (kN):
2000 KN
Machine Type:
Hydraulic Press Machine
System:
Servo
Voltage:
380V/220V Optional
Dimension(L*W*H):
2200*2400*4200mm
Weight (T):
3.5 T
Motor Power (kw):
30 Kw
Packaging Details:
metal frame with film
Highlight:

Drawing Hydraulic Pressing Machine

,

OEM Hydraulic Pressing Machine

,

ODM Hydraulic Pressing Machine

Product Description

Customized General Metal Drawing And Pressing Hydraulic Press Machine



Product Description:

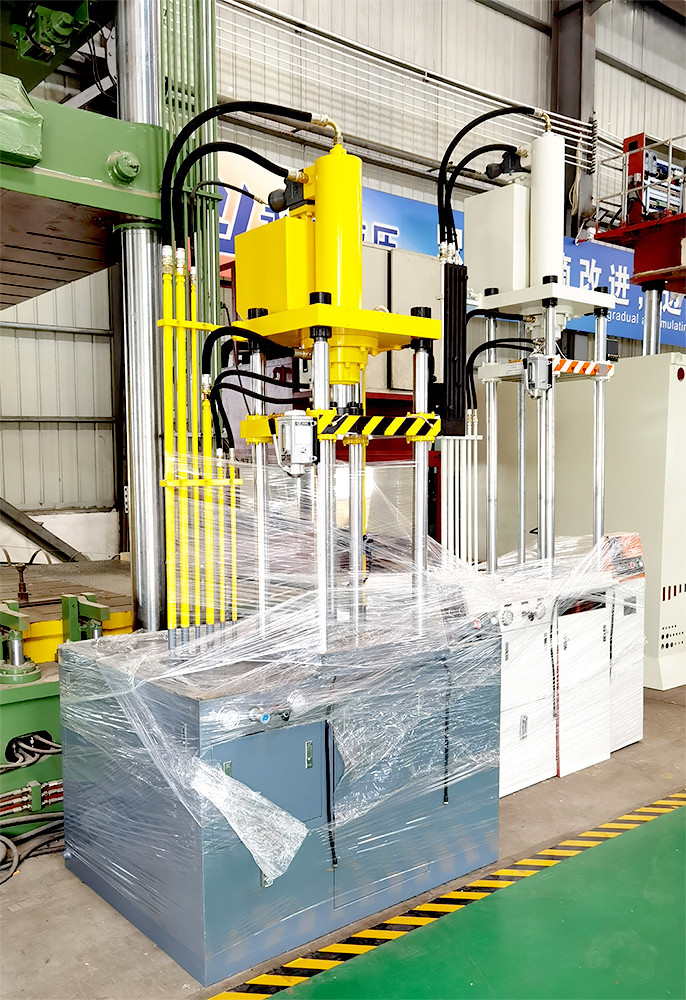

Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.



Quick Details:

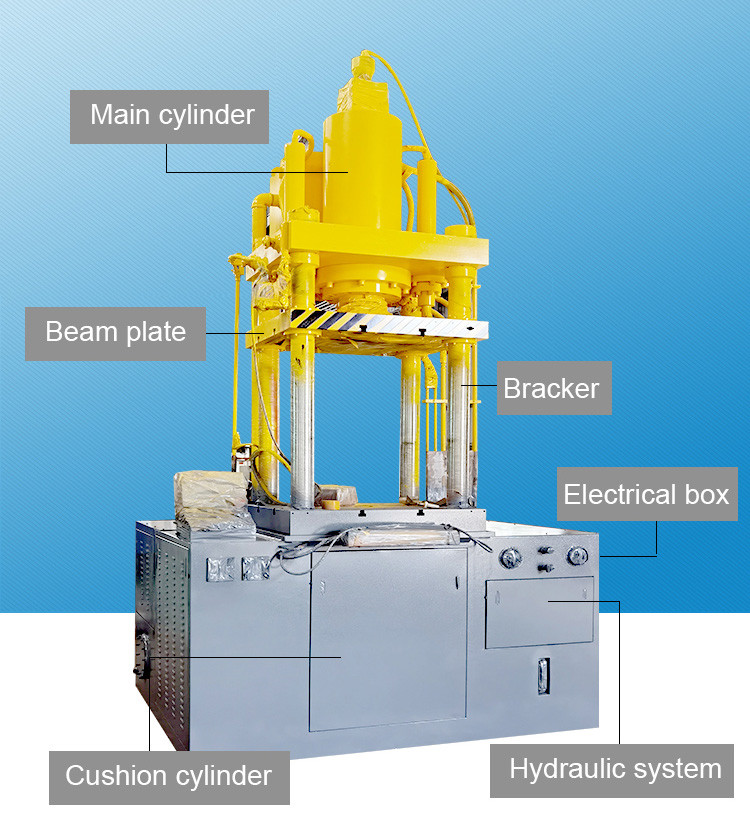

Four-column double action hydraulic press

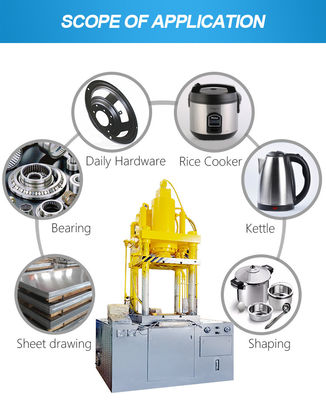

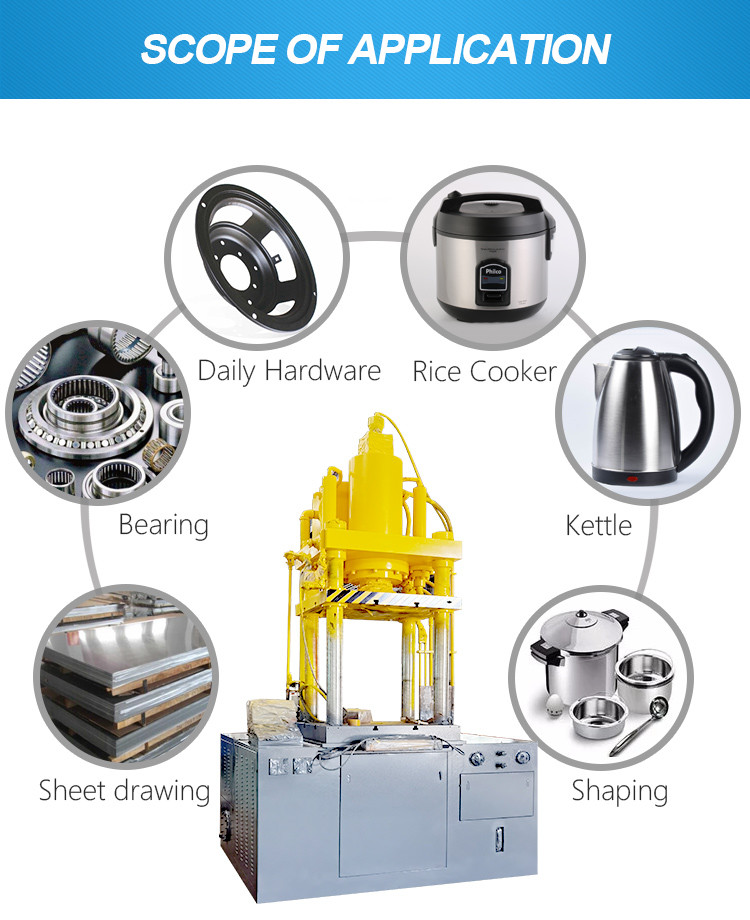

★Four-column double action hydraulic press is mainly applicable to thin sheet drawing, shaping and straightening.

★All primary hydraulic and electrical elements of this machine are international products with famous brand.

★Photocell protection unit is available for setting.



Specifications:

PROJECT
YZ28G-75
YZ28G-100
YZ28G-120
YZ28G-150
YZ28G-200
YZ28G-250
YZ28G-300
YZ28G-350
Main Cylinder Force(KN)
500
650
800
1000
1500
1500
2000
2500
Rating Working Pressure Of Hydraulic System(Mpa)
25
20
20
20
20
20
25
21
Return Nominal Force(KN)
50
60
50
110
140
140
180
180
Crimping Force For downCylinder(KN)
250
350
400
500
500
1000
1000
1000
Maximum Working Pressure Of Downcylinder(Mpa)
16.5
20
23
20
20
26
26
26
Ejector Force(KN)
30
30
30
30
30
30
30
30
Maximum Stroke Of Downcylinder Piston(mm)
220
250
200
250
300
300
300
300
Stroke Of Ejector(mm)
200
230
200
200
200
200
200
200
Maximum Stroke Of Beam Plate(mm)
460
500
400
540
550
550
550
600
Open Height
Max.(mm)
760
850
710
940
950
950
1000
1110
Min.(mm)
300
350
310
400
400
400
450
510
Lifting Speed
Down Speed(mm/s)
225
220
300
330
330
330
330
245
Pressing Speed(mm/s)
15~25
17~25
20~25
19~38
21~33
21~33
20~29
19~33
Up Speed(mm/s)
220
230
270
300
300
300
290
250
Power Of Motor(KW)
7.5
15
15
18.5
30
30
37
37
Dimention Of Working Table(mm²)
500X560
550X600
600X700
650X750
700X880
700X880
750X900
800X990





Advantages:





Metal Drawing Hydraulic Pressing Machine For Rice Cooker OEM ODM 0Metal Drawing Hydraulic Pressing Machine For Rice Cooker OEM ODM 1Metal Drawing Hydraulic Pressing Machine For Rice Cooker OEM ODM 2Metal Drawing Hydraulic Pressing Machine For Rice Cooker OEM ODM 3Metal Drawing Hydraulic Pressing Machine For Rice Cooker OEM ODM 4Metal Drawing Hydraulic Pressing Machine For Rice Cooker OEM ODM 5Metal Drawing Hydraulic Pressing Machine For Rice Cooker OEM ODM 6

Tags:

OEM Kettle Making Machine

ODM Kettle Making Machine

Drawing Hydraulic Pressing Machine
