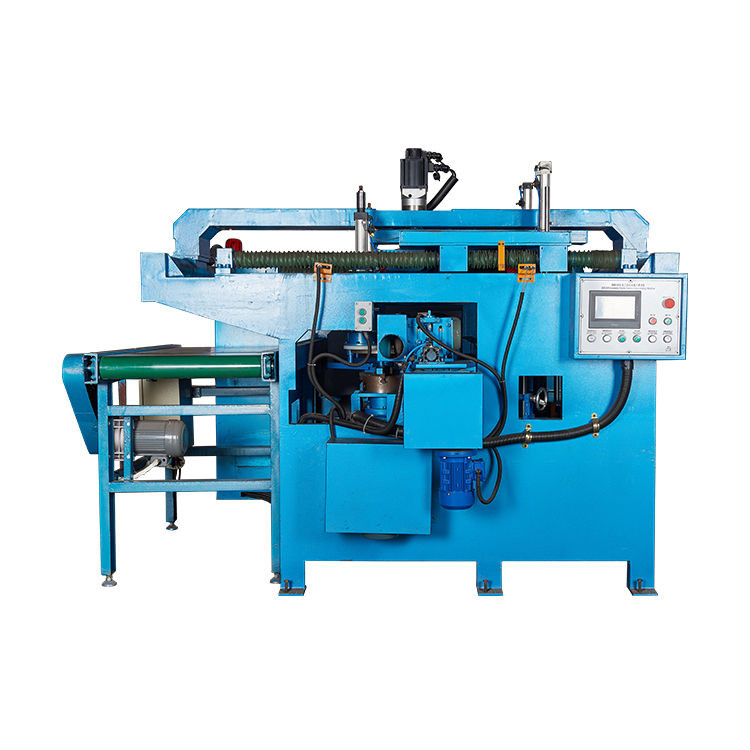

Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:
1. Capacity: max 16pcs/min, about 7600-5000pcs/8hours
2. Control system: Mitsubishi PLC
3. Protect deep drawing die for longer life
4. Less drawing mark reduces polishing cost
5. Increase deep drawing quantity by reduce die polishing frequency
6. Increase polishing quantity while reduce polish cycling time
Specifications:
| Main Technical Parameters | |
| Function | Circle edge deburring |
| Size of circles | ≤Φ(200-600)mm x 1.5mm(Dia. x Thickness) |
| Size of emery wheel | ≤Φ200mm x 30mm(Dia. x H) |
| Motor power | Emery wheel motor: 1.1kw x 2 |
| Workpiece motor: 1.1kw x 2 | |
| Feeding reciprocating motor: 1.5kw x 1 | |
| Conveyor motor: 0.4kw x 1 | |
| Workpiece holding | Vacuum adsorption |
| Dimension | 2250mm x 2200mm x 1630mm(L x W x H) |
| Weight | About 1.3T |
