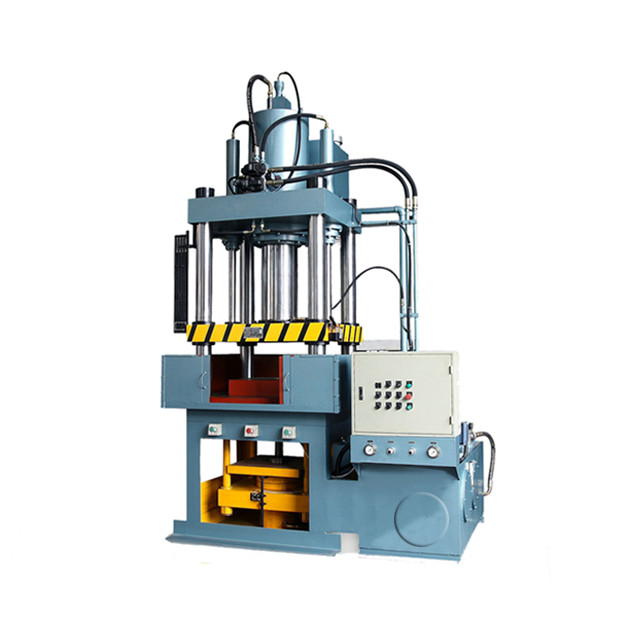

Hydraulic Press Water Bulging Machine For Stainless Steel Cookware metal ware

Brand Name:	Star Power
Model Number:	YZ28G-350
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	100 Set/Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CU,ISO

Slide Stroke (mm):

400

Return Force (kN):

2000 KN

Machine Type:

Hydraulic Press Machine

System:

Servo

Voltage:

380V/220V Optional

Dimension(L*W*H):

2200*2400*4200mm

Weight (T):

3.5 T

Motor Power (kw):

30 Kw

Packaging Details:

metal frame with film

Highlight:

Hydraulic Water Bulging Machine

Cookware Water Bulging Machine

Stainless Steel Water Bulging Machine

Product Description

Hydraulic Press Water Bulging Machine For Stainless Steel Cookware metal ware

Product Description:

Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.

Quick Details:

Capacity:1100pcs/8 hours

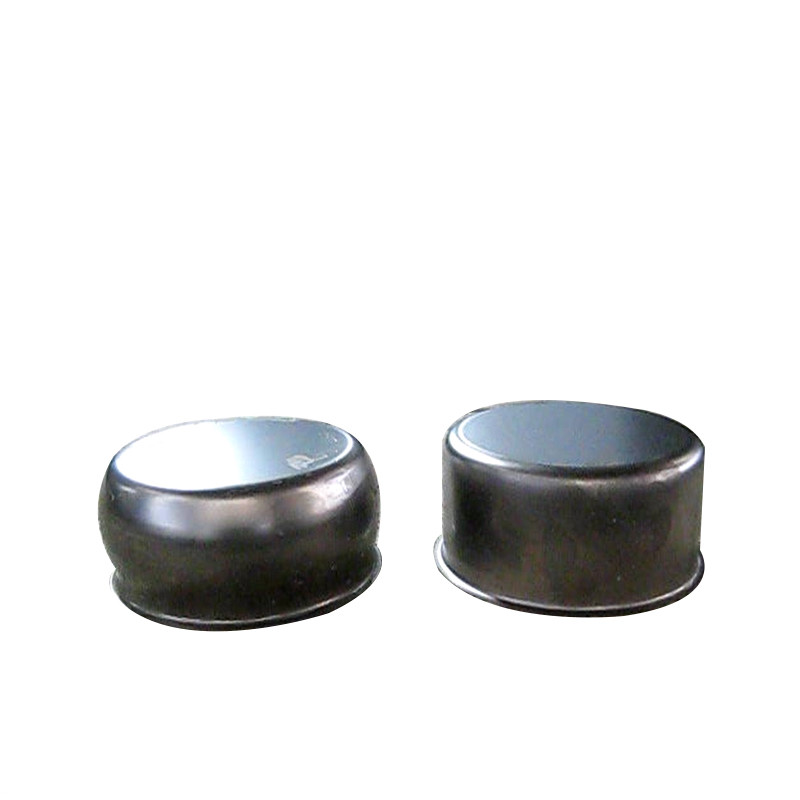

Suitable to bulge cooking pot
coffee pot,kettle,samovar and flask
Finish: belly forming or ridge
design forminig

Specifications:

Parameter	UNIT	SG-150	SG-250	SG-500
Max mould clamping force	KN	1500	2500	5000
Max water bulge pressure	kg/cm	1500	1500	1500
Max wayer bulge thickness(ss)	mm	2	2	2
Products top diameter	mm	Φ70-120	Φ70-200	Φ70-350
Available bulge diameter	mm	Φ200	Φ300	Φ380
Available bulge height	mm	280	300	300
Average production capacity	pc/min	4	4	4
Products bulge rate according to the bulge area		20-50%	20-50%	20-25%
bulge medium(water emulsion water)		20%:80%	20%:80%	10%:90%
Max mould clamping stroke (customized,could be 900mm for flask)	mm	560	600	600
Effective area of working table: Left-right(in column) x front-back(to edge	mm	750*750	800*990	800*900
Motor	kw	22	22	22
Dimension(L-R x F-Bx H)	mm	183015503360	200017002450	210017303700
Weight	ton	5	7	9

Advantages:

Hydraulic Press Water Bulging Machine For Stainless Steel Cookware metal ware 0
