Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:
machine for metal pot
Advantage:
Make sun ray finish on straight,tapper,belly,curved shape round items

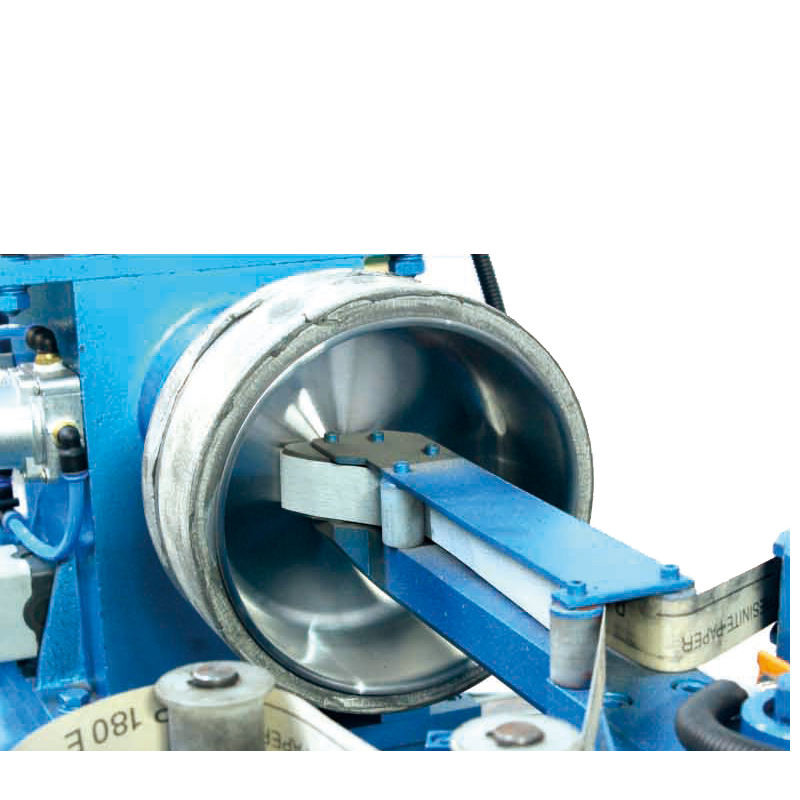

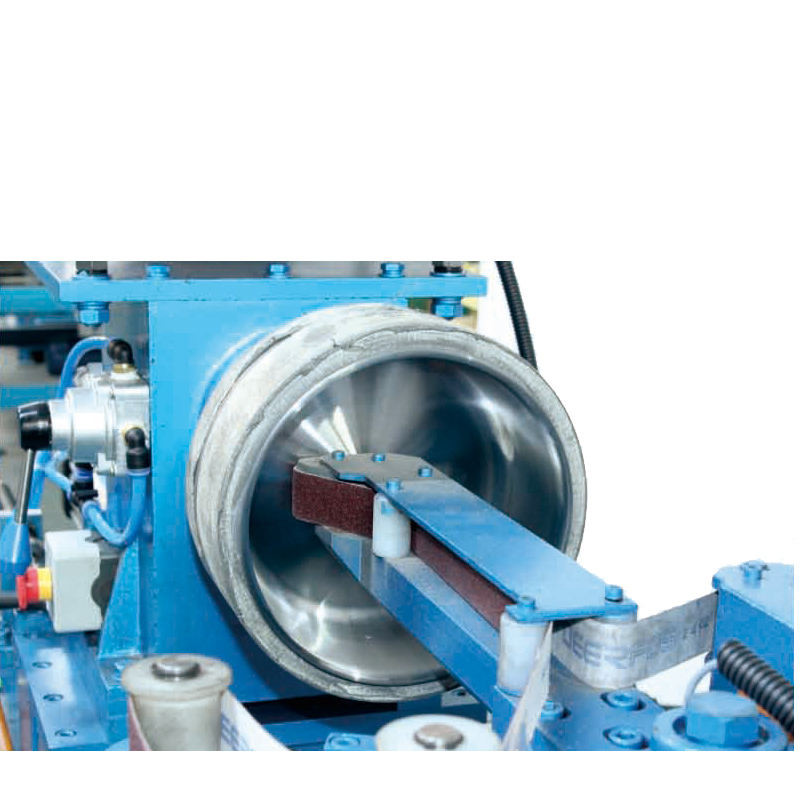

Sand inside bottom,wall & upper lip or outside low lip,wall &bottom
1300--1500piece/8hours
Contorl system:PLC(Xinjie)
Main electric components:Elco,Delixi
Servo motor: INVT
Specifications:
| Function | Metalware inner or outer sun ray finish sanding |
| Size of workpiece | Pot320mmx300mmDiaxH |
| Size of abrasive belt | 50m33mmLW |
| Motor power | Workpiece motor:4kw x 1 Sanding motor:1.5kw 2 Used sanding belt re-scroll motor0.18kw x 2 |
| Rotating speed | 70-1450r/min(Adjustable) |
| Workpiece holding | Vacuum adsorption |
| Dimension | 2600x2000x1450mm(DiaH) |
| Weight | About 1.7T |
Advantages:
