Product Description:
Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.
Quick Details:
1. Make finish on straight, tapper round items
2. Sand inside bottom, wall & upper lip or outside low lip, wall & bottom
3. Capacity: 1300-1500pcs final finish products per 8 hours(200 x 100mm, Dia. x H)
4. Control system: PLC(Xinjie)
Main electric components: Schneider, Elco, Delixi
Servo motor: INVT

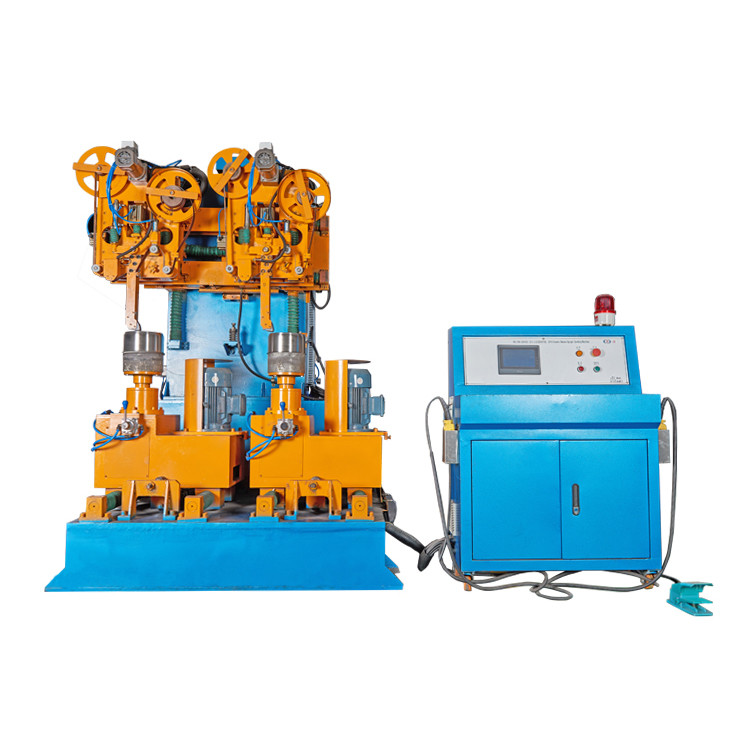

Specifications:
| Main Technical Parameters | |
| Function | Inner or outer finish sanding for metal ware |
| Size of workpiece | Φ(100-400)mm x (80-350)mm(Dia. x H) |
| Size of abrasive belt | ≤50mx33mm(L x W) |
| Motor power | Workpiece motor: 4kw x 2 |
| Sanding servo motor: 3kw x 1, 1.5kw x 1 | |
| Used sanding belt re-scroll motor : 0.18kw x 2 | |
| rotating speed | 70-1450 RPM (Adjustable) |
| Workpiece holding | Vacuum adsorption |
| Dimension | 2400mm x 1100mm x 1600mm(L x W x H) |
| Weight | About 2T |
Advantages:
